Turbo core high speed dynamic balancing machine
Specifications
turbocharger balancing machine
turbo balancing machine
balancing machine for turbochargers
balancing machine for turbos
Range of Application
Measurements in pk-G’s – corresponds to manufacturers data.
Stored balance data - Oil temperature auto-control system. Oil temperature is controlled precisely (i.e. Oil temperature auto-control system controls the oiltemperature at 35±2°C.) Therefore, measurement is more precise and well repeated.
Short testing time. It only takes five seconds to finish the whole-speed balancing test.

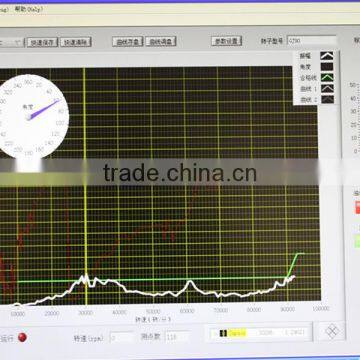

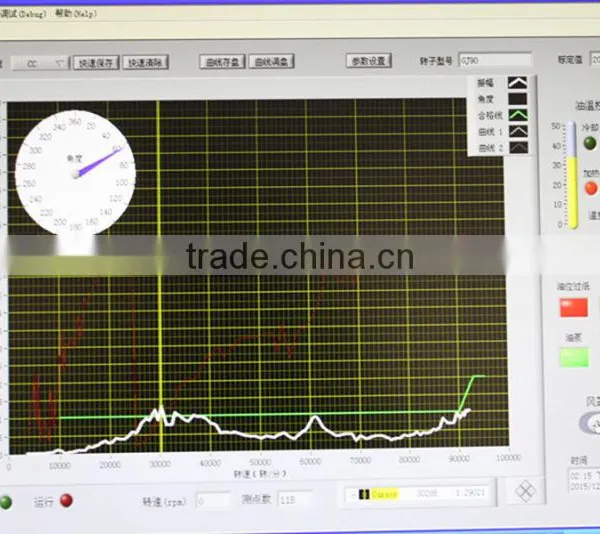

Printer Output- customer printout proves the quality of turbo rebuild - Measurement parameters are displayed directly on the computer screen and easy to understand. The vibration acceleration, rotation speed, angle, oil temperature, oil pressure and etc. are displayed one-to-one on the computer screen. The data can be saved and printed.
The dynamic balancing of rotation components will directly affect the reliability of turbocharger, as the rotation speed of turbocharger is from 20,000 rpm up to about 200,000 rpm.
Our core balancing machine is suitable for small and medium-sized turbocharger. For accomplished installed turbocharger, when close to the real working rotation speed, the dynamic imbalance of the rotation components can be eliminated effectively by core balancing machine.

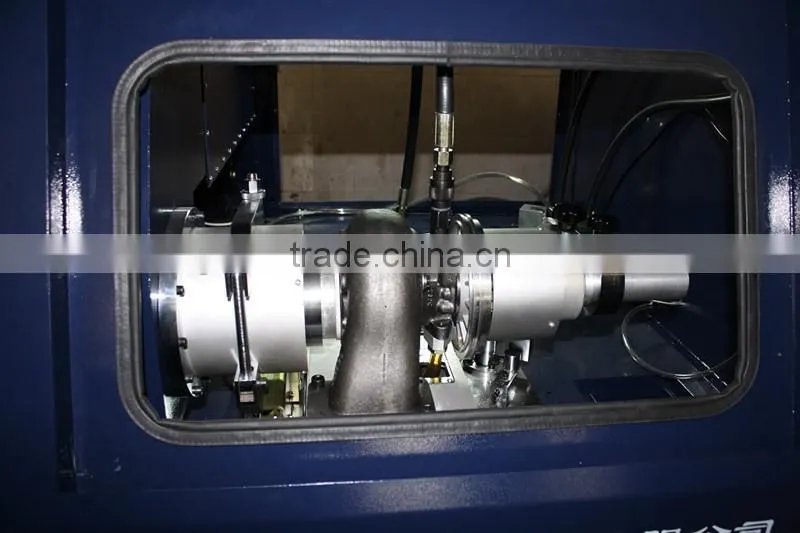

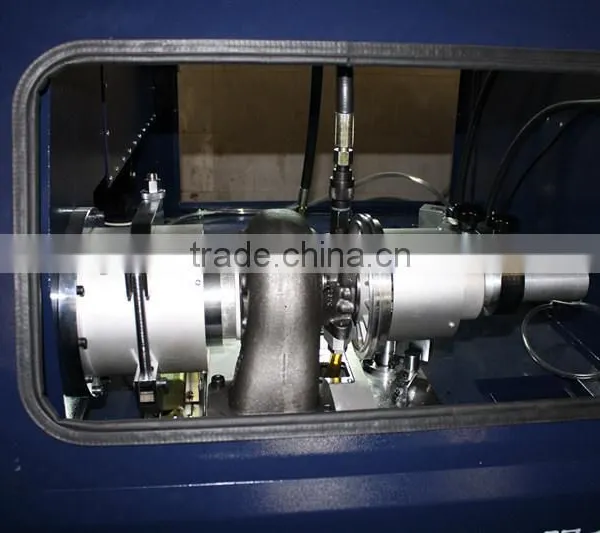

The original turbine housings are used as driving parts. The driving force exerted on the turbine is exactly the same as the real working condition, thus the measurement of vibration is more precise.
Production Parameters
| Model | TZQ-08 |
| Rotor range | K03-GJ90 |
| Maximum diameter | Φ120 (mm) |
| Air pressure | 1 (Mpa) |
| Oil pressure | 0.2~0.5 (Mpa) |
| Base length | 2.4 m |
| Balancing speed | 6000~300000 (rpm) |
| Vibration measure range | 10 (g) |

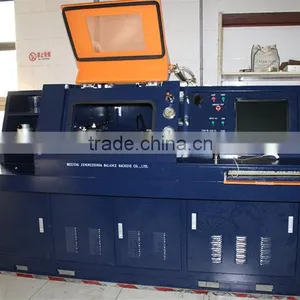

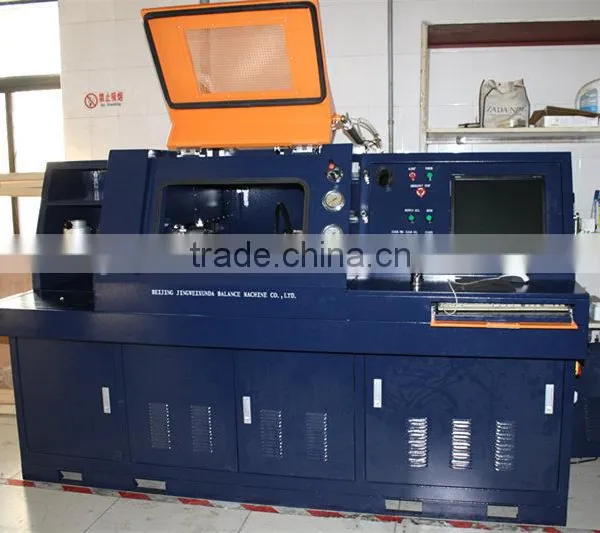

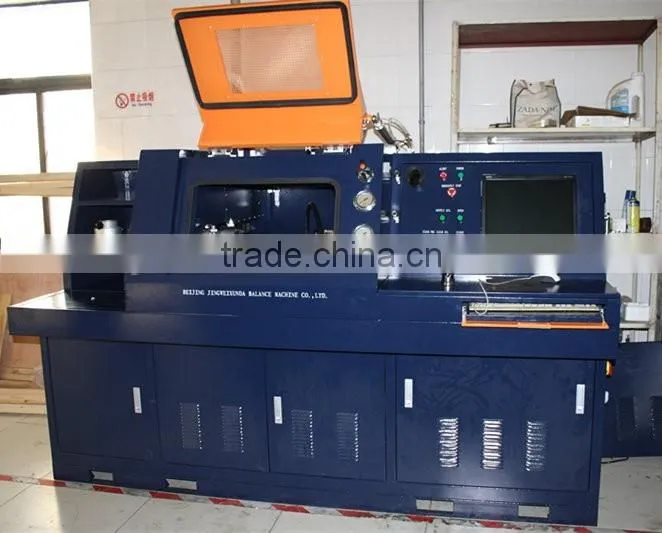

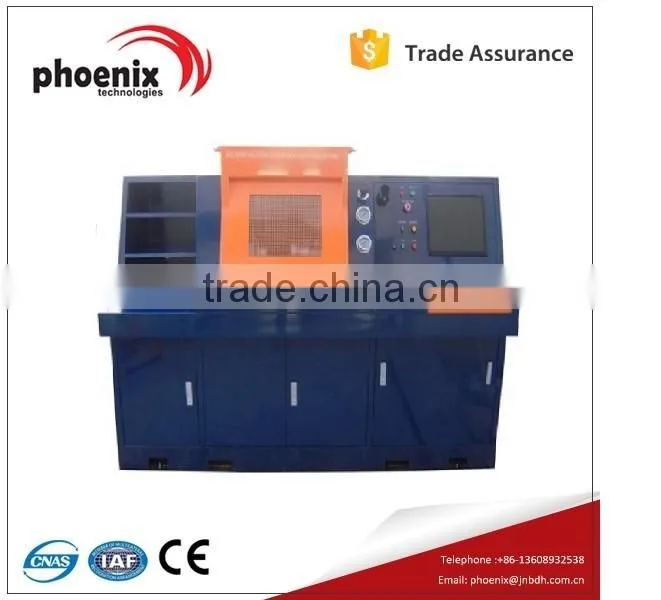

high speed dynamic balancing machine pictures
About Us
1, JINAN BODIHAO MECHANICAL EQUIPMENT CO.,LTD. is a professional manufacturer of dynamic balancing machine, which is high-tech technology enterprises of Optical- electro-mechanical Integration.
2, There are ten series and more than 40 models of balancing machines, including belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
3, Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV, CE Evaluation of EU.
Warranty period
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
