Home > Products > New Products > Cast Steel Globe Valve

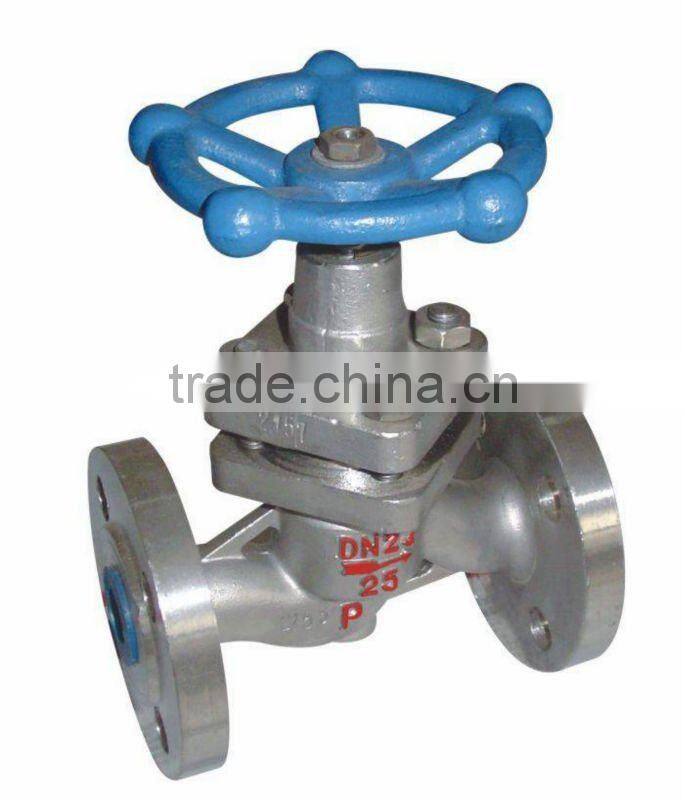

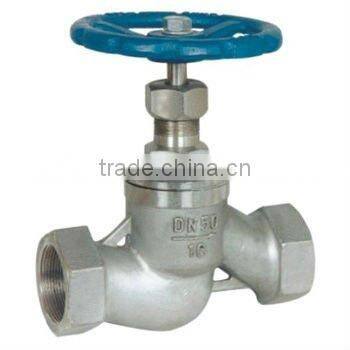

Cast Steel Globe Valve
Negotiable
/ Piece
1 Piece(Min.Order)
- 1000000 Piece / Pieces per Month
- NINGBO
- T/T
You May Like
Product Details
Standard or Nonstandard: | Standard | Structure: | Other, Globe Valve | Pressure: | High Pressure |
Power: | Hydraulic | Material: | Forged | Temperature of Media: | High Temperature |
Media: | Water | Place of Origin: | Zhejiang, China | Model Number: | Cast Steel Globe Valve |
Brand Name: | WD |
Product Description
Specifications
Cast Steel Globe Valve1Size:2"-14"
2Working pressure:Class 150-900 LB
3Design standard:AMSE B16.10
Cast Steel Globe Valve
Characteristics of Class150-900 Cast Steel Globe Valve
1.Design and manufacture of product according to advanced standard such as ANSI B16.34, BS 1873 etc.
2. Configuration of body as elegant bucket or streamline, through-way port with small liquid resistance.
3. Blow-down part (disc) and face of seat utilize awl seal, with small strength to blow down, scour resistance and seal reliable.
4. Exchangable seat, random combine the material of surface of blow down part to meet the requirement of work status, prolong
service life.
5. Big size, high pressure globe valve accordance with need of blow up and down strength, driving style of stem use lift style, fix rolling
bearing or use knock style hand wheel to reduce blow-down or blow-up strength.
6. Material of main body, material of trims, packing, washer, material of fastener can logically combine according to customers
requirement or actual work status.
2. Configuration of body as elegant bucket or streamline, through-way port with small liquid resistance.
3. Blow-down part (disc) and face of seat utilize awl seal, with small strength to blow down, scour resistance and seal reliable.
4. Exchangable seat, random combine the material of surface of blow down part to meet the requirement of work status, prolong
service life.
5. Big size, high pressure globe valve accordance with need of blow up and down strength, driving style of stem use lift style, fix rolling
bearing or use knock style hand wheel to reduce blow-down or blow-up strength.
6. Material of main body, material of trims, packing, washer, material of fastener can logically combine according to customers
requirement or actual work status.
STD
Design And Manufacture | Face to Face/End to end | Flange Dimension | Butt welding Dimension | Pressure &Temperature | lnspection & Test |
ASME B16.34 | ASME B16.10 | ASME B16.5 | ASTM B16.25 | ASME B16.34 | APl 598 |
Pressure Test
Nominal Pressure | Shell Test | Water Seal Test | Air Seal Test | |||
MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | |
150 | 3.1 | 450 | 2.2 | 315 | 0.5-0.7 | 60-100 |
300 | 7.8 | 1125 | 5.6 | 815 | ||
600 | 15.3 | 2225 | 11.2 | 1630 | ||
900 | 23.1 | 3350 | 16.8 | 2440 | ||
1500 | 38.4 | 5575 | 28.1 | 4080 | ||
2500 | 64.6 | 9367 | 47.4 | 6873 |
Main Part Material
Body | ASTM A216 WCB | ||||
Stem | F6a | F304 | F316 | Monel | F304 |
Disc face | 13Cr 13Cr STL | 304 STL | 316 STL | Momel | 304 304 STL |
Seat ring face | 13Cr STL STL | 304 STL | 316 STL | Momel | 304 STL STL |
Body | ASTM A351 CF3 | ASTM A351 CF8M | ASTM A351 CF3M |
Stem | F304L | F316 | F316L |
Disc face | 304L 304L STL | 316 316L 316L | 316 316L STL |
Seat ring face | 304L STL STL | 316 STL 316L | 316L STL STL |
