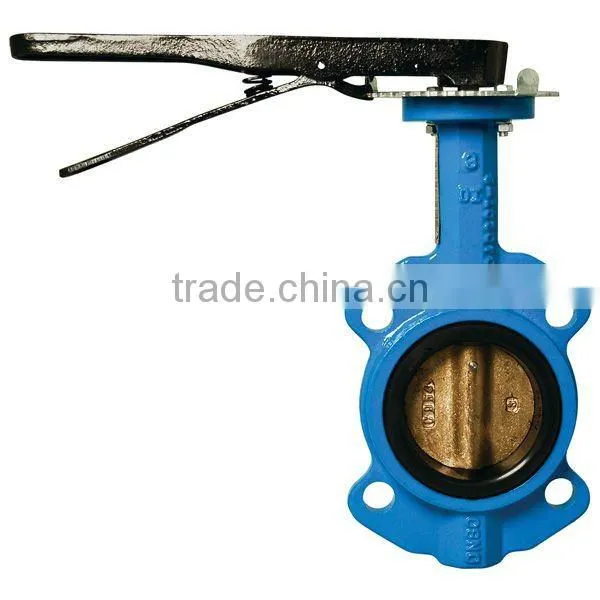

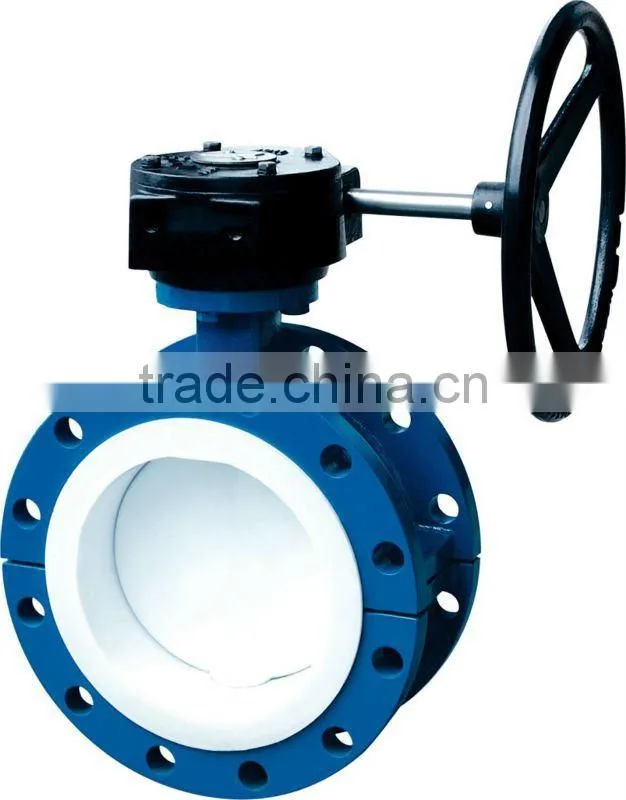

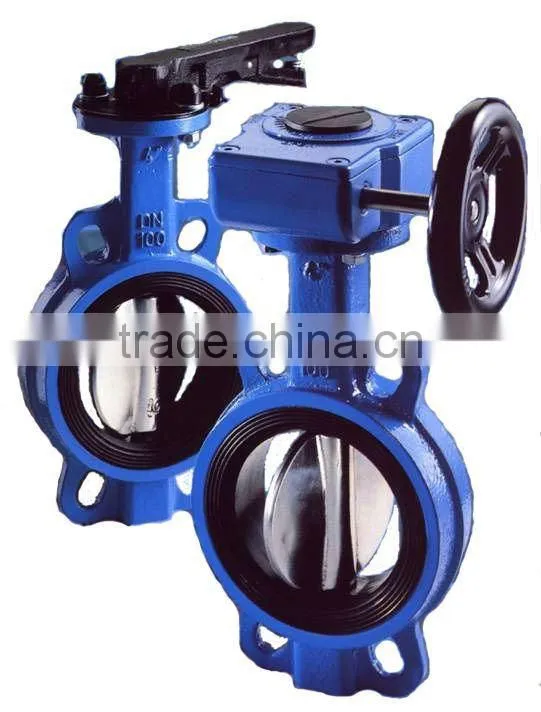

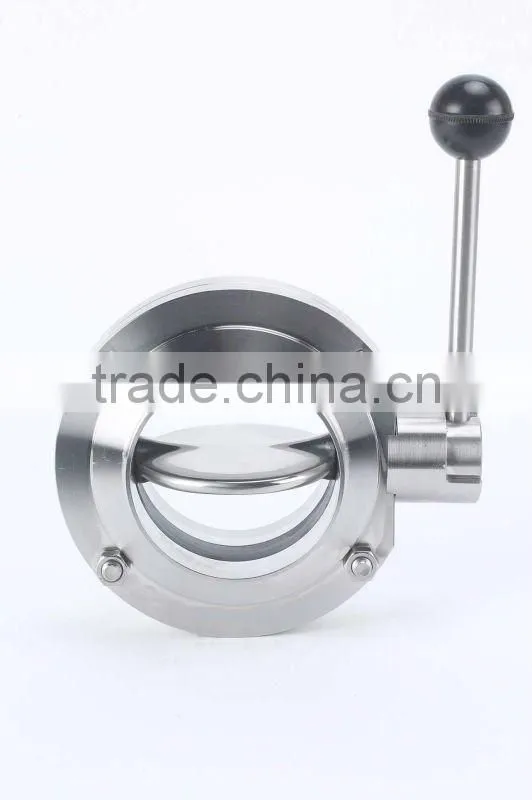

Triple Eccentric Butterfly Valve

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Butterfly

Pressure:

Low Pressure

Yongjia Welldone Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Butterfly

Pressure Low Pressure

Power Manual

Material Casting

Temperature of Media Normal Temperature

Media Water

Place of Origin Zhejiang, China

Model Number Triple Eccentric Butterfly Valve

Brand Name WD

Specifications

Triple Eccentric Butterfly Valve
SizeRange:DN25~DN3500
Class Range:150Lb-300Lb
Connection size:flange,wafer
material:CS

Tripe Eccentric Butterfly Valve

Three-dimensional incline taper airproof seat 900 openinger cleaning

Triple eccentric, Bereled wedge disc small friction and torque, self-clean

Manual, electric, pneumatic and gear operation etc.

A216WCB,A351 CF8,A351CF8M

A217LCB,A351 CF3,A351CF3M

Technical Requirements

1. Design and manufacture comply to MSS SP 67-1997

2. Inspect and test comply to API 598

3. Face to face dimension complies to BSS5155

4. Flanges comply to API 605

5. Pressure-temperature grade complies to ANSI B6.34

Material Specification

No.	Part Name	Material
No.	Part Name	A216 WCB	A217 LCB	A351 CF8	A351 CF8M	A351 CF3M
1	Nether cover	A105	A105	A182 F304	A182 F316	A182 F316L
2	Bearing	A182 F6a	A182 F304	A182 F304	A182 F316	A182 F316L
3	Wrash	F304+Flexible graphite
4	Body	A216 WCB	A217 LCB	A351 CF8	A351 CF8M	A351 CF3M
5	Nut	A194 2H	A194 4	A194 8	A194 8M	A194 8M
6	Bolt	A193 B7	A193 B16	A193 B8	A193 B8M	A193 B8M
7	Gland	A182 F410	A182 F304	A182 F304	A182 F316	A182 F316L
12	Key	A194 2H
13	Gear action	Nodular cast iron
14	Yoke	A216 WCB		A351 CF8
15	Shaft packing	Flexible graphite
16	Bearing	B148/SF-1/17-7PH
17	Tailpiece	A216 WCB	A217 LCB	A351 CF8	A351 CF8M	A351 CF3M
18	Seal seat	Flexible graphite		PTFE
20	Pin	A276 316	A276 316	A276 316	A276 316	A276 316
21	Butterfly board	A351 CF8M	A351 CF8M	A351 CF8M	A351 CF8M	A351 CF3M
22	Shaft	A276 316	A276 316	A276 316	A276 316	A276 316L
