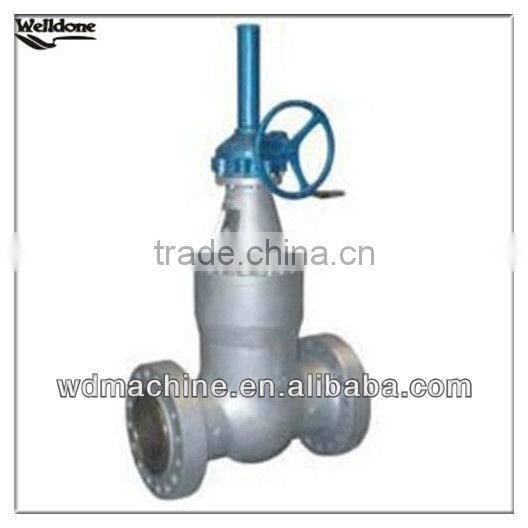

Class 600-2500 Pressure Seal Gate Valve
- 1000000 Piece / Pieces per Month
- NINGBO
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Medium Pressure |
Power: | Manual | Material: | Forged | Temperature of Media: | Normal Temperature |
Media: | Water | Place of Origin: | Zhejiang, China | Brand Name: | WD |
Product Description
Specifications
Class 600-2500 Pressure Seal Gate ValveSpecifications
Pressure Seal Gate Valve
1. Size: 2"~60"
2. Class: 600~2500Lb
3. Design: ASME B16.34/API 600
4. Material: WCB, LCB, CF8, CF8M
Class 600~2500 pressure seal gate valve
OS&Y, Rising stem, Flexible wedge
Pressure seat Bonnet, Threaded or welded seat ring
ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34, API600, API6D, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598, API6D
A. Back up ring: Absors thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing.
NO. | Part name | Material |
23 | Grease nipple | Brass |
22 | Grub screw | Carbon steel |
21 | Hand wheel nut | Carbon steel |
20 | Hand wheel | Malleable lron /cast steel/ductile lron/fabricated steel |
19 | Yoke nut | Carbon steel/SS |
18 | Eye bolt and nut | A 193 B7/A194 2H~A193 B8/A194 8 |
17 | Pin | Carbon steel/stainless steel |
16 | Stem Nut | A 439-D2/cu-alloy |
15 | Gland flange | Carbon steel/equivalent to body material |
14 | Gland | Stain less steel |
13 | Gland bush | See body material |
12 | Back seat | |
11 | Stem | |
10 | Seat ring | |
09 | Wedge |
