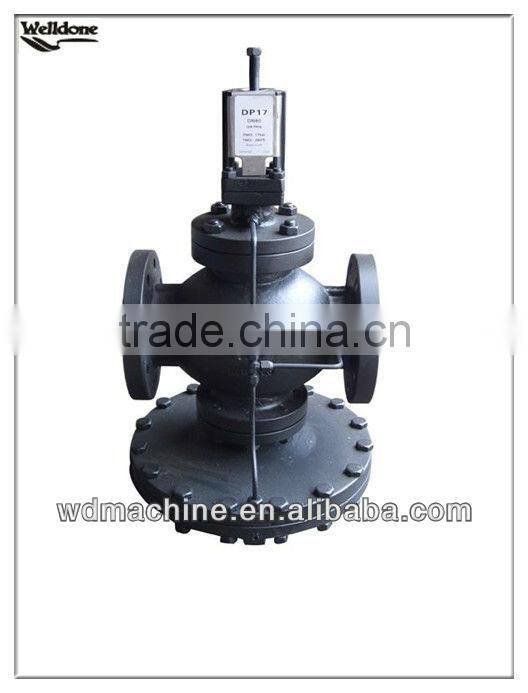

Pilot Operated Pressure Reducing Valve DP17
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pressure Reducing
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Motor-driven Gate Valve Pn16, Large Gate ValveNegotiableMOQ: 1 Piece -
Wafer Butterfly Check ValveNegotiableMOQ: 1 Piece
-
High Quality Brass Check Valve With FilterNegotiableMOQ: 1 Piece
-
Pressure Safety ValveUS$ 1 - 1,000MOQ: 1 Piece
-
Spring Loaded Low Lift Type With Lever Safety ValveNegotiableMOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Pressure Reducing
Pressure
Medium Pressure
Power
Pneumatic
Material
Forged
Temperature of Media
Medium Temperature
Media
Water
Place of Origin
Zhejiang, China
Brand Name
WD
Specifications

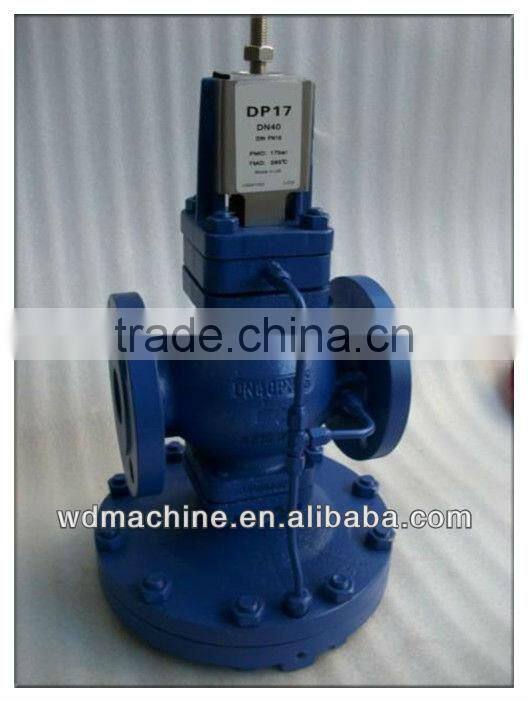

Pilot Operated Pressure Reducing Valve DP17

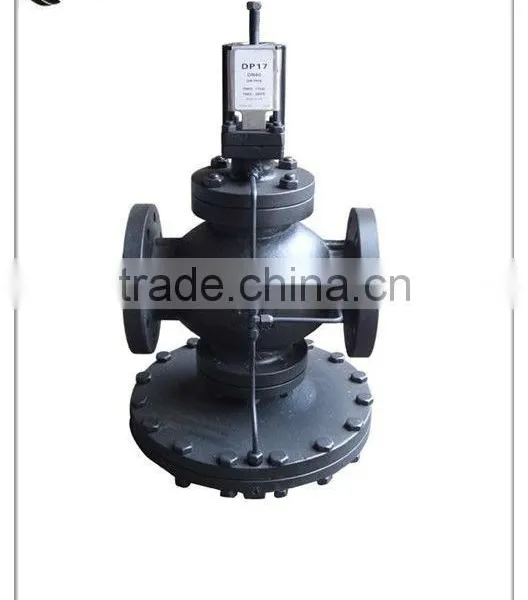

Pilot Operated Pressure Reducing Valve DP17
Structural characteristic & Purpose
This reducing valve is the new type pilot extra-huge membrane pressure reducing valve developed by our company. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.
This reducing valve is the new type pilot extra-huge membrane pressure reducing valve developed by our company. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.
Main Technical Parameters And Indexes Of Performance
Nominal pressure |
PN25 |
Maximum design pressure(PMA) |
25bar g @ 120°C |
Maximum design temperature(TMA) |
232°C @ 21bar g |
Minimum design temperature(TMI) |
-10°C |
Maximum upstream pressure for saturated steam service(PMO) |
17bar g |
Maximum operating temperature(TMO) |
232°C @ 21bar g |
Minimum operating temperature(TMIO) |
0°C |
Maximum differential pressure( Δ PMX ) |
17bar |
Maximum cold hydraulic test pressure |
38bar g |
Material Of Main Component
Name Of Component |
Material Of Component |
Valve body, valve cover |
WCB |
Valve seat |
2Cr13 |
valve flap |
2Cr13 |
Valve rod |
2Cr13 |
Membrane |
Brass |
Adjusting spring |
60Si2Mn |
