Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > High Hardness Automatic Oil Nozzle

High Hardness Automatic Oil Nozzle

Name: High Hardness Automatic Oil Nozzle
Brand: Ferre
SKU: 140861180
Availability: InStock

High Hardness Automatic Oil Nozzle thumbnail-1

High Hardness Automatic Oil Nozzle photo-1

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

Ferre

Model Number:

Various dimensions available

Contact Supplier Request Quote Chat Now

Zhengtong Special Material Factory Hi&New Tech Zone Chengdu

Payment & Shipping

Payment Methods:

Port of Shipment:

Any ports in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name Ferre

Model Number Various dimensions available

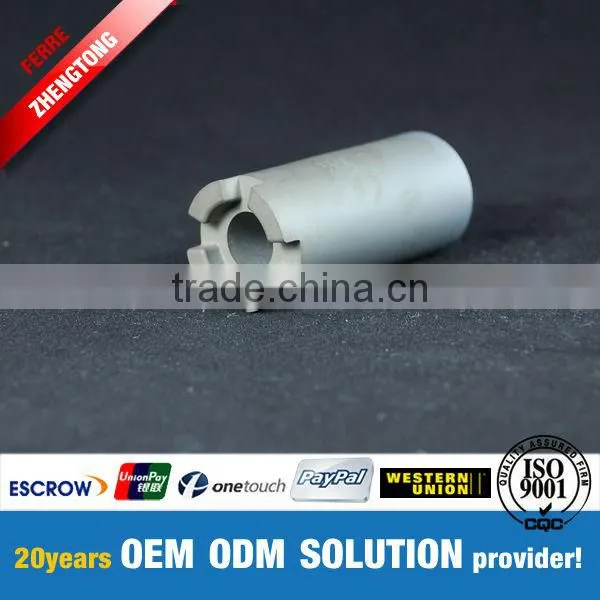

High Hardness Automatic Oil Nozzle

Automatic Oil Nozzle Description:

Slurry nozzles or mud nozzles are widely applied in the field of oil industry.As an

essential part of oil and gas drilling.,mud nozzles play a key role to flow velocity

and pressure. It’s important that nozzles fit well and are arranged for maximum

flow benefits. Zhengtong’s mud nozzles are manufactured in a variety of styles,

including threaded, standard, and extended, so they match all bit designs.

Automatic Oil Nozzle Grade Recommended:

Automatic Oil Nozzle Specification:

Automatic Oil Nozzle Display:

Automatic Oil Nozzle Application Field:

Q:What is cemented carbide ?

A: Cemented carbide is a hard material used in machining tough materials such as carbon steel or

stainless, as well as in situations where other tools would wear away, such as high-quantity production

runs. Most of the time, carbide will leave a better finish on the part, and allow faster machining. Carbide

tools can also withstand higher temperatures than standard high speed steel tools.

Q:What are the key properties of cemented carbides I should be concerned with when selecting a grade for my application?

A: The key properties of cemented carbides that define their performance level for different applications

include abrasion resistance (directly related to the hardness of the grade), fracture strength, and fracture

toughness. In general, the abrasion resistance or hardness of any grade is inversely proportional to its

fracture toughness. Very often grade selection involves finding the best compromise between abrasion

resistance and toughness. In some instances strength and corrosion resistance can be important

factors in the grade selection process.

Q: Which properties are important in metal cutting applications?

A: Depending upon the type of metalcutting operation (turning, milling, drilling, etc.), different combinations

of properties is needed in order to obtain optimum results. For example, in turning and drilling applications

the cutting tool is in continuous contact with the workpiece. Hence, for these applications, abrasion

resistance and strength are the most important properties to consider. However, in operations such as

milling, which invariably involve interrupted cutting, and hence high impact forces, toughness can be an

important factor. Grades employed for metalcutting applications are usually based on fine to medium

hard phase grain sizes (0.5 to 1.5 mm) and low to medium Co contents (6 to 15 wt.%).

Q: Which grades are useful in metal forming applications?

A: In contrast to metalcutting (where abrasion resistance and strength are of paramount importance),

cemented carbides used in metalforming applications will invariably be subject to high impact and

shock forces. Hence, grades used for metalforming applications must possess high toughness

levels with adequate abrasion resistance and strength. Grades employed for metalforming applications

are typically based on coarse grain sizes (3 to 8 mm) and high binder contents (15 to 30 wt. %).

Q: Which grades are useful in earth drilling or boring applications?

A: In many respects the characteristics of the grades employed for earth drilling and boring represent a

compromise between the characteristics that are important for metalcutting and those that are important

for metalforming applications. Grades for earth drilling and boring must possess the highest toughness

levels for any given abrasion resistance level, while simultaneously possessing adequate strength levels.

The best compromise is usually arrived at by using grades that are based on coarse grain sizes (3 to 8 mm)

and relatively low Co levels (6 to 16 wt. %).

Q: How can I choose the most suitable products for my applications?
A: 1.Correct installation site depends on specific size and drawings. Especially for dies processing,

drawings can ensure the finished products are qualified.

2. Processing objects and working environment is determined by cemented carbide grades.

Products' lifetime can be greatly extend if grades are right.
