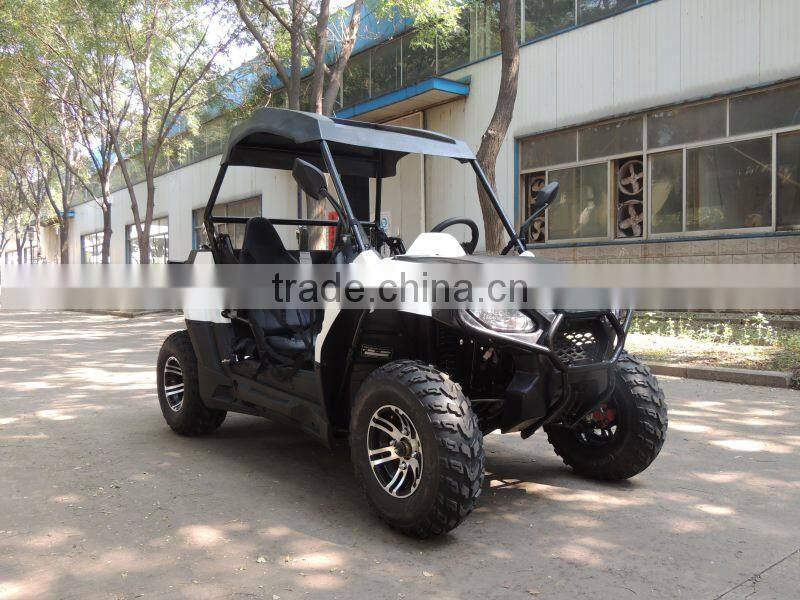

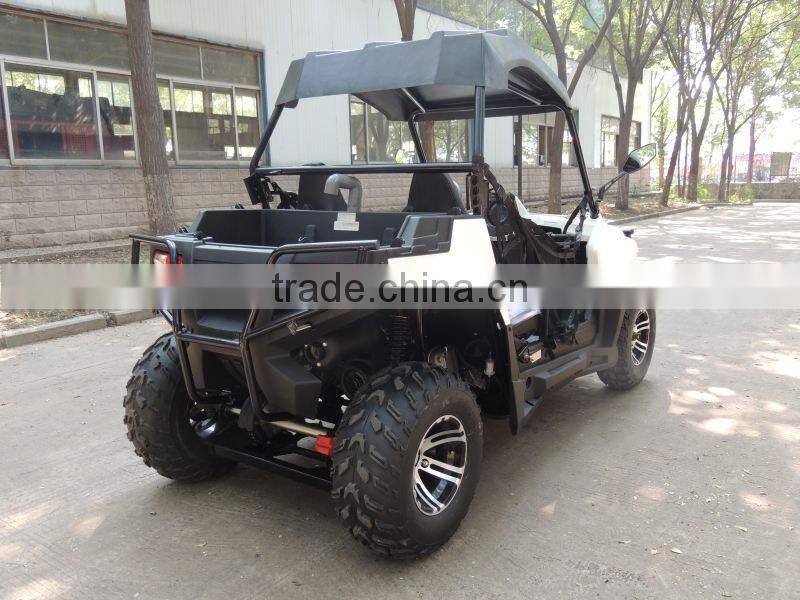

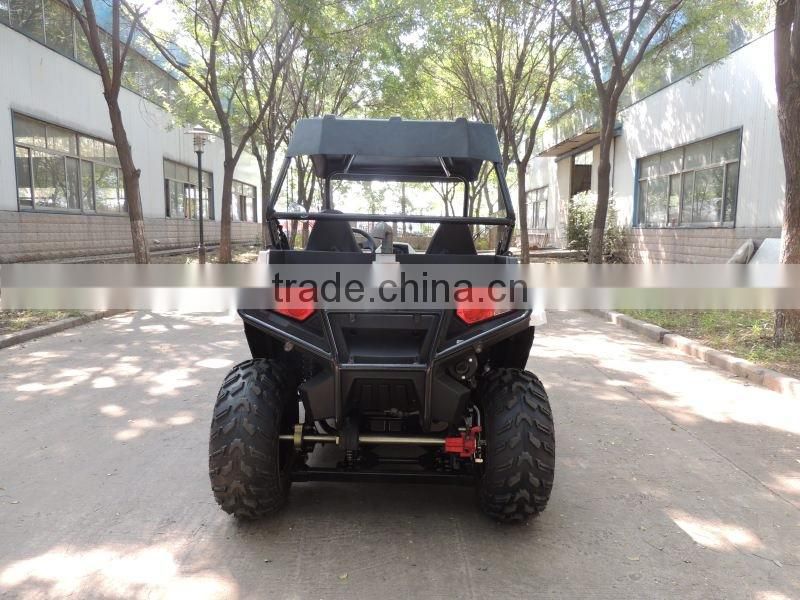

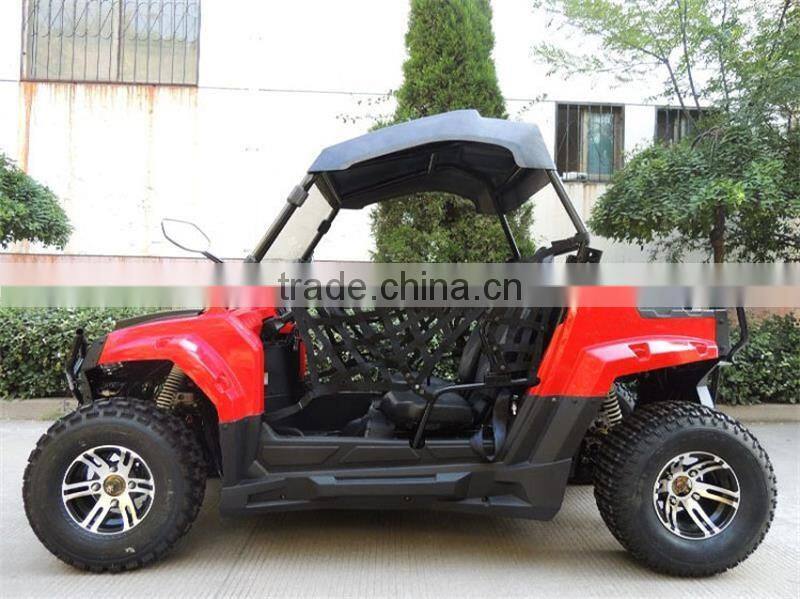

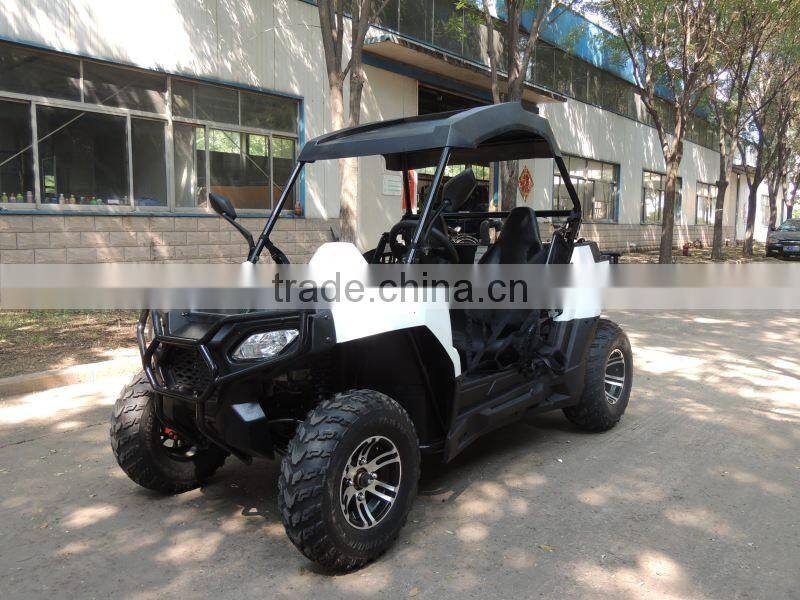

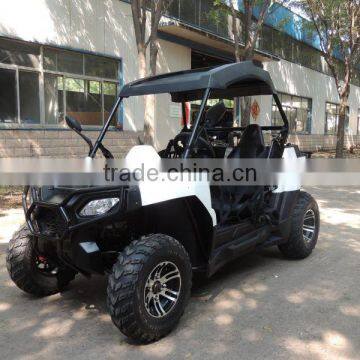

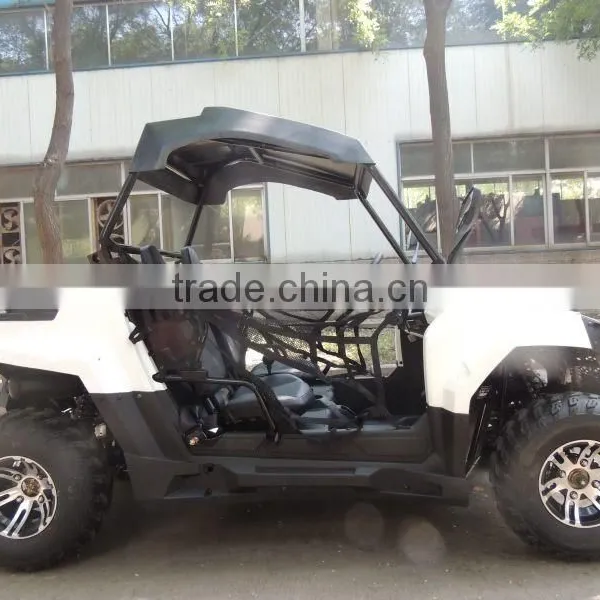

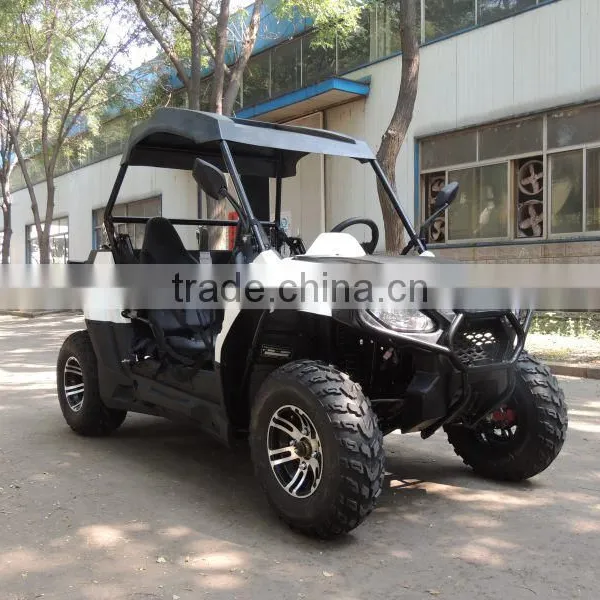

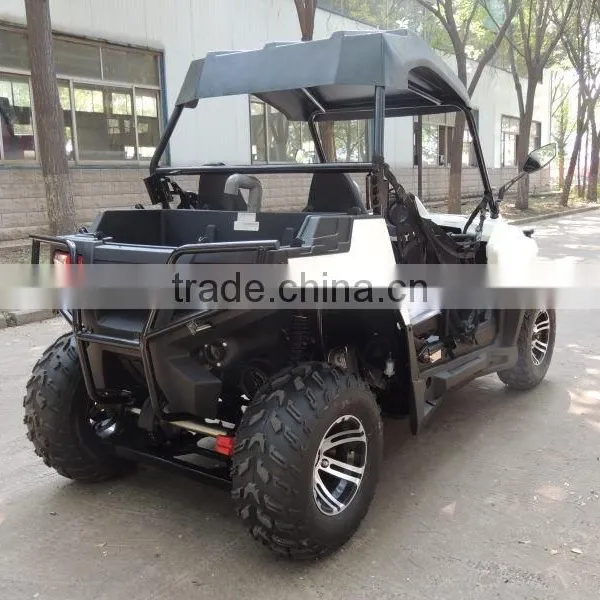

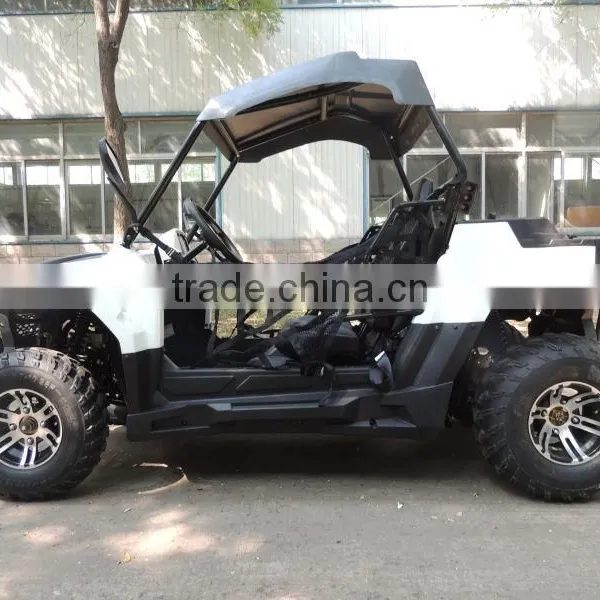

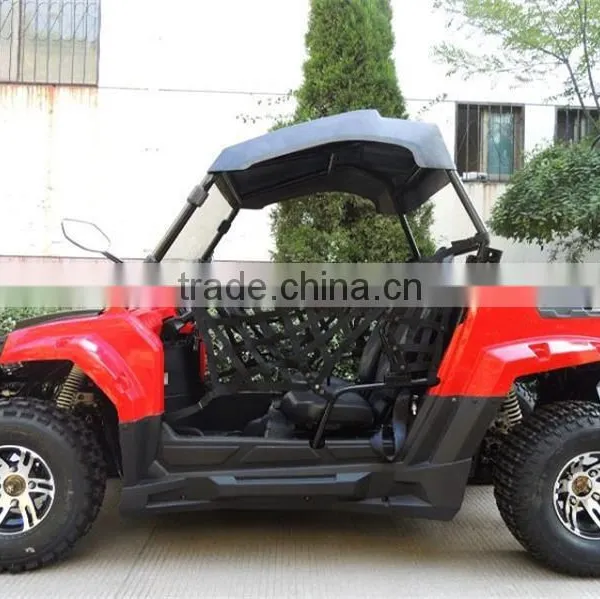

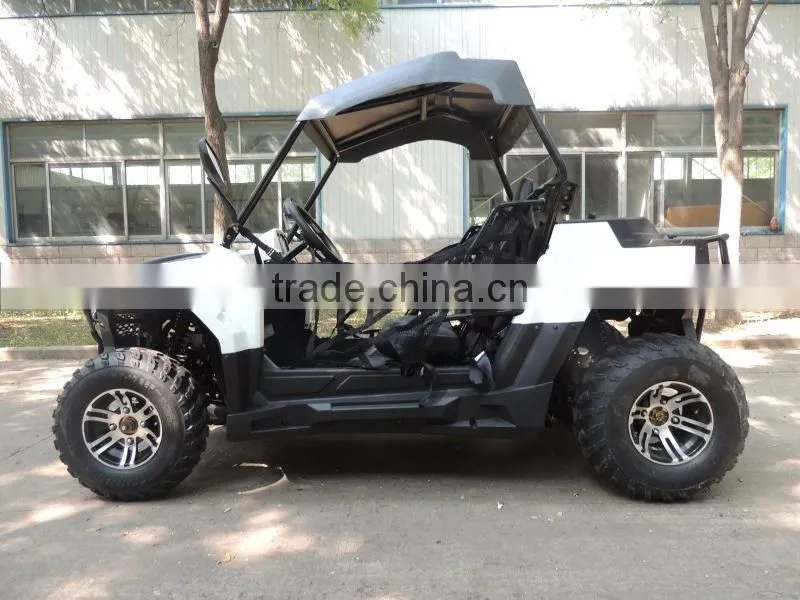

2WD Small ATV Dune Buggy With Displacement 200cc

MODEL  AOS200

ENGINE

Engine type

4-stroke,Single-Cylinder, Air/Oil-cooled

Displacement

175cc

Horse Power

7.6kw(7000r/min)   10.5HP

Valve Configuration

OHV

Compression ratio

9:1

FUEL SYSTEM

Fuel Delivery System

Fuel Pump Carburetor

Choke System

Automatic

Fuel capacity

9.5L (2.1 Gallon)

DRIVETRAIN

Driveline Type

2*4

Final Drive

Chain-Drive

Transmission

Constantly Variable Transmission

Gear Selection

Forward & reverse single speed

ELECTRICAL SYSTEM

Forward Lights

High & Low Beam

Rear Lights

Brake Lights & Left/Right Signal lights

Starting system

Electric start

Ignition system

C.D.I

SUSPENSION / BRAKES

Suspension Front

Double A-arm optional

Suspension Rear

Dual shock Swing Arm

Brakes Front

Front Dual Hydraulic Disk

Brakes Rear

Rear Single Axle Hydraulic Disk

TIRES

Front Tread

1020mm ( 40.2 in)

Rear Tread

965mm ( 38in)

Front & Rear tire size

19x7-8 / 20x10-9

MISC

Manufacturers Defect Warranty

6 Months

Top speed

65km/h

Dry weight

245kg ( 540lbs.)

Gross weight

320kgs(704lbs)

Wheelbase

1860mm (71in)

Vehicle dimension (L×W×H) (Heading Light Height included)

2450x1300x1400mm

Ground clearance

170mm (10.2in)

Safety

Driver & Passenger Triple Point Fix Seat Belts/ Metal Semi-Door

Packing size

2290*1300*815mm

Shipment

8units/20''; 18units/40'';26untis/40HQ
