Good Quality Loader Weighing System Digital Weighing Scales For Loader

Loader weighing system working theory:

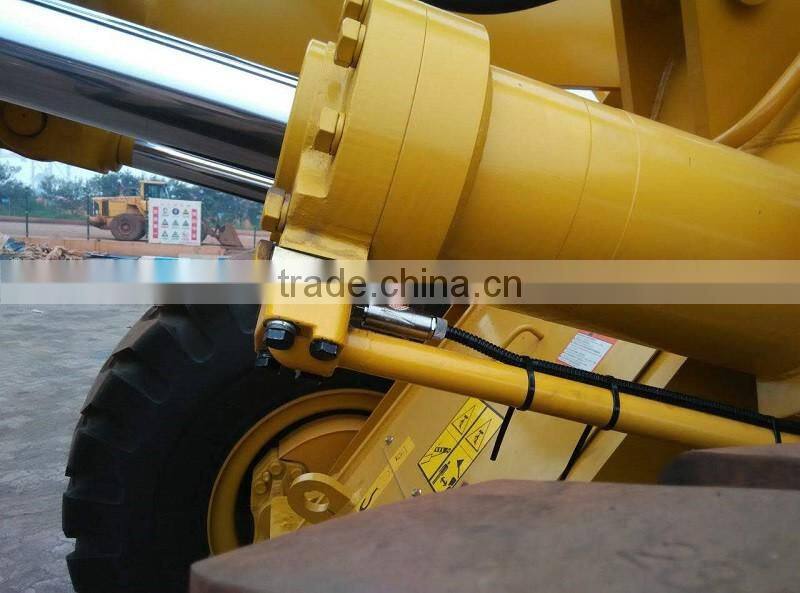

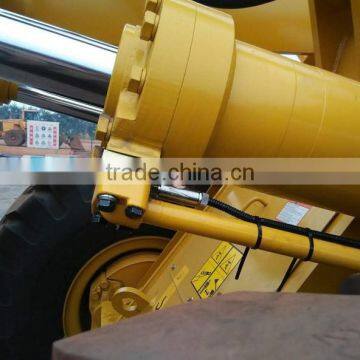

Two pressure sensors installed on the inlet and outlet of the cylinder, when the loader boom lifting up and down, to test the oil pressure, and make speed compensation, the loading scales calculated automatically, so that come out the data of weight.

DC6000 weighing system (weighing scales) is the a high version system, with the more advanced technology inner.

The following are the main specifications:

Accuracy:+/-0.3--+/-1%, reach the standard of international orgnization OIML grade of Y(b).
Markable values: 1kg, 5kg, 10kg;
Working voltage:12+/-30% VDC (when change the battery, take off the power wire);
Working Currency: 100mA-200mA;
Working Temperature:-40--60°;
Min Weighing weight:50kg;

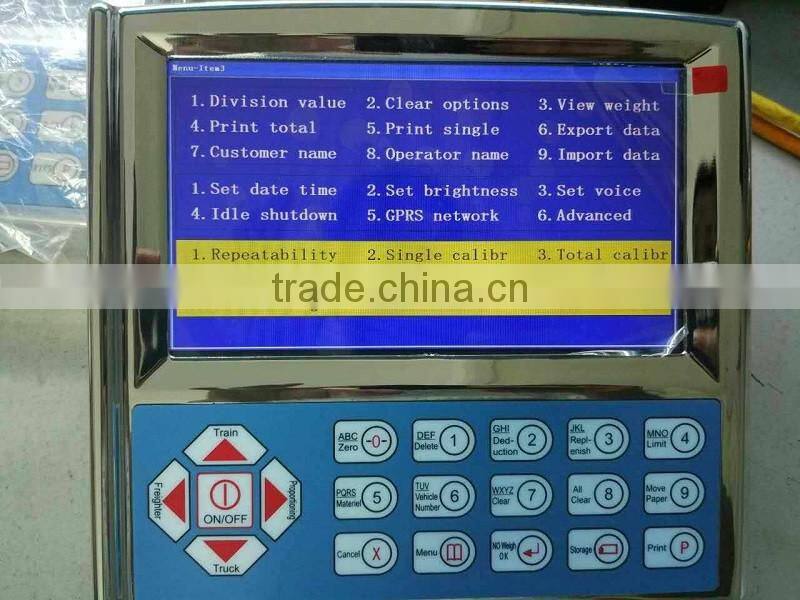

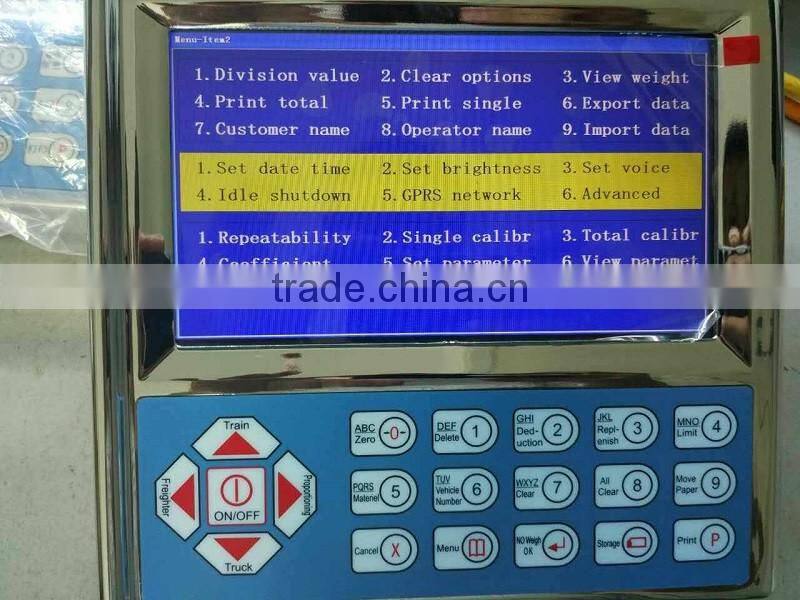

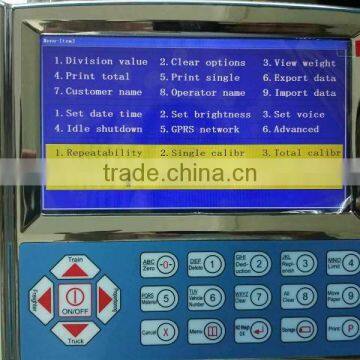

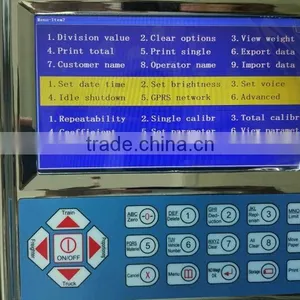

Display screen: colorful LCD(240*128 matrix liquid-crystal display screen).
Dimension of screen: about 250*180*50mm;
Weight of package: 4kg.
