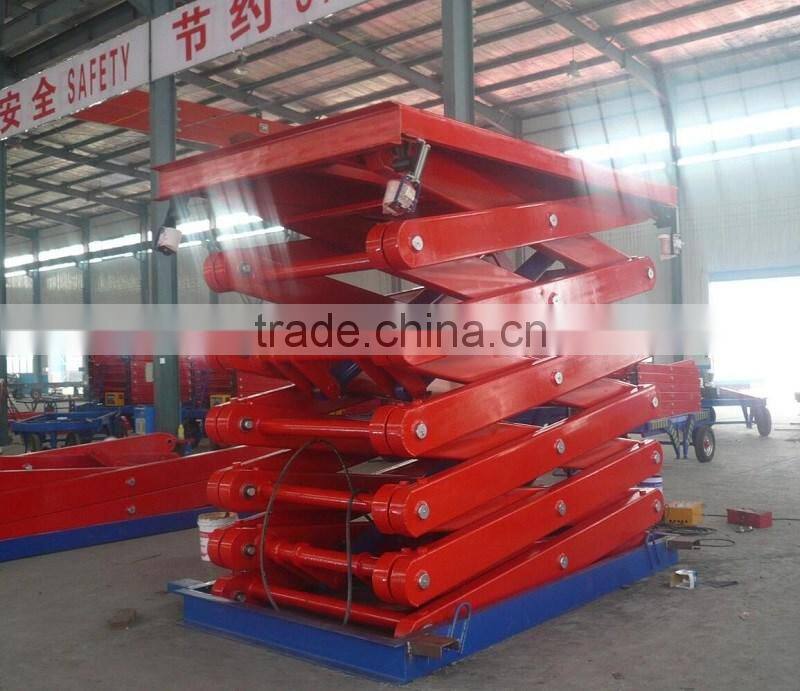

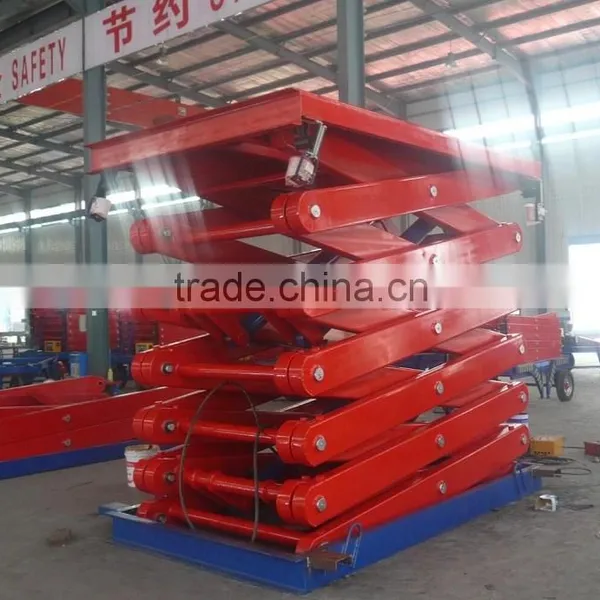

Help CenterHeavy Duty Hydraulic Cargos Lifter For 4tons Capacity 16m Height
Related Products
-
Customized Hydraulic Stationary Scissor Lift Platform For Warehouse WorkingUS$ 6,000 - 7,000MOQ: 1 Set -
CE Approved Warehouse Cargo Elevator Lift For SaleUS$ 3,500 - 6,000MOQ: 1 Set
-
Electric Hydraulic Guide Rail Chain Lift Table Customerized ProducingUS$ 5,000 - 5,000MOQ: 1 Set
-
Electric Hydraulic Guide Rail Chain Lift For Outdoor WorkingUS$ 5,000 - 5,000MOQ: 1 Set
-
Warehouse Stage Using Static Dock RampUS$ 1,800 - 2,200MOQ: 1 Set
Hydraulic Stationary Scissor Cargo Lifters are widely used machines for many fields, the most popular using are in warehouse,basement, first floor,etc, which for carrying the cargos,cars,,etc. to the high floors. Both inside and outside using available.
It's design and produce as clients' requirements, as long as telling us the requirements of capacity, platform size, lifting height, we can design, supply drawing and give offer.
...............
Following are specifications of model SJG4-16:
Model |
SJG4-16 |
Capacity: |
4000kg |
Lifting height: |
16000mm |
Platform size: |
5000*3000mm |
Closed height: |
1850mm |
Net weight: |
8200kg |
Cylinder: |
Φ125*4pcs |
Main material: |
300*200*5mm steel tubes |
Upper frame: |
20# heavy steel |
Platform thickness: |
4mm checkered plates |
Handrail height : |
1000mm, 4pcs |
Power: |
11KW/380V/50hz |
Spare parts: |
Oil pipes and seal ring,etc. |
...............

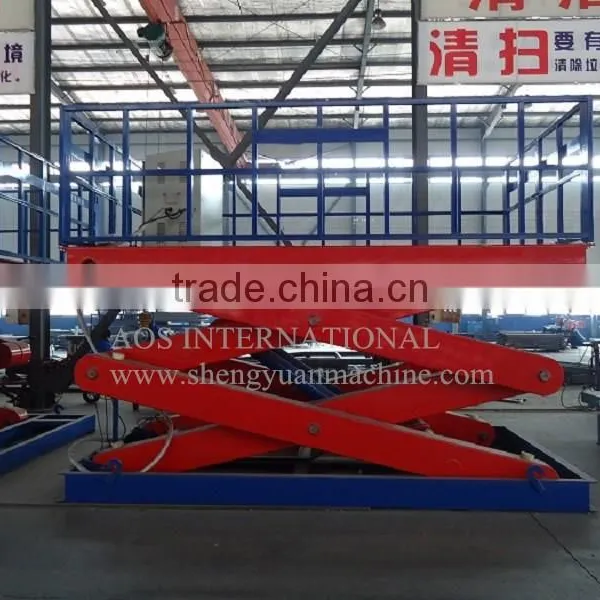

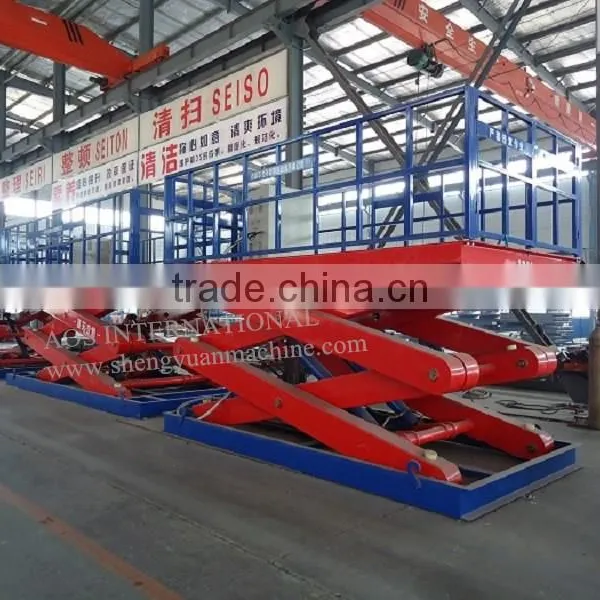

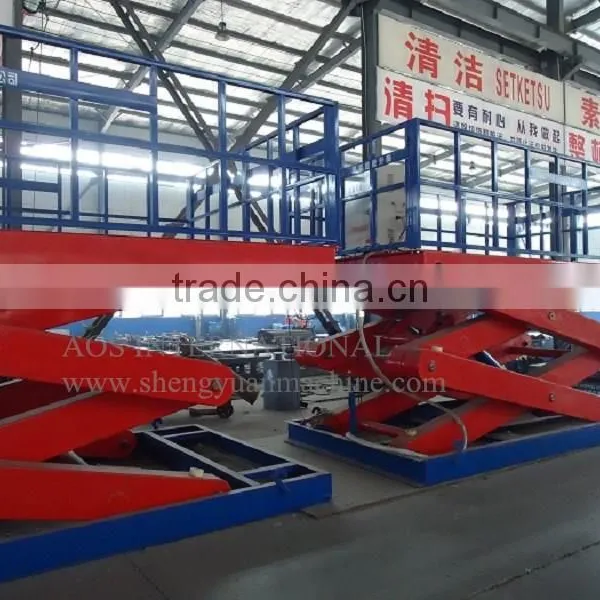

The following are the models which designed for clients, please have a look for your reference:
