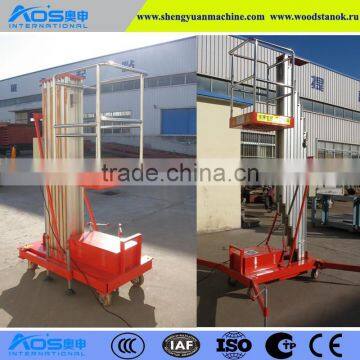

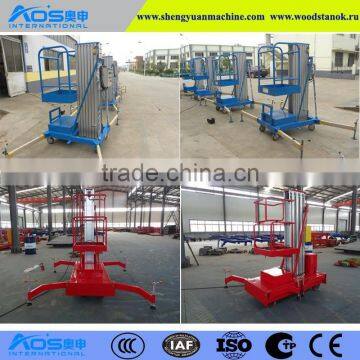

Help CenterSmall Aluminium Hydraulic Work Lift With Max Platform Height 10m
Related Products
-
Mini Self-propelledHydraulic Scissor Lift MachineUS$ 5,000 - 7,000MOQ: 1 Set -
Chinese Hydraulic Scissor Man Lift TableUS$ 1,980 - 2,200MOQ: 1 Set
-
High Quality 16m Hydraulic Scissor Lift Table For Aerial WorkingUS$ 6,880 - 7,200MOQ: 1 Set
-
Hydraulic Self-propelled Electric Scissor Lift Machine 6mUS$ 8,000 - 9,900MOQ: 1 Set
-
Mobile Dock Ramp For Container Load And Unload With ForkliftUS$ 3,600 - 4,200MOQ: 1 Set
Single Mast Aluminium Hydraulic Lift Table is a small and light work lift table,safe and reliable, it is mainly used for the installation and maintenance of many fields, such as hotels, workshops, lobby, restaurant, railway stations, exhzibition hall, shopping malls, and so on, which is a good helper for the equipment maitenance,paint decoration,etc.
Features:
1.Adopting high strength aluminum molding material keeps deflecting degree and swing tiny.
2.Overload & emergency safety protection device.
3.Safeguard valve to avoid hydraulic pipe rupture.
4.Emergency manual hydraulic valve to cope with power cut.
5.Double chains greatly improve the safety factor.
6.Electrical control, or manual pump control when the electricity is not available.
7. Power 220v/380v, 50hz/60hz; battery driving optional.
.............
The models of the aluminium work lifts:
Model |
Capacity |
Table size |
Table height |
Work height |
Dimension |
Weight |
YBC0.1-4 |
100Kg |
600*600mm |
4m |
5.7m |
1.2*0.8*1.7m |
300Kg |
YBC0.1-6 |
100Kg |
600*600mm |
6m |
7.7m |
1.2*0.85*1.87m |
350Kg |
YBC0.1-8 |
100Kg |
600*600mm |
8m |
9.7m |
1.2*0.9*1.98m |
400Kg |
YBC0.1-10 |
100Kg |
600*600mm |
10m |
11.7m |
1.2*0.9*1.98m |
450Kg |
