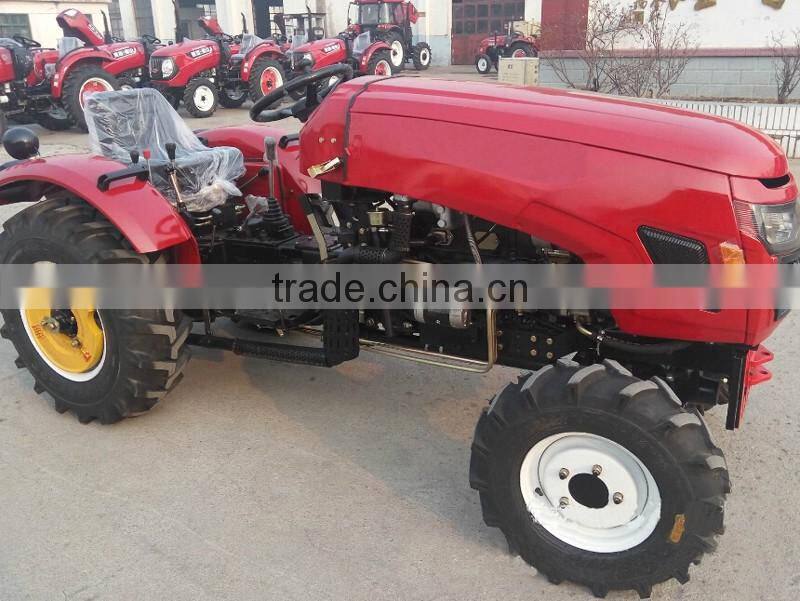

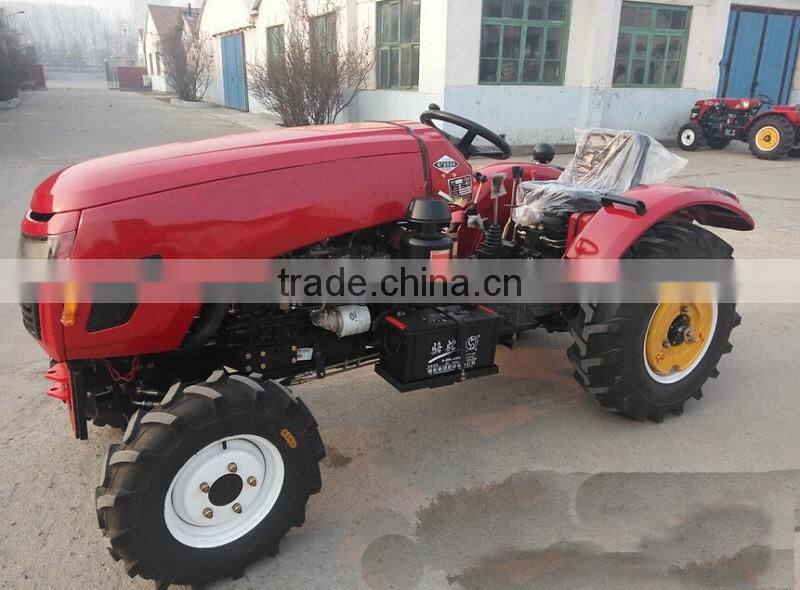

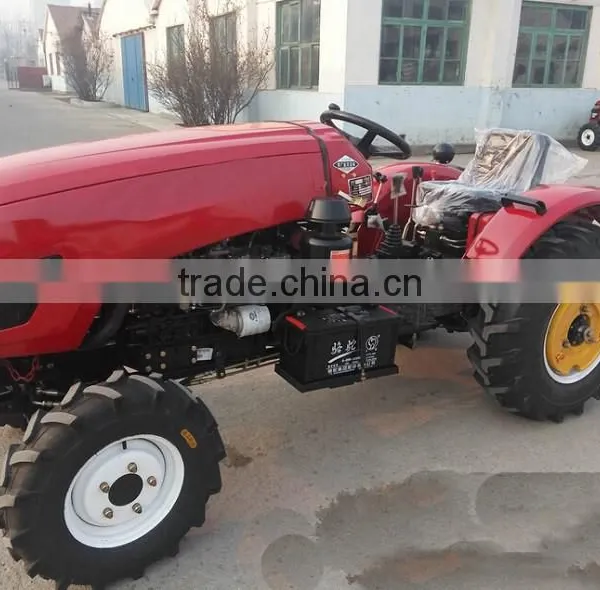

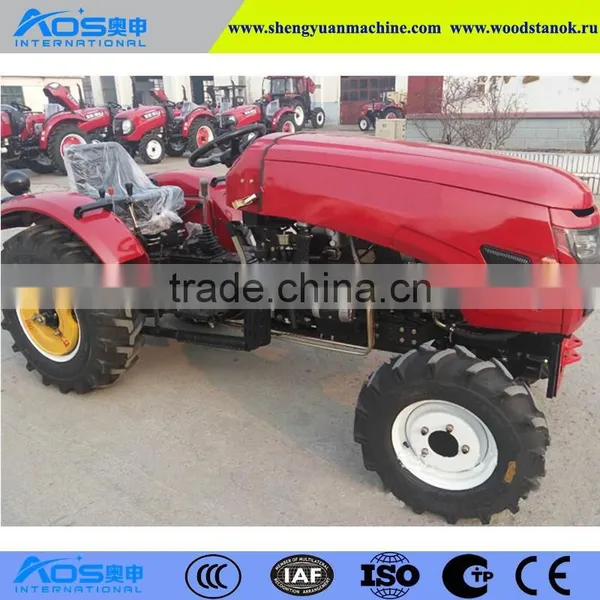

55hp 4WD Farm Tractor

Model

AOS554

Driving mode

4WD

Overall Dimensions (mm) W*D*H

3300*1500*1700

Tractor weight (kg)

1500

Rated tractive Force (N)

10500

Max. tractive power (kw)

≥27.5

Wheel Base (mm)

1960

Front Wheel Tread (mm)

1280-1300 Adjustable

Rear Wheel Tread (mm)

1300-1500 Adjustable

Front Wheel Tire

750-16

Rear Wheel Tire

11.2-28

With one side braking

3.5±0.2

No braking

4.0±0.2

Min. Ground Clearance (mm)

396

Transmission Box

Spur gear, plane compound

Gear Shifts

8+2

Theoretical Speed (km/h)

2.13-29.53

Clutch

single stage, dry friction, constant contact

Steering System

Hydraulic steering

Working Devices:

Hydraulic System

half-separated

Lifter Tillage Depth Control Method

Draft and Position Control

Max. Lifting Capacity (N)

≥8280

Three Point Hitch System

I35, Post Positioned, CategoryⅠ

PTO Type

Post Positioned, Non-independent

Max. PTO Power (kw)

33

PTO Rev. (rpm)

540/720, 540/1000 or 720/1000

Engine:

Engine Type

Vertical type, Four cylinder diesel engine

Standard

Laidong G3

Bore *Stroke (mm)

100*105

Rated Power (kw)

40.4kw (55hp)

Rated Revolution (rpm)

2400

Lubricating Method

Pressure splash lubrication

Cooling Method

Forced Water Circulation

Fuel consumption (g/kw.h)

≤243

Engine Oil Consumption (g/kw.h)

≤2.0
