Two Header Stone Engraving Machine CNC Stone Machine With DSP Control System

Two Header Stone Engraving Machine CNC Stone Machine With DSP Control System photo-1
Two Header Stone Engraving Machine CNC Stone Machine With DSP Control System photo-2

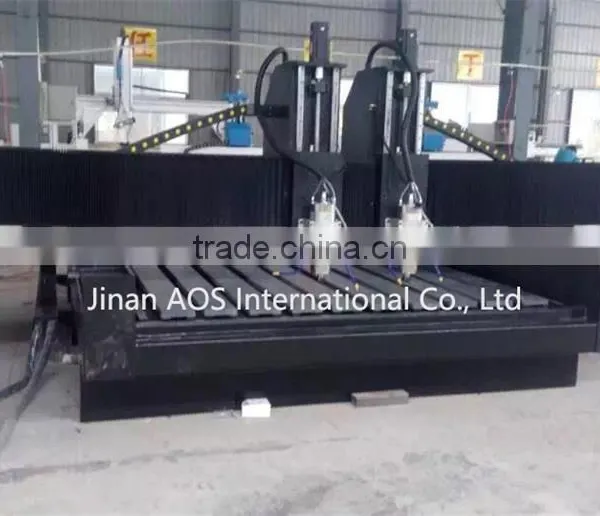

Two Header Stone Engraving Machine CNC Stone Machine With DSP Control System photo-3
Two Header Stone Engraving Machine CNC Stone Machine With DSP Control System photo-4

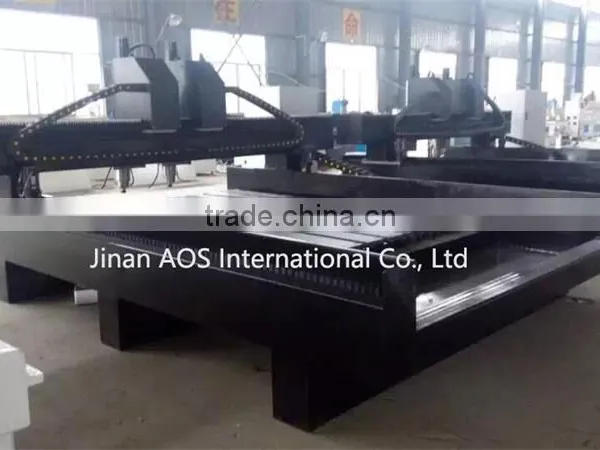

Two Header Stone Engraving Machine CNC Stone Machine With DSP Control System photo-5
Two Header Stone Engraving Machine CNC Stone Machine With DSP Control System photo-6
US$ 7,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
CNC Router
Use:
Cement Brick
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type CNC Router
Use Cement Brick
Production Capacity Month
Place of Origin Shandong, China
Brand Name AOS
Model Number 1325
Voltage 380V
Power(W) 4.5KW
Dimension(L*W*H) 1300*2500*200mm
Weight 1500kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Two Header Stone Engraving Machine CNC stone Machine With DSP Control System

Two Header Stone Engraving Machine CNC stone Machine With DSP Control System

Alibaba Manufacturer Directory - Suppliers, Manufacturers, Exporters & Importers

Features:

1. Simultaneous multi-head engrving: It can engrave many files at the same time, save the time and improve the working efficiency.

2. Excellent parts: We adopt Taiwan linear guide rail and German ball screw.

3. Reasonable design: Independent operating cabinet. It is more convenient for operating and maintenacne.

4. Perfect oil lubrication system, extended the life of the machine.

5. Compatible software: Our machine is compatible with Type3/Artcam/ Castmate/Wentai and other kinds of CAD/CAM software.



Parameters:

X YZ axis  Working size

2000mm×3000mm×200mm

Table

2400*3850mm

Max working speed

30m/min

Max engraving speed

15m/min

Frame:

Welded steel

X-Y-Z  Structure:

Rack and Pinion  Z axis: Taiwan Ball screw

Command

G code, u00*, mmg*, plt

Control System

 Ncstudio (optional: DSP off line)

Rail

Taiwan HIWIN Square linear guide rail

Power

AC 380V/50Hz

spindle Power

6 Kw Chinese water cooling ( Optional: air cooling spindle)

Spindle speed

0-24000rpm/min

Drive  motor

Stepper (optional Japanese servo)

Software

Ucancam / Type3/ Artcam

Dust Collector Power

3.0kw

Vacuum pump



collet

3.175mm,6mm,12.7mm

Packing dimension

2200× 4000 ×1950mm

Gross weight

2400kg



Applications:

1. Woodworking industry: classic mahogany furniture processing.
2. Other Industry: carving a variety of shadow carving, relief, widely used in craft gifts industry.
3.This machine can be used in: aluminum cutting industry, aluminum, aluminum-plastic plate, aluminum honeycomb panel, aluminum, 3D ornamental engraving technology, wave plates production
