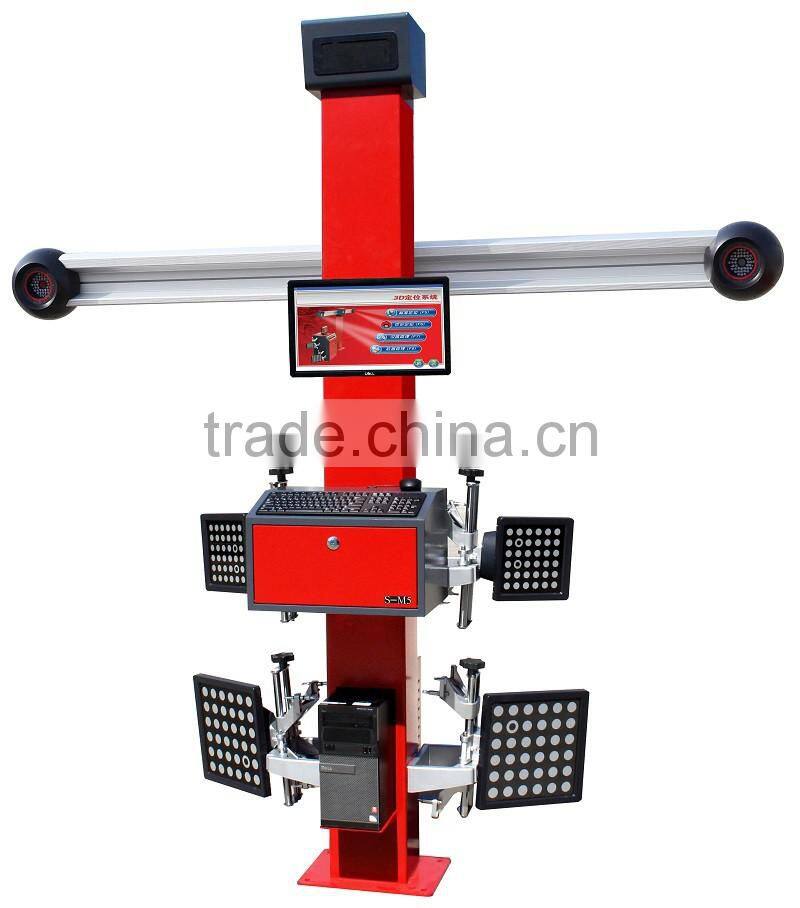

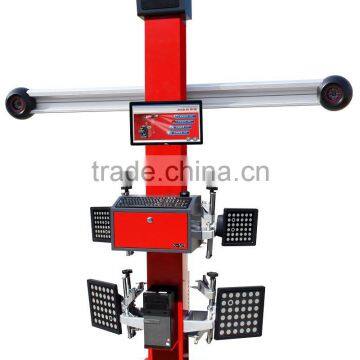

Price For 3D Wheel Aligner

Price For 3D Wheel Aligner photo-1
Price For 3D Wheel Aligner photo-2
US$ 4,000 - 4,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
AOS
Model Number:
M5
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name AOS
Model Number M5
Warranty 1 Years




3D WHEEL ALIGNER CHARACTERISTICS

Precision measurement
Rapidity and convenience
Powerful function



*Dual cameras with four target plates, composed of 3D wheel alignment, can adjust the vehicle height and the camera height at any time in the operation process, no effect on the measurement results;
*Set up the reading under 2 minutes;
*Non electronic wheel sensor target;
*Long lift hi-speed camera system;
*Lift-time free vehicle database update;
*24 inch wheel clamps;
*Easy to operate interface;
*Calibration- free-calibration of the 3D wheel aligner system was done in the factory, doesn’t need on site calibration on installation. This outstanding function saves a lot of work and make installation of the equipment super easy. It can improve job efficiency.

 ...................



Model: AOS-M5:


Standard Configuration:
Small compact cabinet, Dell computer, canon printer, target plate, Pylon bracket, Brake fixer, Steering wheel fixer, Wedge block, Turntable, Transition block of turntable.



Software function:
Basic function: camber, caster, Kingpin Inclination, toe angle, set back, Thrust Angle and so on.
Extended function:axis deviation measurement, wheel deviation measurement, Animation, single-wheel measurement, the vehicle lift measurement function, straight steering wheel function.





Specifications:



Measurement project

Accuracy

Measurement range

Display accuracy

1´/1mm



Camber

±2´

±10°

Caster

±6´

±20°

Kingpin Inclination

±6´

±20°

Toe-in & Toe-out

±2´

±20°

Set back

±2´

±5°

Thrust angle

±2´

±5°

Wheel Deviation

±2mm



Axis Deviation

±2mm
