Home > Products > VACUUM TRUCK > JAC 4x2 3CBM Mini Vacuum Sludge Truck

Share|

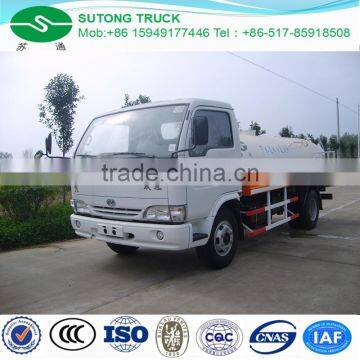

JAC 4x2 3CBM Mini Vacuum Sludge Truck

FOB Price

USD $40,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Transmission Type:	Manual	Condition:	New	Emission Standard:	Euro 4
Fuel Type:	Diesel	Tank Volume:	3000L	Dimension (L x W x H):	5850* 2200 * 2950
Place of Origin:	Jiangsu, China	Brand Name:	SUTONG	Model Number:	ST20160501022
Horsepower:	120hp	Gross Vehicle Weight:	3000

Product Description

Name Card

Iris brief introduction

-Experienced:10 years in export trade and 6 years in Truck and trailer field,which will offer better service to you.
-Profession:Rich knowledge at truck and trailers,which will better understand your demand,and will offer better solution to support your purchase job.
-Customer Cared:I not only work for my company,but also work for you,I will be your assistant to stay here in my company workshop
Warm welcome all friends to visit our website!!!

Product Description

This vacuum sludge truck Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory……,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .

NO.	Main components	Detail Description
1	Chassis	Dongfeng brand 4X2,Engine is Euro 3 or 4 emission standard, There 2 pcs PTO to drive vacuum pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm.
2	Vacuum tank	Tank Shape:Cylinder type ,Vacuum tank volume is 4000 liters,made by SS304L,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. Hydraulic lift sylinder to lift up the tank body to outlet the sludge in 45 degree with safety support. Water level instrument locate in the rear of the tanker body.6" or 4" outlet valve in the rear to release the sludge.
3	Clean Water tank	without clean water tank
4	Rear Door	Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6" suction pipe and 6" discharge valves.
5	Cooling water tank	1000L,located behind the Cab of the truck,use for cooling the vacuum pump.
6	Vacuum pump	Liquid ring Chinese Kenflo brand,3000H/M air flow rate,vacuum rate 90%,vacuum pump can be choose according to customer's requirement.
7	High Pressure pump	without high pressure pump
8	Others	Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory.
9	Remarks	Above information just for reference,we can adjust the specification according to customer's requirement.

Certifications

We have Obtained CCC,ISO9000,BV certificates,we also obtained many other Honorary certificate issued by loccal Government.

Products overview

Our main products including Vacuum jetting truck,sewer jetting truck,Biogas liquid vacuum truck,oil tanker trailer,vacuum tank trailer,rear dumper trailer,lowbed trailer, container trailer,side wall cago trailer, chemical liquid tanker truck, bulk power goods tanker trailer,cement tanker trailer, water tanker semi trailer,full semi trailer,and so on. Total 100 style available for sales.

Those photos shows about our products manufactured workshop.

Detailed Images

Control Panel

The control panel mainly control vacuum pump and high pressure pump working,it also control the electrical system working,including working lights,alarm,emergency button and so on.

Packing & Delivery

Before delivery.

vacuum sludge truck will in nude packing,delivery by Roro ship or by bulk vessel,or according to customer's requirement.

Service to customer

We went to our customer's work site to offer after-sale service to our customer,our truck very famous in local market,many local TV Media come to make reports on local TV channel.

Customer visit

Following are some of our customers came to visit our workshop from different countries, we warm welcome more friends from all over the world come to visit our workshop in the near future!!!

Contact Us

Huaian Sutong Municipal Machinery Co., Ltd.: Contact nameSutong huang; AddressNo28 Bianshoumin Road,Economic Development Zone Huaian,Jiangsu
