European Palisade Fencing Style With Cheap Prices

European palisade fencing style with cheap prices

>>>Product introduction<<<

European palisade is a great solution for locations which need to provide a high level of security.This permanent security fencing system offers great strength and longevity and is perhaps the most traditional form of security fencing.

1) A standard palisade fence panel is constructed from hot and cold rolled steel sections supplied for assembly on site.
2)palisade fence panels consist of 17 vertical pales manufactured in D" or W" profile with a choice of tops. The pales are fixed to 2 pieces of 50x50x5mm rolled steel angle  horizontals which are supported by 100 x 55x5m joist posts.
3) A fish plate passes through a slot in the post and secures the horizontal rail captive in its position.
4) The pales are connected to the horizontals to form the panel and are held securely together by utilizing vandal resistant security fasteners.
5)Palisade fence  is supplied in 2.75m wide standard panels for easy assembly on site.
6) Special panels and posts to step or rack can be supplied if required.
7) Non standard posts for cranking over walls, or base plated for fixing to concrete are also available.

>>>Specification<<<

More details:

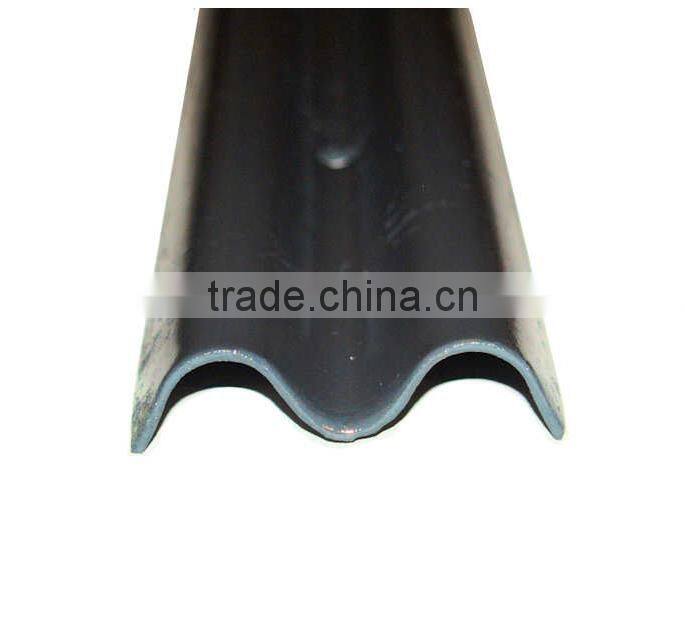

Pales-"W" section
Most useful vetical type of pales for palisade fencing, which is always the customers' first choice for pales.

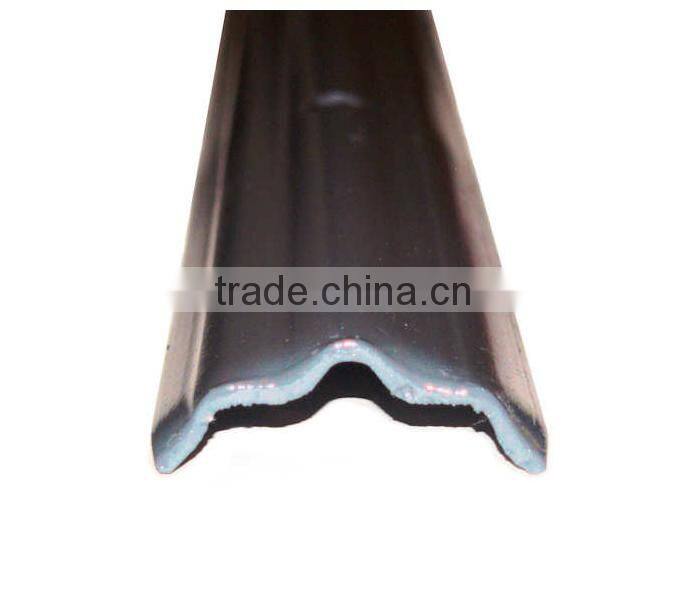

Pales-"D" section
Compared with "W" profile pales, "D" profile is more economical.

Post- IPE Type
As a connection pipe between the fence panels, IPE type is the most useful way.

Rail- Angle Iron

 It is the connection between pales and IPE post, which make the fence as a whole panel.

>>>Technology<<<

Producing process

Finishing

Secure-nett fencing and railing products are guaranteed for life against defects in workmanship and/or materials. The Powdercoat™ finishing on all fencing and railing by AKZO NOBEL is unconditionally guaranteed for life against cracking, peeling or chipping.

>>>Features<<<

1.palisade fence panels smoothly flows and adjusts to the landscape without the need for stair stepping with it's hidden pin hinge system that show no visible fasteners.
2.Secure design that has perfectly smooth rails on both sides - no unsightly picket-to-rail connection.
3.Security fasteners on all brackets add security to palisade high security fencing installations while maintaining a clean and aesthetic appearance.
4.100% pre-galvanized and dual E-Coated & powder coated iron, which means virtually maintenance free.
Coated with AKZO NOBEL - Electrostatic Polyester Powder Coating means that palisade high security fencing will keep their original sheen longer than any other steel fence in the industry.
5.20 year limited manufacturer warranty.

>>>Application<<<

Commercial industrial parks
Municipal developments
Public housing
Assisted living facilities
Parks & recreation
Schools & universities
Stadiums & event centers
Churches & hospitals
Retail centers
Restaurants

>>>Installation<<<

M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts
M12 Cup square bolts with Permacone type nuts (shear off)

>>>Technology control<<<

"Quality is our culture".From raw material to product finishing, each step we will have a strict technology control, so the product quality we can guarantee.

>>>Packaging&shipping<<<

Piece packed with shrink film, several pieces in a bundle. Bubble Wrap for the bundle and polybags for the outside packing.
