Cattle fence wire mesh knitting machine
Why choose us
cattle fence wire mesh knitting machine
1.Have professional machine design department
2.Have electronic Reserch&Development department
3.Have ISO9001:2008 certificate
4.Have professional debuggers
5.Have After-sales service team(24hours online)
Product Description :

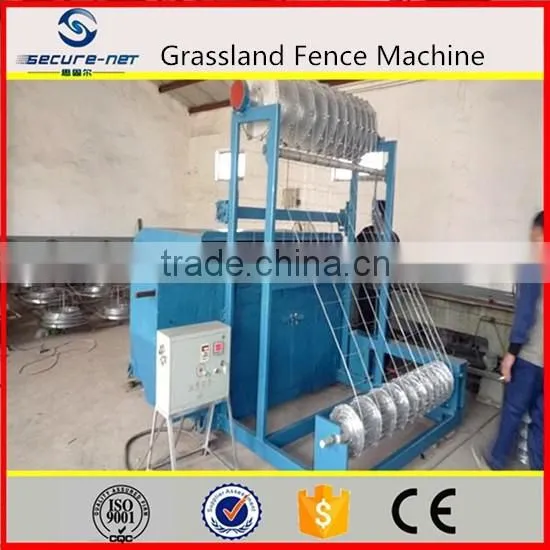

Cattle fence wire mesh knitting machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made. cattle fence wire mesh knitting machine uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. cattle fence wire mesh knitting machine controlled automatically by NC . All parts work coordinately and smoothly .It is operated flexibly and inexpensive. Products are neat and beautiful, diverse specifications.
Cattle fence wire mesh knitting machine suitable material :
It is made of high-quality carbon steel wire and stainless steel wire through by our automatic machines. We can supply products made of cold galvanized and hot-dipped galvanized materials. Specifications can be made by clients'requirements.
Features of products:
Flat mesh surface, firm and precise structure, well-distributed mesh, strong integration, etc. Even if part of the wire mesh is cut or pressed, it will not loosen.
The function of the product
Cattle fence wire mesh knitting machine , widely used in America and Europe , is mainly to preserve the ecological environment and prevent massif from landslide. Animal husbandry fence is developing quickly because of its unique function.
Cattle fence wire mesh kintting machine main parameter:
Type |
1422mm |
1880mm |
2000mm |
2400mm |
motor |
5.5kw |
7.5kw |
7.5kw |
11kw |
Dimension |
2.8*3.2*2.4(m) |
3.3*3.2*2.4(m) |
3.4*3.2*2.4(m) |
3.9*3.4*2.4(m) |
Efficiency |
≤45row/min |
≤45row/min |
≤45row/min |
≤45row/min |
Twine diameter |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
Side wire diameter |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
Voltage |
380v |
380v |
380v |
380v |
Weight |
3.5T |
3.8T |
4.0T |
4.5T |
Wrap number |
11 |
13 |
18 |
23 |
Minimum weft opening number |
2 |
4 |
4 |
6 |
Weft number |
10 |
12 |
17 |
22 |
Productivity |
21600row/day (150m/h) |
|||

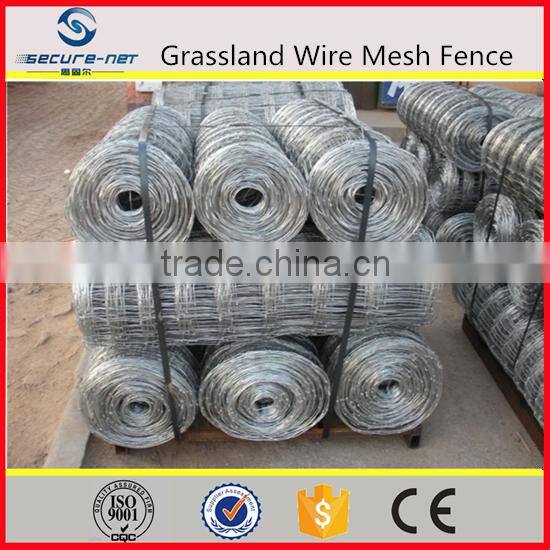

Finished products:
Application
Note:The specification may be supplied according to the coustomer's requirement.
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
Cattle fence wire mesh knitting machine
1.We are professional wire mesh machine manufacture with 15 years experiences in china.
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.
2.Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, Construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine,Cattle fence wire mesh knitting machine ,Razor barbed wire machine,Expanded metal mesh machine Chain link fence machine and related accessories.
If you have any problem ,let me know,will help you try my best.
