Home > Products > Gabion mesh machine > Gabion basket installation machine
Gabion basket installation machine
- 30 Set / Sets per Month
- Port of Tianjin Xing
- T/T
Product Details
Place of Origin: | Hebei, China | Brand Name: | SECURE-NETT | Model Number: | SG-SLW |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

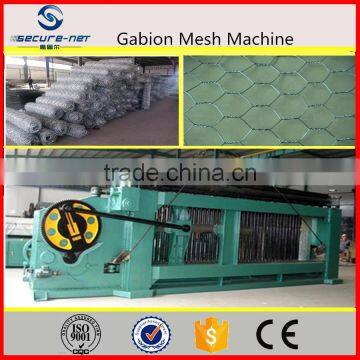

Gabion basket installation machine
Why choose us:
1.Have professional machine design department
2.Have electronic Reserch&Development department
3.Have ISO9001:2008 certificate
4.Have professional debuggers
5.Have After-sales service team(24hours online)
Poroduct Description:
Gabion basket installation machine is also called heavy-duty hexagonal wire netting machine.
The gabion basket is made of pieces of hexagonal wire netting ,which is mainly used as building material,it can be used in resevior for closure ,and also serves as highway guard rail netting , railway guard rail netting , greeguard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh ,etc.
Performance characteristics:
1.It is touch screen control
2,It has the function of frequency control of motor speed according to different of wire diameter.
3,It has buffer function when speed increase or decrese in very short time.
4,It can count output every day or every year.
5,It can save about 30% energy.
The main technical parameter
Specification(mm) | Max Net Breadth(mm) | Max Thread Diameter(mm) | Twisting Model | Main Shaft Ratary Speed | Motor Power(kW) | Theoretical Production Speed | Diamention (LXWXH)mm | Weight(T) | |
Twisting (Mesh/min) | m/h | ||||||||
60*80 | 2300 | 2.8 | double | 25 | 11 | 25 | 165 | 5200*1400*2400 | 13 |
3300 | 2.8 | double | 25 | 15 | 25 | 165 | 6200*1400*2400 | 14 | |
4300 | 2.8 | double | 25 | 22 | 25 | 165 | 7200*1400*2400 | 15 | |
80*100 | 2300 | 3 | double | 25 | 11 | 25 | 195 | 5200*1400*2400 | 13 |
3300 | 3 | double | 25 | 15 | 25 | 195 | 6200*1400*2400 | 14 | |
4300 | 3 | double | 25 | 22 | 25 | 195 | 7200*1400*2400 | 15 | |
100*120 | 2300 | 3.2 | double | 25 | 11 | 25 | 225 | 5200*1400*2400 | 13 |
3300 | 3.2 | double | 25 | 15 | 25 | 225 | 6200*1400*2400 | 14 | |
4300 | 3.2 | double | 25 | 22 | 25 | 225 | 7200*1400*2400 | 15 |

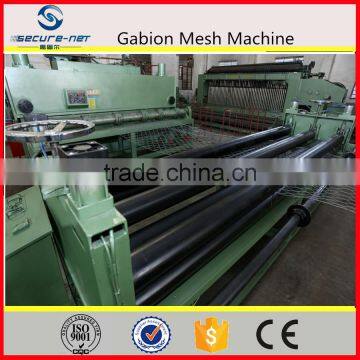

Parts of the gabion basket installation machine
1.Metal wire straightening part
2.Mesh collector
3.Gabion Mesh Flatten Machine
Accessory equipment
1.Wire Wrapping Machine
2.Wire pay off stand
3.Packager
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
gabion basket installation machine
1.We are professional wire mesh machine manufacture with 15 years experiences in china.
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.
2.Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, Construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine ,Razor barbed wire machine ,Chain link fence machine ,Expanded metal mesh machine ,Barbed wire machine ,Gabion basket installation machine and related accessories.
Welcome to visit our office and factory .
If you have any problem ,let me know,will help you try my best.
