Automatic woven wire mesh weaving machine
Why Choose us
Automatic woven wire mesh weaving machine
1.Have professional machine design department
2.Have electronic Reserch&Development department
3.Have ISO9001:2008 certificate
4.Have professional debuggers
5.Have After-sales service team(24hours online)
Product description
Our factory have two type automatic woven wire mesh weaving machine ,one is single wire feeding type,another is double wire feeding type Two type machine's main parameter and picture as the below.
Single wire feeding-----Automatic woven wire mesh weaving machine
Wire diameter :1.5-4.0(Not:steel wire standard:GB3081-82)
Hole size:20-100mm
Mesh width:600-4000mm(can be customized)
Capacity:60-140m²/h
Rated voltage:380V,50Hz
Motor power:6.0kw
Weight:2.8T
Out side:3700*850*1600mm/3500*1000*1500mm/2800*1400*1400mm
Double wire feeding ------- Automatic woven wire mesh weaving machine
Wire diameter:2.0-4.0mm(Not:steel wire stand:GB3081-82 YB544-65;Material standard:BIF-B3F)
Hole size:30-110mm
Mesh width:600-4000(can be customized)
Capacity:80-120m²/h
Power:9.0kw
Rated voltage:380v 50Hz
Dimension:5700*1430*1800mm/4100*1700*1250mm
Feature of the automatic woven wire mesh weaving machine
:
Automatic woven wire mesh weaving machine has the advantages of simple operation, It covers small area.automatic folding, bending, shear, finished product automatic folding, raw material consumption low, save manpower, time . A person can operate several machines .
Suitable wire :
High-quality low-carbon steel wire,Galvanized Steel Wire,Stainless steel wire,Aluminum alloy wire,Aluminum-clad Steel Wire.
Application on automatic woven wire mesh weaving machine

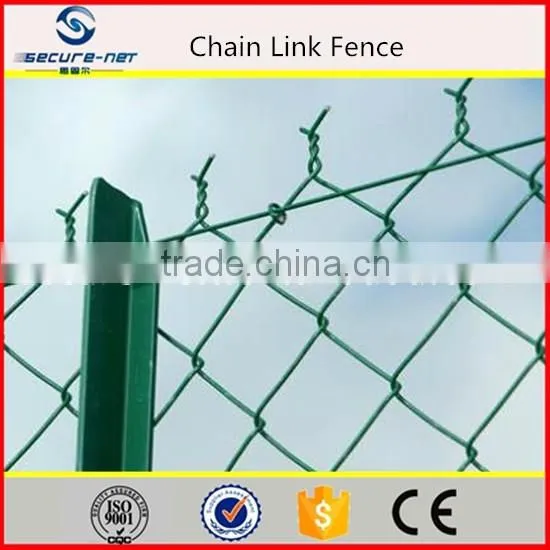

Use widely, breeding chickens, ducks goose rabbit and the zoo enclosure, mechanical equipment protection, highway guardrail, sports venues fence, the coal mine supporting, the road green belts fence.
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
Automatic woven wire mesh weaving machine
1.We are professional wire mesh machine manufacture with 15 years experiences in china.
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.
2.Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, Construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine ,Razor barbed wire machine ,Chain link fence machine ,Expanded metal mesh machine ,Barbed wire machine,Automatic woven wire mesh weaving machine and related accessories.
Welcome to visit our office and factory .
If you have any problem ,let me know,will help you try my best.
