China best price barbing machine/barbed wire roll machine/barbed wire mesh machine (manufacturer)

Types of barbing machine: CS-A, CS-B, CS-C,

Suitable material of barbing machine: low-carbon wire, galvanized wire and pvc coated wire

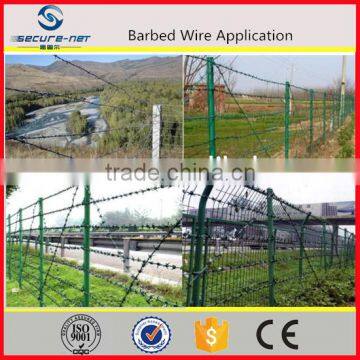

Application of barbing machine: Safety protection

CS-A Normal Double Twisted Barbing Machine   Motor: 3kw Weight:1500kg Rated output: 80-120kg/h Overall dimension: 1900×1300×980mm Wire collection part size: 1800×750×750mm  Barb pitch spacing: 3″, 4″, 5″ or 4″, 5″, 6″ Strand diameter: 1.8-3.0mm Wire diameter: 1.7-2.8mm Rotating speed of drive shaft: 432r/min

CS-B Single Twist Barbing Machine   Motor: 2.2kw Weight:1200kg Rated output: 50-60kg/h Overall dimension: 1900×1300×980mm Wire collection part size: 1300×800×700mm  Barb pitch spacing: As required Strand diameter: 1.6-2.6mm Wire diameter: 1.6-2.2mm Rotating speed of drive shaft: 357r/min

CS-C Normal And Reverse Barbing Machine   Motor: 2.2kw Weight:1200kg Rated output: 40kg/h Overall dimension: 1900×1300×980mm Wire collection part size: 1300×800×700mm  Barb pitch spacing: 3″, 4″, 5″ or 4″, 5″, 6″ Strand diameter: 1.5-2.8mm Wire diameter: 1.5-2.6mm Rotating speed of drive shaft: 432r/min

Package of barbing machine

The barbing machine packaged by plastic film and wooden box.
1. The main machine is usually packaged by plastic film and fixed in the container by steel wire rope to make it stable.
2. The spare parts and control cabinet are loaded in wooden box.
3. One 20 feet container needed.

barbing machine

1. Warranty: 12 months after machine installed except vulnerable parts. Under warranty, we'll change broken part for free if damage caused by machine itself.

2. Technician Number: one per machine

3. 24 hours' hotline service.

4. Installation, training & maintenance: we provide complete installation instructions and circuit diagram. If needed, we'll send best technician to your factory for installation and training.

Hebei Secure-Nett Fence Facility Co., Ltd.

1. Company History

     founded in 2000, certified to ISO 9001 in 2004.

     16 years' experience in machinery making

     self-researched and developed center,11 national patents

     100-200 workers

2. Main machine products:

    (Customized machines available)

    building mesh welding machine,

    reinforcing mesh welding machine,

    fence mesh welding machine,

    brick force mesh welding machine,

    gabion mesh machine,

    chain link fence machine,

    razor barbed wire machine,

    expand mesh machine,

    fully automatic wire mesh welding machine

3.  Global market

    With competitive price and high quality, our machines are popular home and abroad. Until now, we have been exported to over 30 countries and areas.

    Welcome you to visit our factory!
