Manufacturing 2016 New Type General Industrial Barbed Wire Fence Machine Equipment

barbed wire fence machine equipment

Application:  low-carbon wire, galvanized wire, pvc coated wire

There are three types of barbed wire machine:

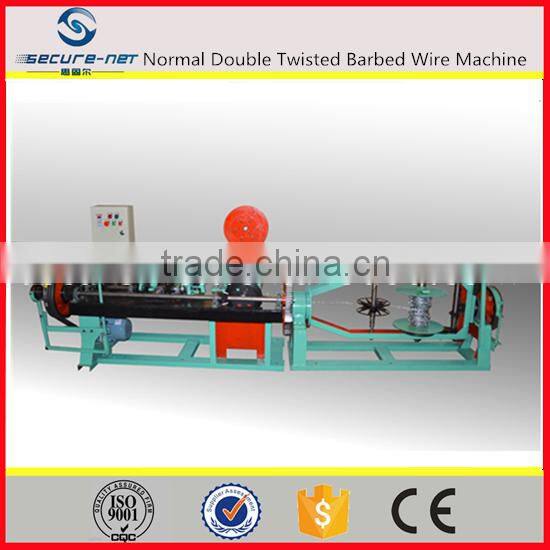

CS-A   Double twisted barbed wire machine

Motor:                                                  3KW
output speed:                                      80kg-120kg/h
weight:                                                 1500kg
overall dimension:                              1900mm*1300mm*980mm
collection part size:                            1800mm*750mm*750mm
barb pitch spacing:                             3''-6''
Strand diameter:                                 1.8-3.0mm
wire diameter:                                     1.7-2.8mm
Rotating speed of Drive shaft:           432r/min

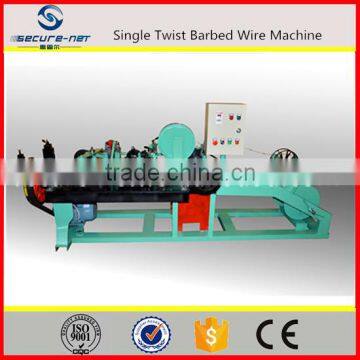

CS-B Single twist barbed wire machine technique parameter:
motor:                                            2.2kw
output speed:                               50kg-60kg/h
weight:                                          1200kg
overall dimension:                       1900mm*1300mm*980mm
collection part size:                     1300mm*800mm*700mm
barb pitch spacing:                      as required
Strand diameter:                          1.6-2.6mm
wire diameter:                              1.6-2.2mm
Rotating speed of Drive shaft:    357/min

CS-C Normal and reverse barbed wire machine technique parameter:
motor:                                          2.2kw
output speed:                              40kg/h
weight:                                        1200kg
overall dimension:                     1900mm*1300mm*980mm
collection part size:                    1300mm*800mm*700mm
barb pitch spacing:                    3''-6''
Strand diameter:                        1.5-2.8mm
wire diameter:                            1.5-2.6mm
Rotating speed of Drive shaft : 432r/min

Our packaging:

Other information;

Any products you are interested in, please feel free to contact with us.
