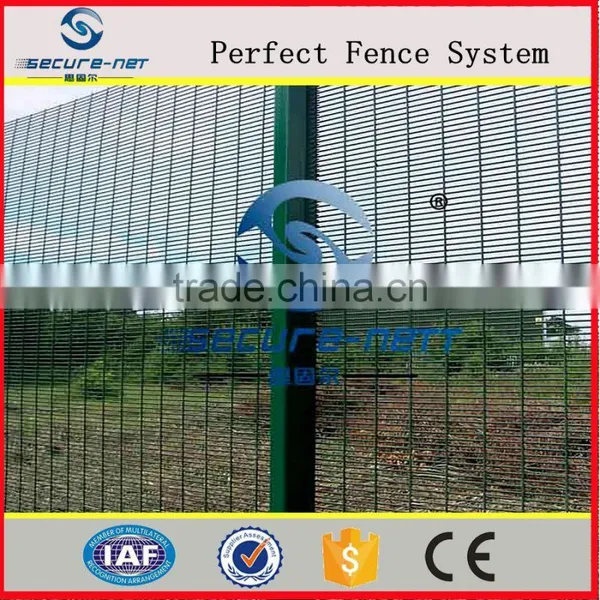

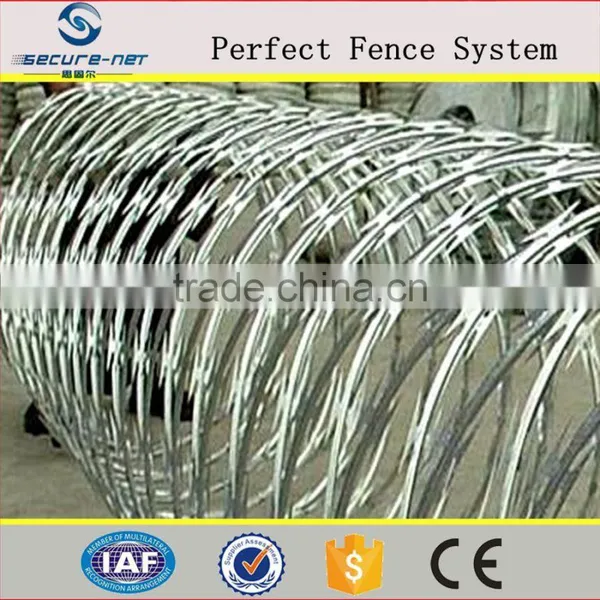

358 security fence prison mesh/high density mesh fence/Razor Wire Security Fencing
1.Product Description

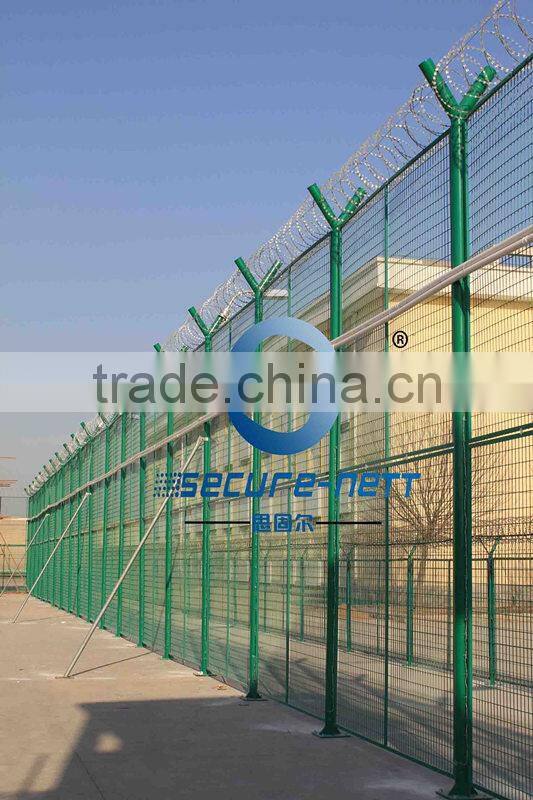

The ultimate in high security perimeter protection, this system is extensively used when defendable space is paramount,used throughout the world in varying application. Secure-nett 358 mesh fence is highly regarded as the most difficult mesh security fence to penetrate, providing an excellent defence against climbing and cut-through

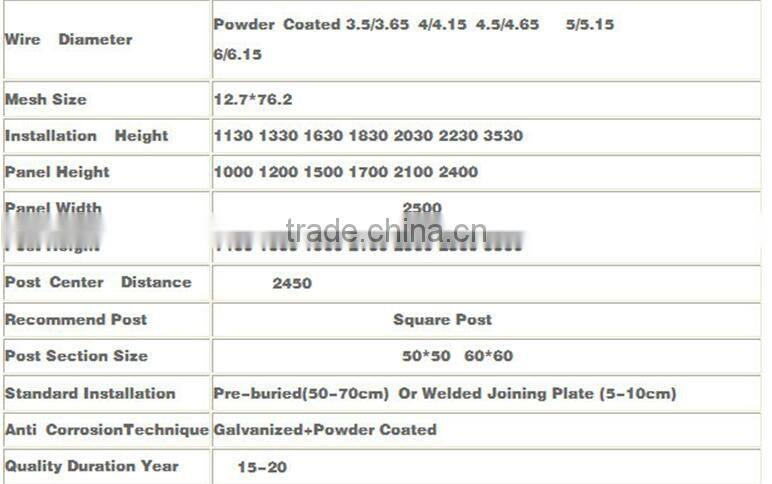

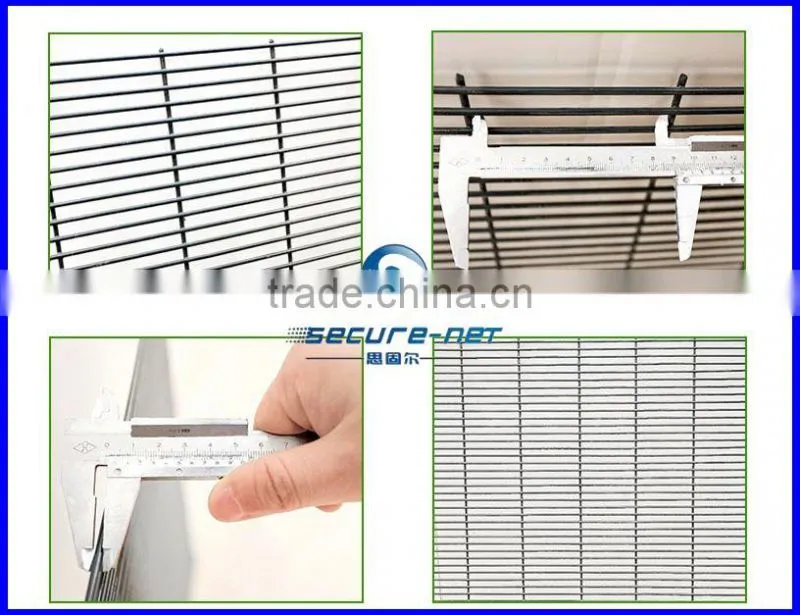

2.358 security fence prison mesh specification details
3.Surface Treatment
1) Hot Dipped Galvanized
Hot dipped galvanized 358 high security fence panel zinc coated is 300-600sq.m.,It has great corrosion resistance and anti-rust,they outdoor live years can be reach 20 - 25 years.

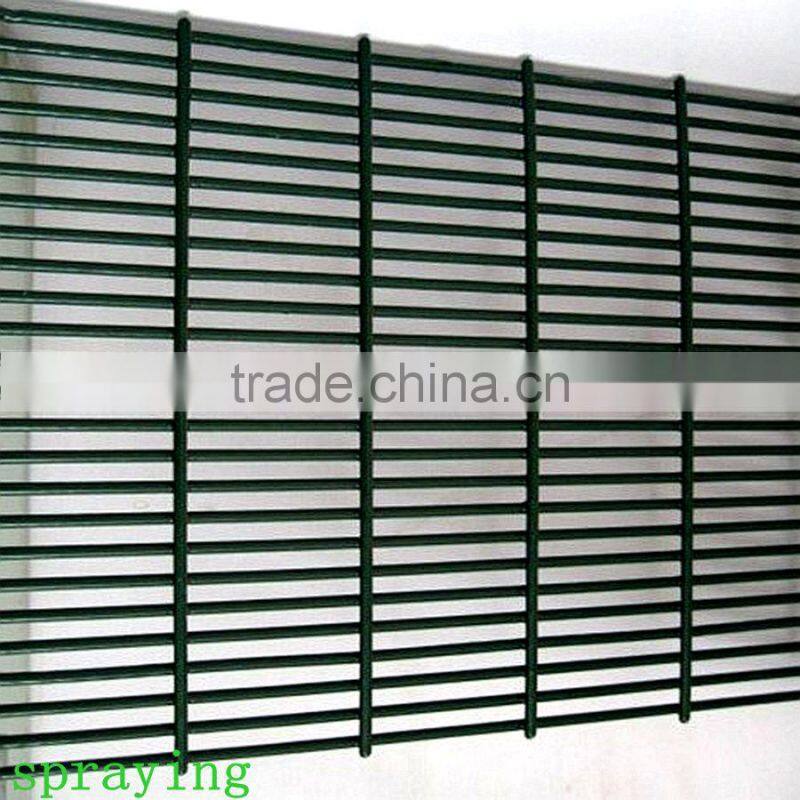

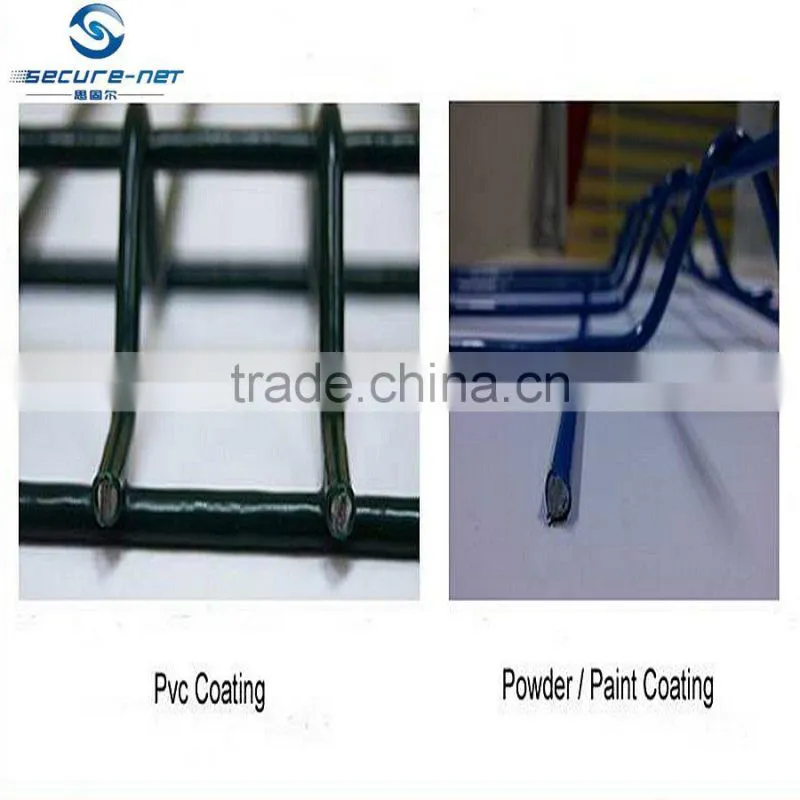

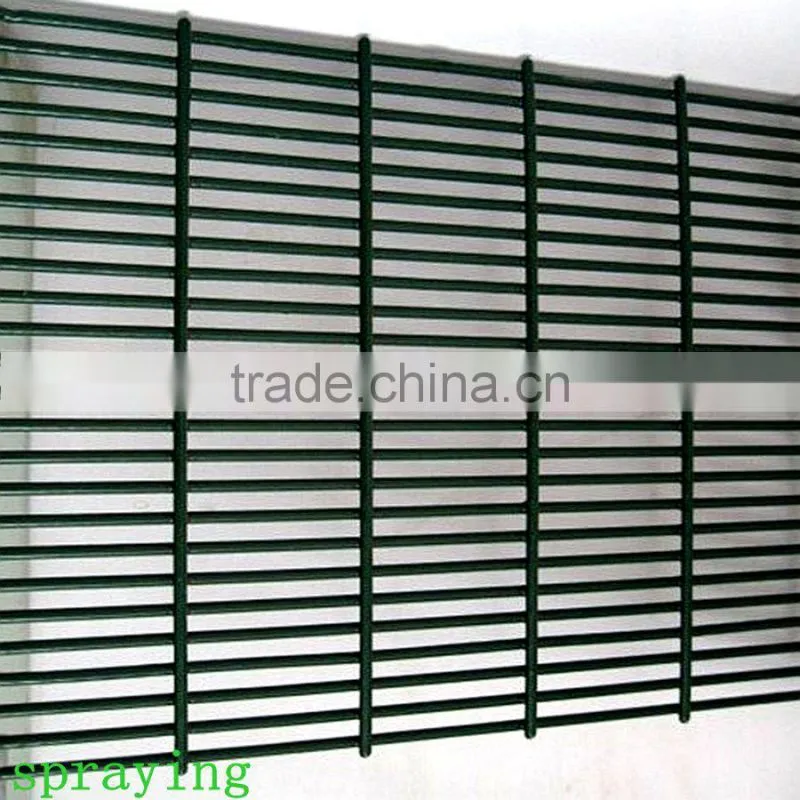

2) PVC coated /powder coated
The powder, after powder spraying,the fence will be very smooth ,bright ,have great corrosion resistance, outdoor use year can reach 15 - 20 years.Please see below pvc coated wire mesh fence pictures show

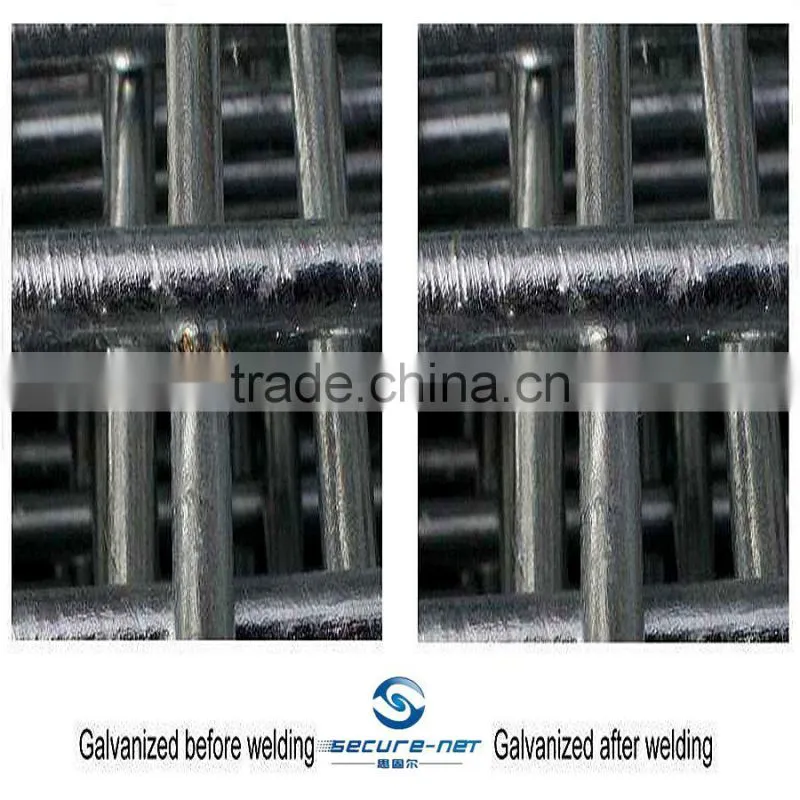

Comparison diagram

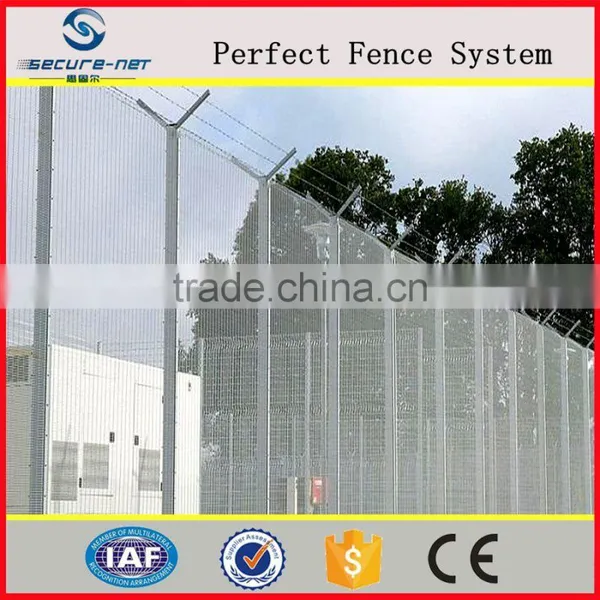

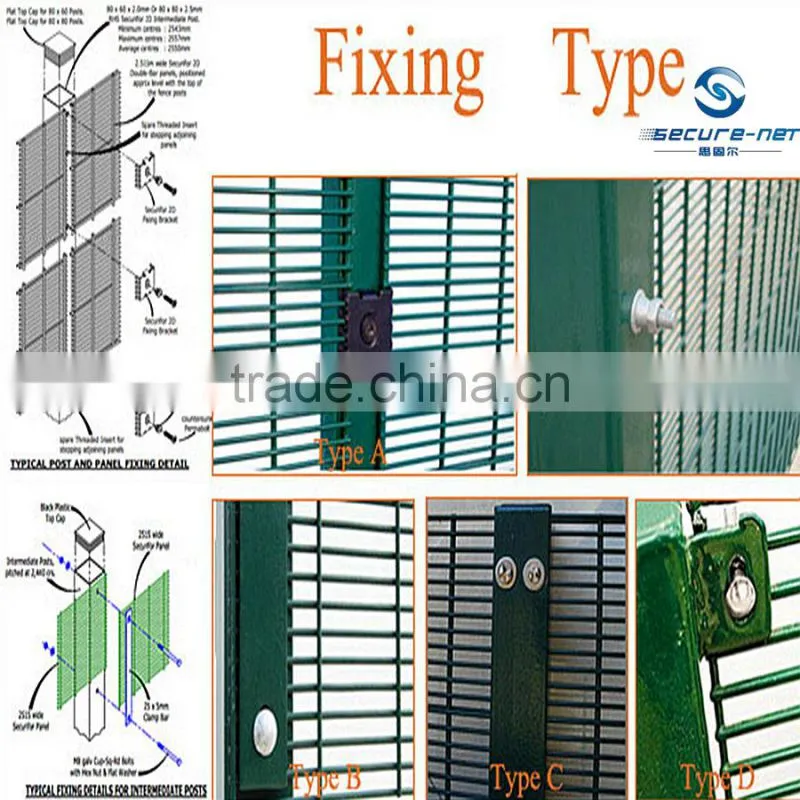

4.Installation

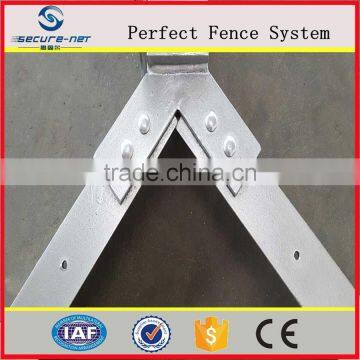

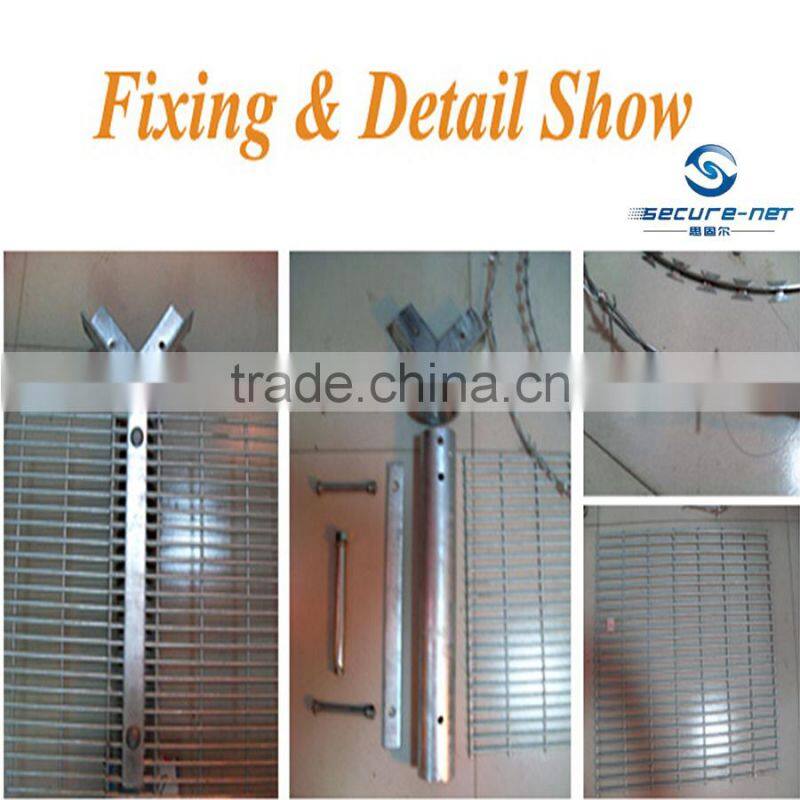

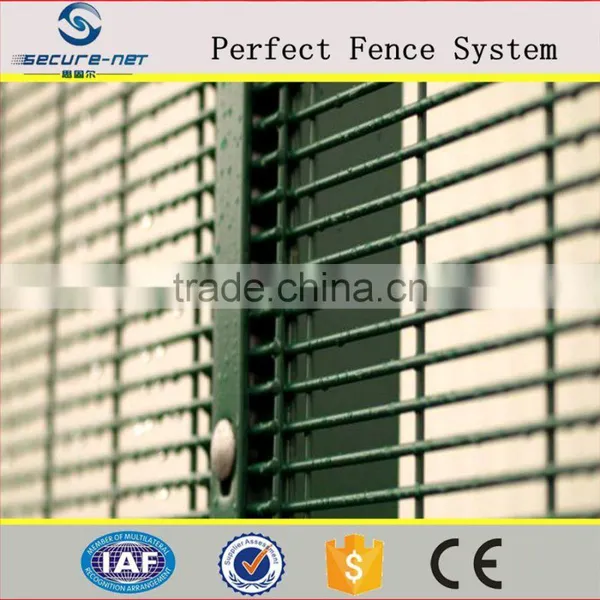

The different fixing type
Simple picture
5.Product Flow
Mesh Fence Panel Process
1.Material:galvanized low carbon steel wire
2.Straighten&cut short the wire
3.Resistance Welding
4.CNC Bending

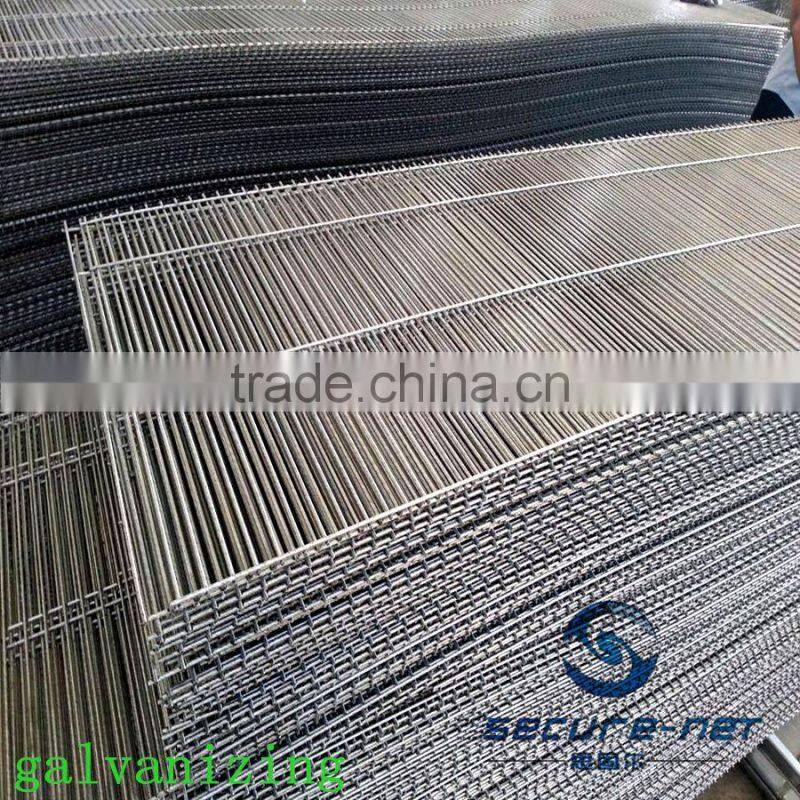

5.Galvanizing
6.Parkerzing
7.Powder/pvc coating
8.Packing
Mesh |
Wire Thickness |
Surface Treatment |
Panel Width |
Height |
76.2x12.7 |
Horizontal wire:3.0 ,3.5,4.0 mmVertical wire :4.0mm |
Galvanized and Electrostatic polyester coated or Hot dipped galvanized |
2.50mOr 2.20m |
1800mm |
2000mm | ||||
2100mm | ||||
2200mm | ||||
2400mm | ||||
2500mm | ||||
3000mm |

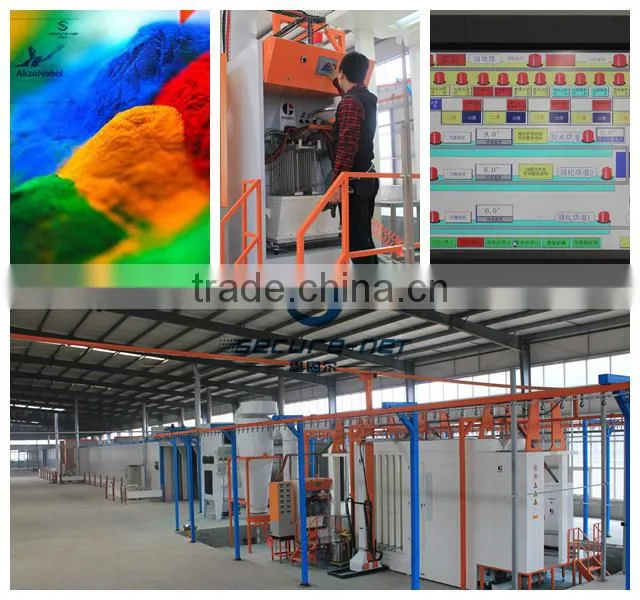

To achieve ideal electrostatic spraying polyester effect,our spraying power adopts AKZO NOBEL,which manufacturer is one of the world's top 500 enterprise.Our company is the only one enterprise who purchase ITW GEMA electrostatic spraying polyester equipment for fence surface treatment in fence industry.
Mesh Fence Post Process
1.Cut short the tube
2.Hole friling
3.Galavanizing
4.Sandblasting
5.Pvc/powder coating
6.Rivet nuts installing
7.Cups installing
8.Packing
Profile |
Wall Thickness |
Surface Treatment |
Length |
Rainhat |
80x60mm |
3.00mm |
Galvanized and Electrostatic polyester powder coated or Hot dipped galvanized |
On the basis of panel height |
Plastic or Metal |

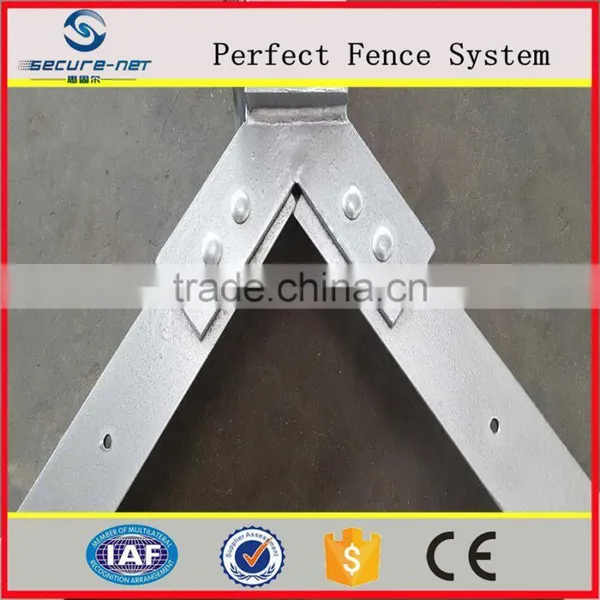

358 security fence C type Fence Post
Profile |
Wall Thickness |
Surface Treatment |
Length |
Rainhat |
83x64mm |
3.00mm |
Galvanized and Electrostatic polyester powder coated or Hot dipped galvanized |
On the basis of panel height |
Plastic or Metal |

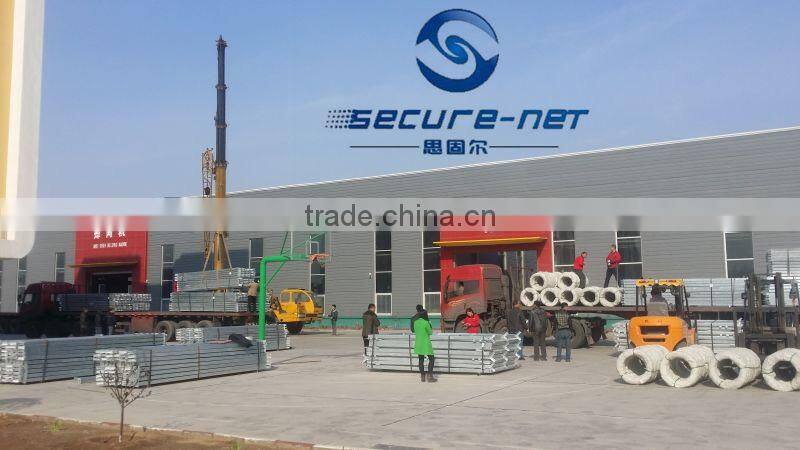

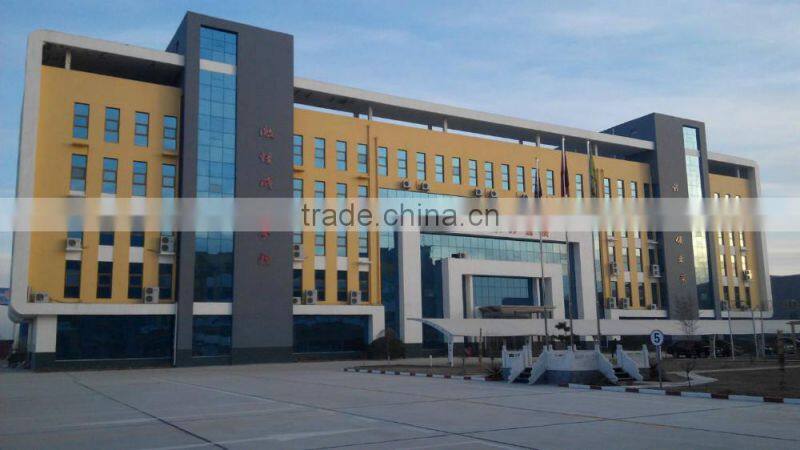

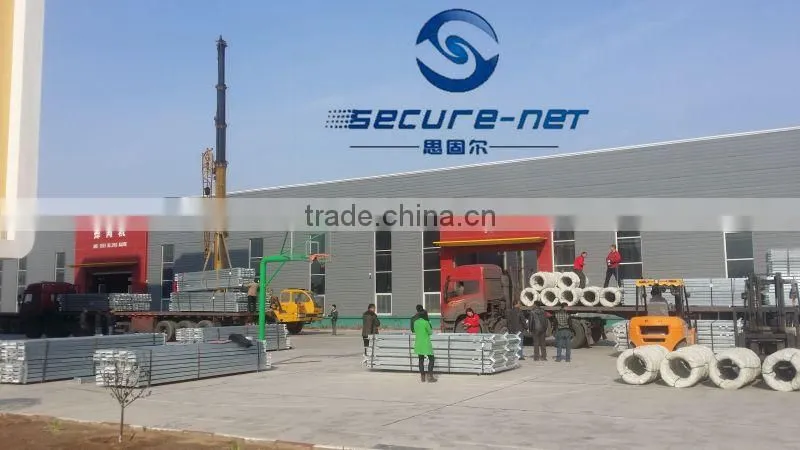

Company Introduction
Hebei SECURE NET Fence Facility Co., Ltd. is committed to professional and comprehensive site protection product development and production, providing global customers with high-quality advanced metal fences, gates and other protective all steel products and services. SECURE NET fence on the market in a unique design concept will uprights with welded mesh perfectly together, can be required to provide our customers the best solutions.
Enterprise Culture
Promises must be kept and action must be resolute.
Result is the first,excuse is the second.
Efficiency first,success or failure second.
Packaging&Shipping
1.It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
2.It has 4 metal corners to keep the pallet more strong.
3.It has metal plate under the plastic bandage to reduce the apressure of fence panels.
4.Wooden plate on top which can protect the fence panels avoid being crushed by other pallets.
Our Service
1.15 days after receive the deposit payment.
2.We will choose high quality and low price od the shipping company.
3.Loading the goods,we will track all the way,to ensure product safety,quick to arrive at the designated ports.
4.Company for products and accessories ,for a long time to be able to provide various products accessories at cost to the customer at any time
We are warmly welcome you visiting our factory!
Any questions or suggestions,please feel free contact with us.
