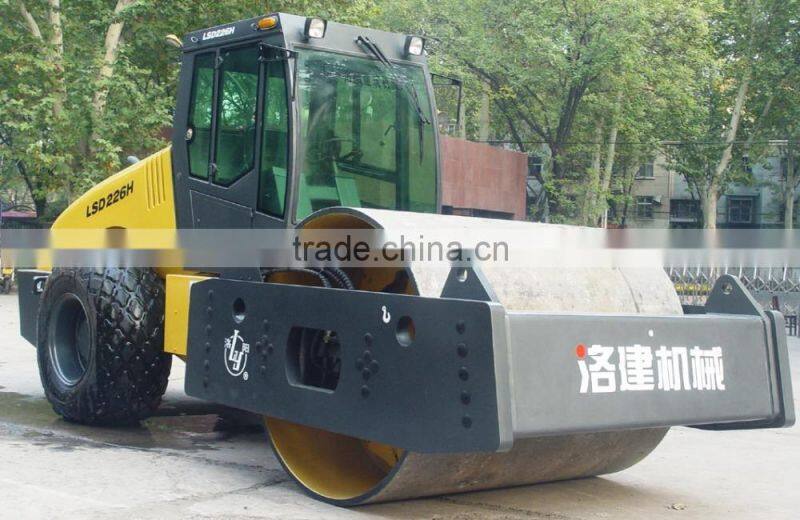

LSD226H New Types of Hydraulic Vibratory Road Roller Price
Hydraulic vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
Main Features
1.Powerful Cummins diesel engine; Optional diesel engine with electronic control.
2.Hydrostatic wheel&drum travel drive operated by a single lever at two range infinitely variable speeds.
3.Parking brake hydraulically mounted in central input of the driving axle with oil-cutoff braking for reliable safety.

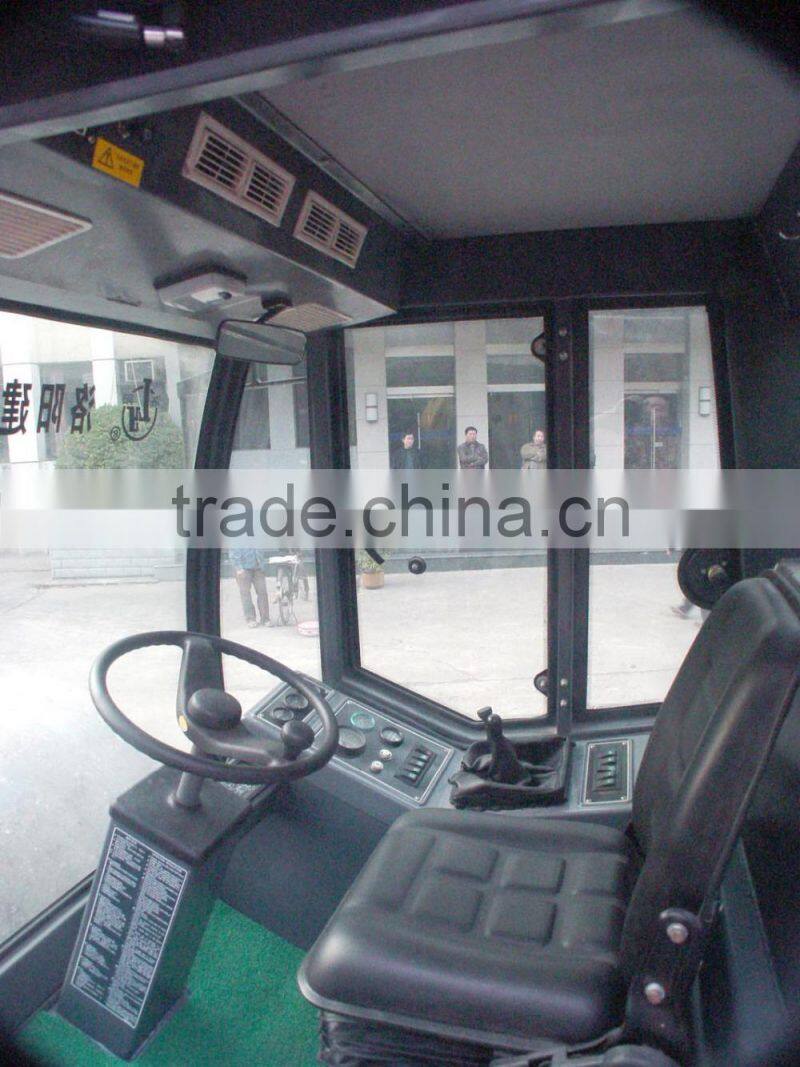

4.Circle arc glasses cabin with air conditioner(option) and curve engine hood for unique streamline shape appearance.

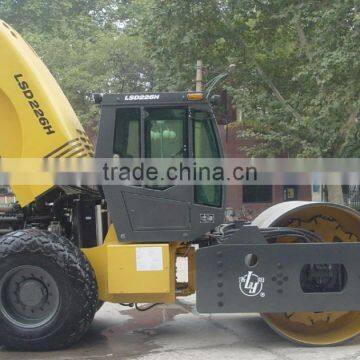

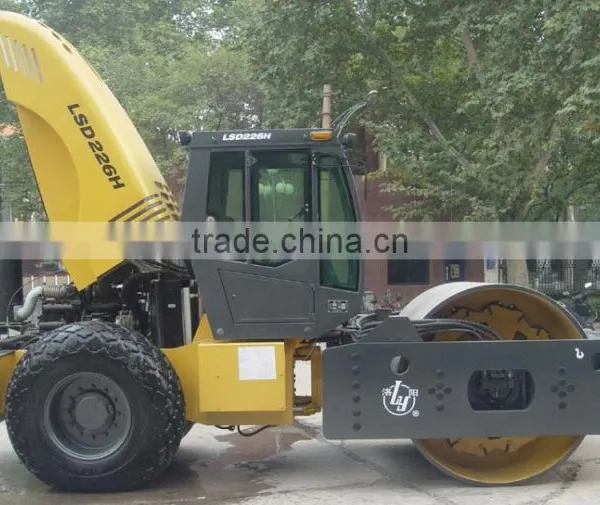

5.Engine mounted with backward power output and turnover engine hood allow easy access to the main hydraulic components.
Technical Specifications
| Type | Unit | LSD214H |
| Operating mass | kg | 14000 |
| Static linear load | N/cm | 373 |
| Vibration amplitude | mm | 1.8/0.9 |
| Vibration frequency | Hz | 30/36 |
| Centrifugal force | kN | 290/200 |
| Travel speed | km/h | 10 |
| Gradeability | % | 40 |
| Turning radius | mm | 6500 |
| Drum width | mm | 2100 |
| Drum diameter | mm | 1500 |
| Wheelbase | mm | 3050 |
| Ground clearance | mm | 472 |
| Diesel engine model | Cummins6BT5.9 | |
| Diesel engine power | kW | 110 |
| Overall dimensions | mm | 6000*2250*2950 |

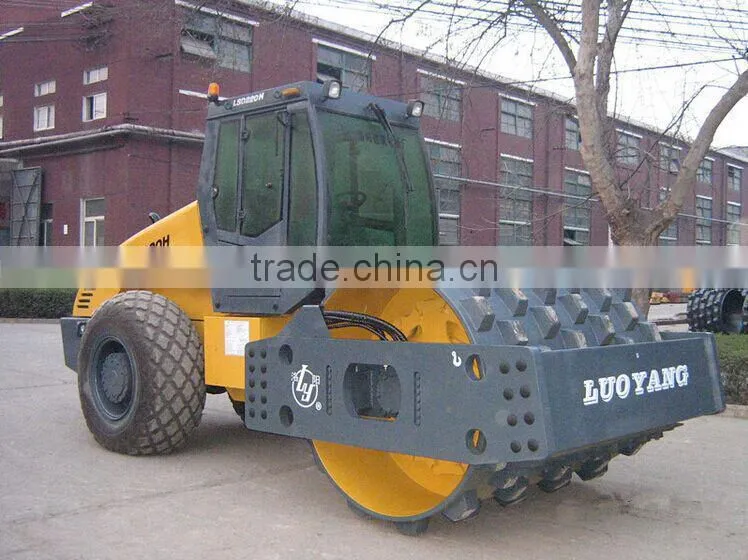

Optional part: Intergrated padfoot drum

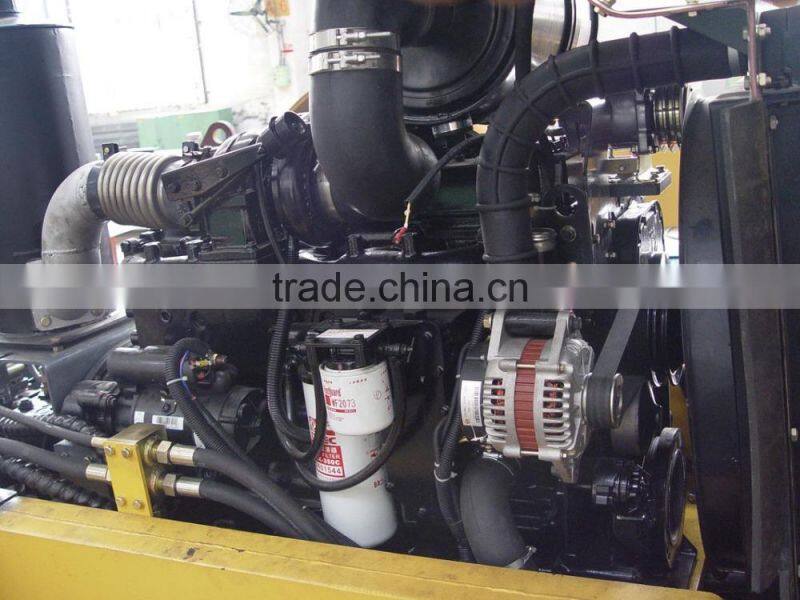

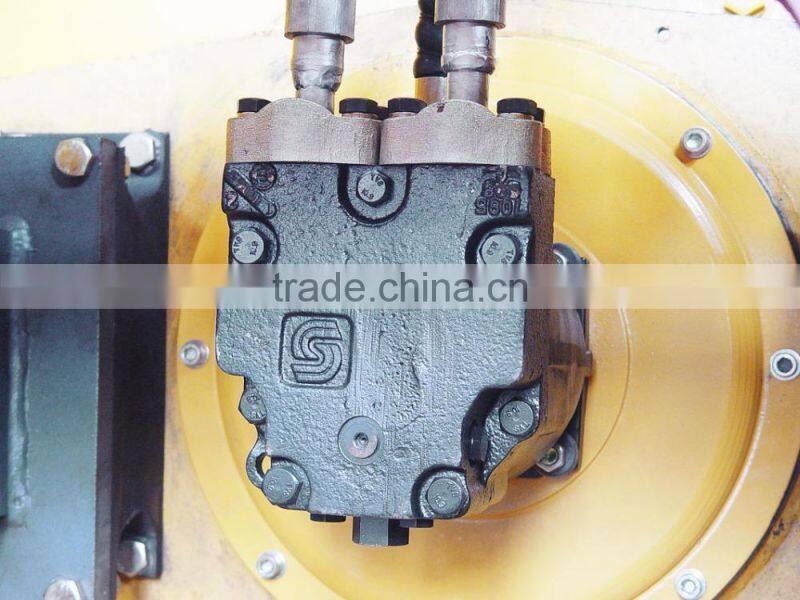

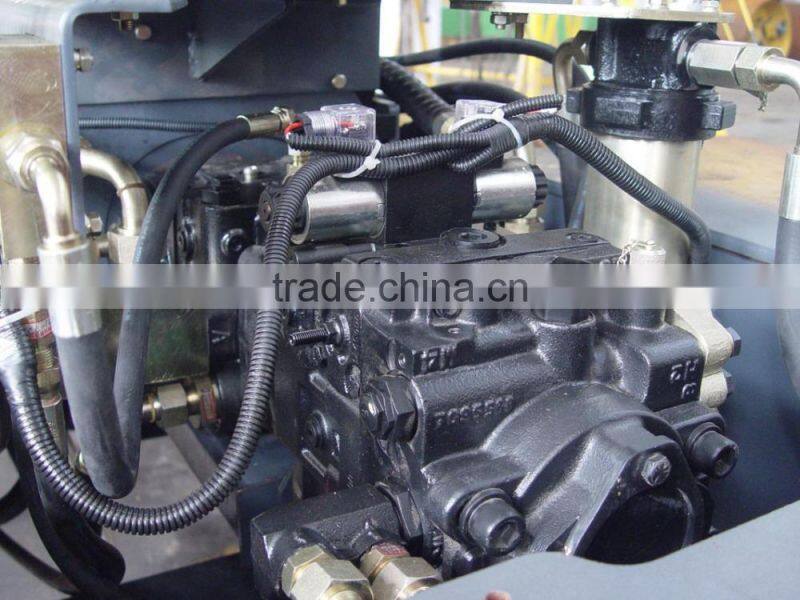

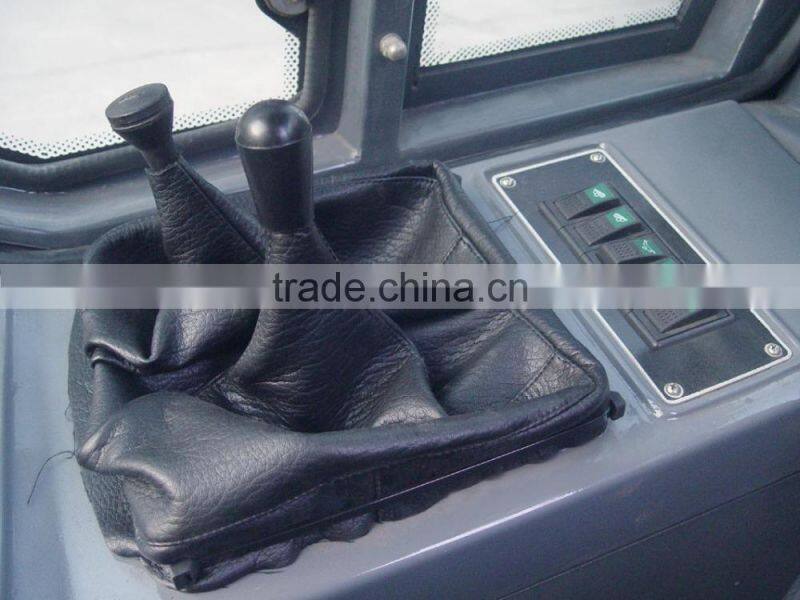

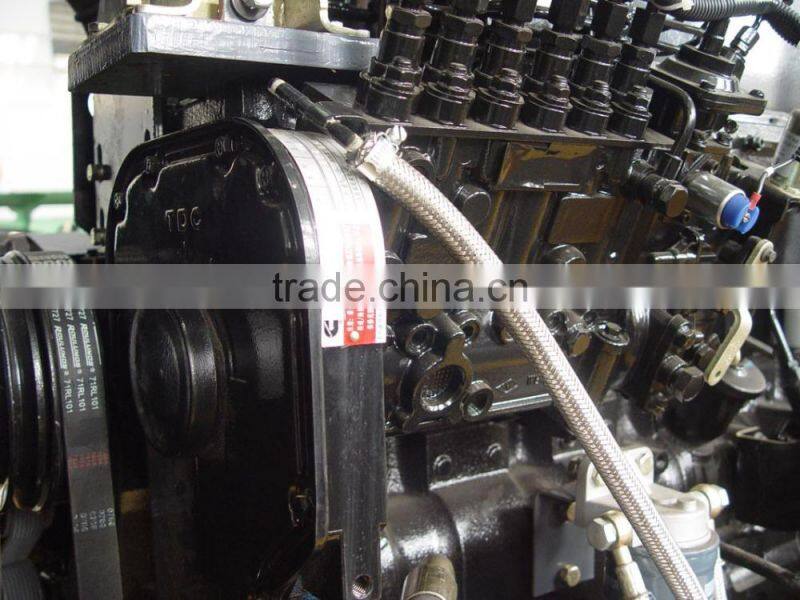

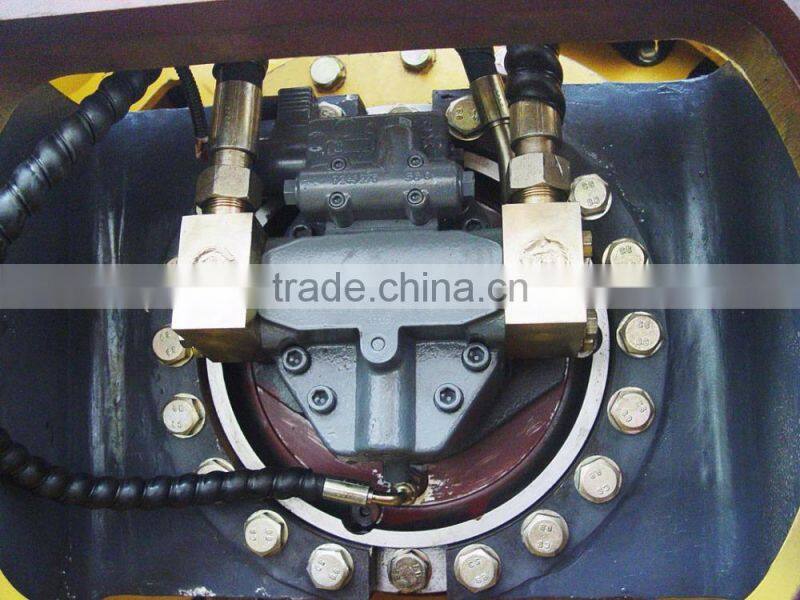

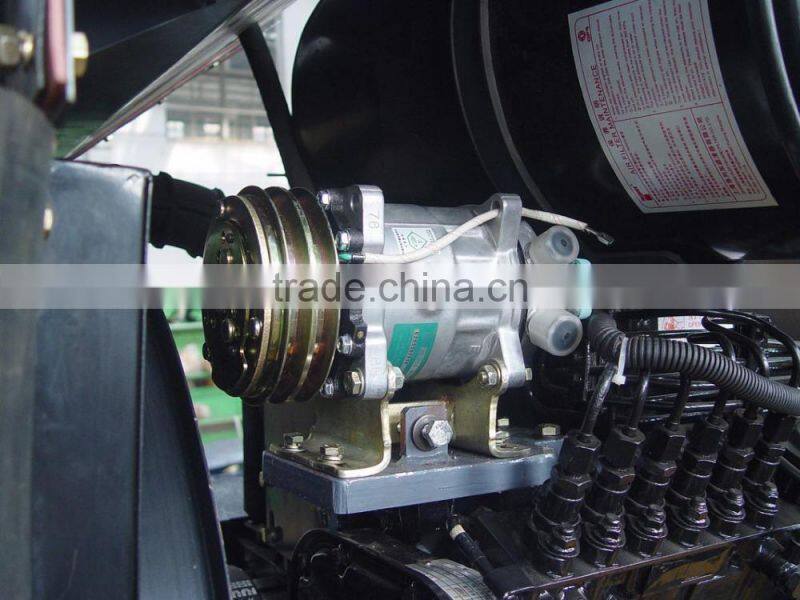

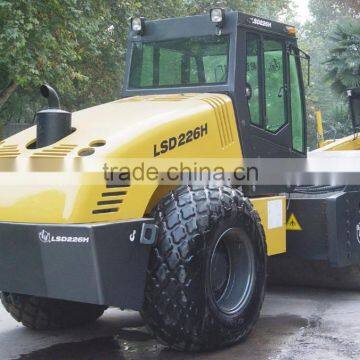

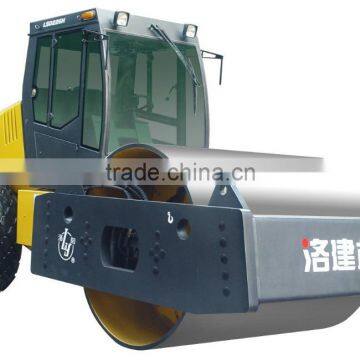

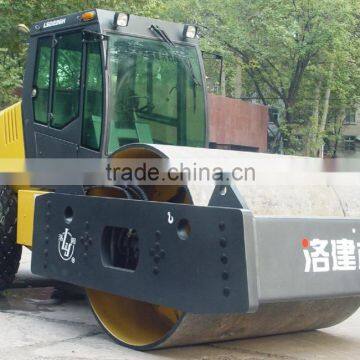

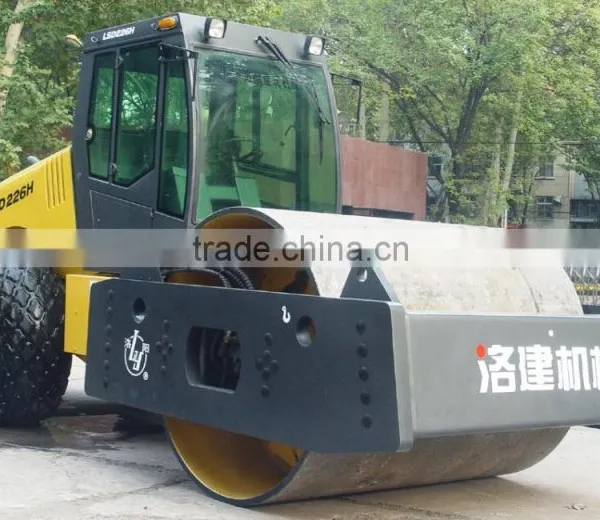

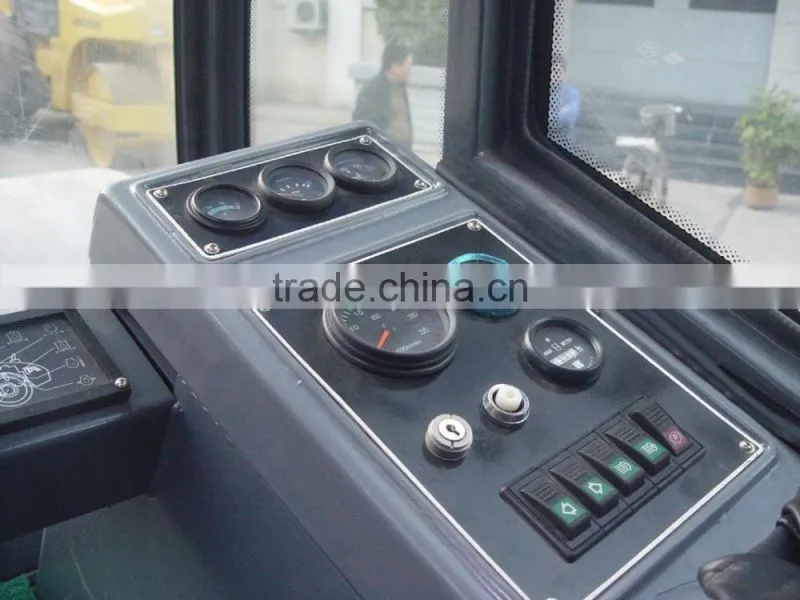

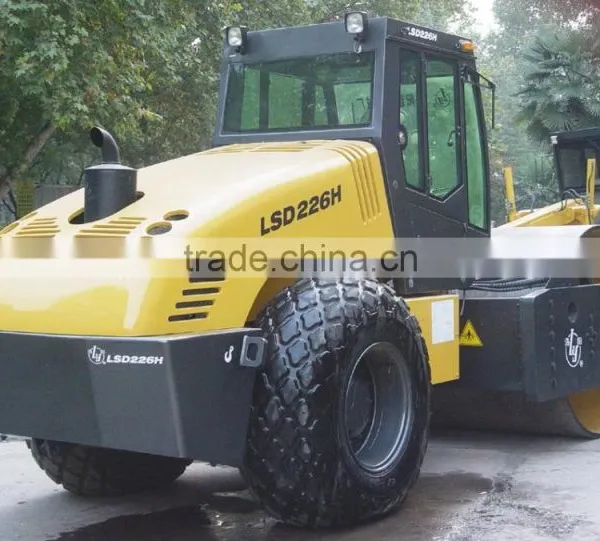

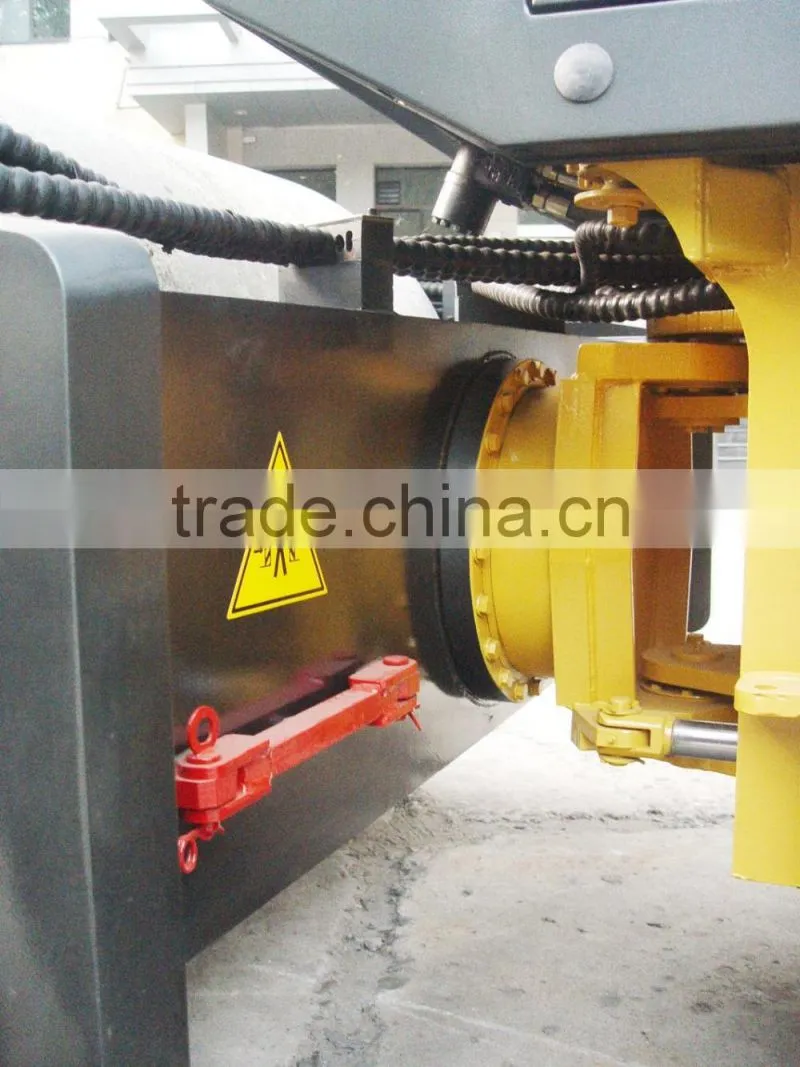

Detail photos
