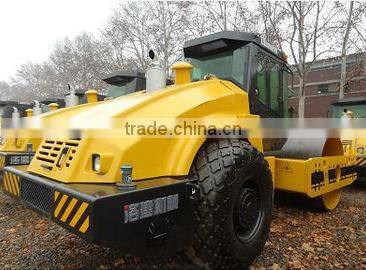

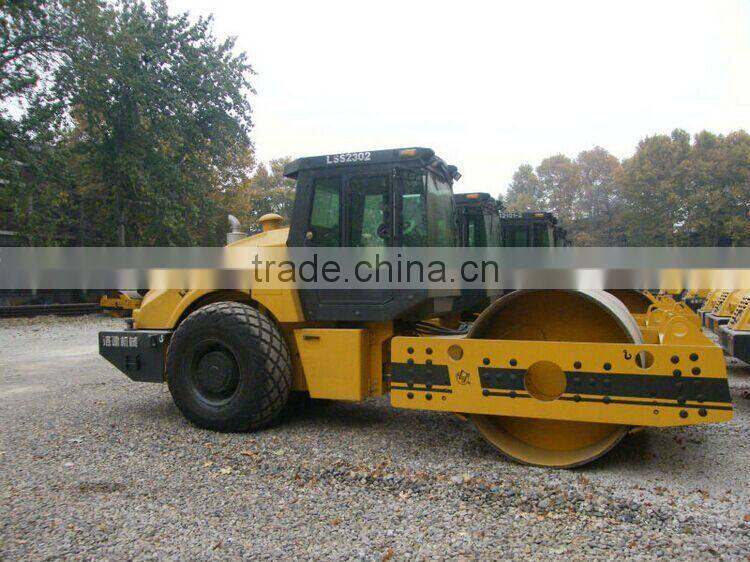

LSS2602-2 ISO High Quality Factory Price Road Roller
Optional part: Intergrated padfoot drum
Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.
Main Features
1.GUO II emission standard engine. Engine cooling air-path structure and large capacity of fuel tank.
3.Driving axle with greater braking torque, parking brake by cutting air, safety and reliability
4.Dual amplitude setting of vibration. New types of vibration device and drum travel bearing structure. Heavy-duty gearbox.
5.Joint-moving mechanism of the clutch pedal with engine throttle. Adjustable instrument desk with liquid crystal instrument panel.
6.MP3 supported music system with USB and SD interface. Modernized style overall appearance. Driver's cabin with T type angular glasses.
Technical Specifications
| Type | Unit | LSS2602-2 |
| Operating mass | kg | 26000kg |
| Static linear load | N/cm | 598 |
| Vibration amplitude | mm | 2.0/1.0 |
| Vibration frequency | Hz | 28/35 |
| Centrifugal force | kN | 410/330 |
| Travel speed | km/h | 10.5 |
| Gradeability | % | 35 |
| Turning radius | mm | 7500 |
| Drum width | mm | 2130 |
| Drum diameter | mm | 1600 |
| Wheelbase | mm | 3530 |
| Ground clearance | mm | 445 |
| Diesel engine model | SC8D190 | |
| Diesel engine power | kW | 140 |
| Overall dimensions | mm | 6800*2340*3000 |
Detail photos
Optional part: Intergrated padfoot drum
