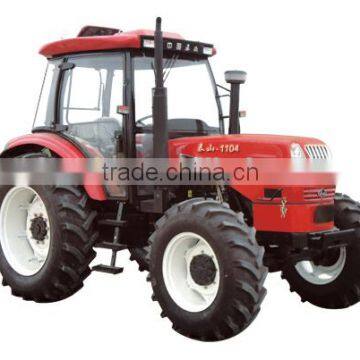

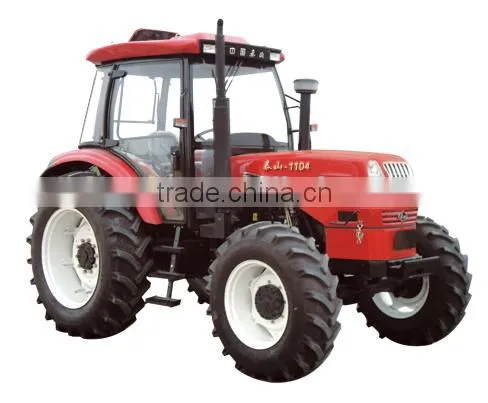

100hp Four Wheel Tractor

Model

Taishan-1004-P

Engine

Model

YC4B115Z-T11

Rpm (r/min)

2300

Rated power (KW)

73.5

Theoretical

Speed

No of forward gear

8/16

Speed (Km/h)

0.46-34.85

No of reverse gear

8/4

Speed (Km/h)

0.62-10.78

Wheel base (mm)

                               2195

Wheel tread (mm)

Front wheel

1610-1950 (Adjustable)

Rear wheel

1720-2120 (Adjustable)

Tires

Front wheel

11.2-24

Rear wheel

16.9-34

Overall dimensions(L x W x H) (mm)

4300x2250x2850

Ground clearance(mm)

379

Operating Weight(kg)

3800

Min Turning Radius(m)

4.3+-0.2

Rated Traction Force (KN)

21.7

Max lifting force(610mm to hitch point(KN)

17.5

Steering type

Mechanical

Hitch type

Three-point hitches, ball socket,rear mounted
