Wheel Loader With Telescopic Boom ( Telescopic Loader )

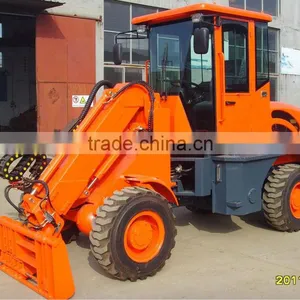

Wheel Loader With Telescopic Boom ( Telescopic Loader ) thumbnail-1
Wheel Loader With Telescopic Boom ( Telescopic Loader ) photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Model Number:
TM1500
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Taian Luyue Modern Agricultural Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Model Number TM1500
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 4320mmx2670mmx4250mm
Rated Load 1500kg
Warranty 1 year





1. The telescopic boom which can reach 4.2m greatly increase it's working scope.

2. The articulated structure and axle transmission design makes it powerful and has better pass through ability

3. The seals, valve & joystick are famous oversea products which guarantee that it's a reliable long lasting machine.

4. Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5. Quick coupling system, joystick and buttons makes the operating easy and convenient.





Specifications of  TMC1500 telescopic wheel loader



1.0 Engine Details

(1) Model: Chinese E-mark approved Changcai4L68

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:37KW (50.32H.P.)

(4) Rated Speed:2200 r/p.min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h



2.0 Transmission System

Hydraulic converter + drive shaft + axles



3.0 Bucket

(1) Bucket Capacity: 0.65 m3

(2) Bucket width: 1700mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 1500kg including attachment



4.0 Overall Dimensions

(1) Overall Length: 4320mm

(2) Overall Height:2670mm

(3) Overall Width: 1720mm

(4) Max. lifting Height:4250mm



5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4950mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) Quick coupling system

(5) Joystick

(6) Self levering



6.0 Brake System

(1) Service Brake:Four Wheel Chuck brake

(2) Parking Brake:Hand operated



7.0 Tyre

(1) Model:12-16.5, 12ply (2)Width: 307mm(3) Diameter: 831mm



8.0 Wheelbase: 2400mm


9.0 Track: 1345mm



10. system pressure:20Mpa; Hydraulic output:70L/min
