As the first one manufacturer of skid steer loader, and the e Original and ONLY manufacturer of JC skid steer loader.
Since 1993,we produce more than 85% Chinese brand skid steer loader.
The main Skid steer loaders adopt Quick joint changing device.
The connecting sizes of the attachments are the same as that of of Bobcat,Case and New Holland etc.
In this case , all the skid steer loader attachments can be used on Bobcat,Case and New
Holland etc loaders and all Bobcat,Case and New Holland etc attachments also can be used on JC skid
steer loaders. 4 in 1 bucket,pallet fork,dozer blade,snow blade,grapple bucket,fork grapple,backhoe,backhoe arm,
sweeper,angle broom,breaker,planer,trencher,auger,vibratory roller,disk type trencher,mixer,snow blower,grass cutter,
rock bucket,bale handler,utility fork,tree spade,scraper,drum scraper,rock grapple bucket,bucket mixer,multi-direction grass cutter,roto tiller,tire chain,hedge trimmer,standard bucket etc are the main attachments.
OEM is possible.

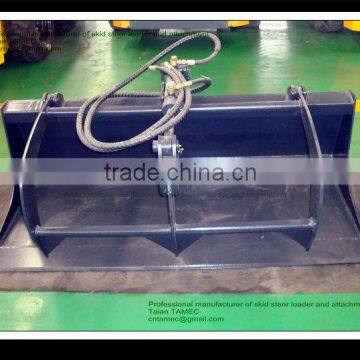

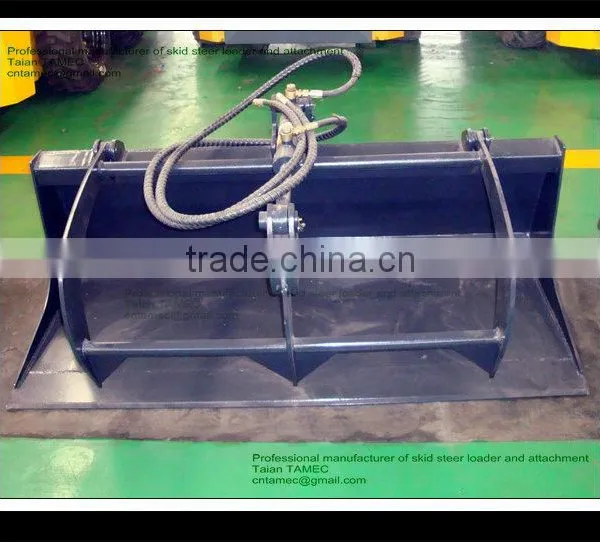

Grapple Bucket for Skid Steer Loader
1.Max Grabbing Weight:1 ton
2.Grapple Diameter:460-850mm
3.Bucket Diameter:0.3m3
Grapple Bucket For Skid Steer Loader
| Item | Unit | DZC10 |
| Max.Grabbing Weight | kg | 1000 |
| Grapple Diameter | mm | 460-850 |
| Bucket Capacity | m3 | 0.3 |
| Overall Dimensions(L*W*H) | mm | 160*950*820 |
| Weight | kg | 320 |
Skid steer loader attachment/solutions Grapple bucket
Item | Single cylinder | Double cylinder |
Operating width(mm) | 1700 | 1700 |
Operating height(mm) | 780 | 780 |
Operating length(mm) | 920 | 920 |
Weight(kg) | 270 | 300 |
Operating pressure(mpa) | 16 | 16 |
mix
Item | 100 | 200 |
Capacity(m3) | 0.1 | 0.2 |
Rpm (r/min) | 5-30 | 5-30 |
Operating pressure(Mpa) | 16 | 16 |
Operating flow(L/min) | 50-100 | 50-100 |
Weight(kg) | 300 | 360 |
Length(mm) | 1200 | 1300 |
Width(mm) | 1160 | 1200 |
Height(mm) | 1100 | 1200 |
broom
