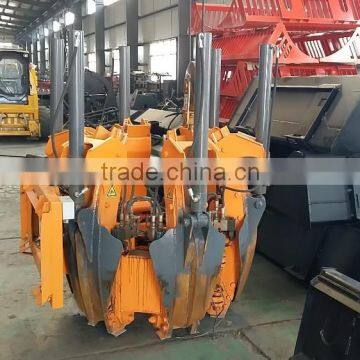

Name: Skid Loader Tree Spade
Brand: super monkey
SKU: 140841748
Availability: InStock

ALL CATEGORIES

Skid Loader Tree Spade

Send Inquiry to This Supplier

Item	35	55	60	70	80	90	100	110	120	140	170	180	200	220	250
The upper part of sphere dia(mm)	350	550	600	700	800	900	1000	1100	1200	1400	1700	1800	2000	2200	2500
Sphere depth (mm)	300	280	400	450	500	600	650	700	800	900	1000	1060	1260	1450	1600
Working height (mm)	780	650	1200	1300	1400	1500	1650	1800	1950	1800	2080	2400	2500	2730	2800
Working width (close position)mm	690	730	800	900	1000	1100	1170	1280	1360	1600	1800	2150	2200	2500	2910
Working width (open position)mm	990	1350	1200	1300	1400	1500	1790	1860	1980	2360	2700	3300	3150	3800	3250
The door opened gap (mm)	480	590	400	500	600	700	850	900	1000	900	1100	1600	1600	1810	1620
Internal dia between framework (mm)	280	370	300	400	500	600	700	750	800	1050	1040	1300	1400	1570	1780
Sphere volume (m3)	0.015	0.05	0.06	0.1	0.14	0.18	0.31	0.43	0.56	0.63	0.94	1.23	1.74	2.5	3.5
Net weight (kg)	150	260	559	565	577	589	860	925	970	1495	2400	2700	3650	5100	6350
The number of balde	3	3	4	4	4	4	4	4	4	4	4	4	4	4	5

Skid Loader Tree Spade

Product Details
