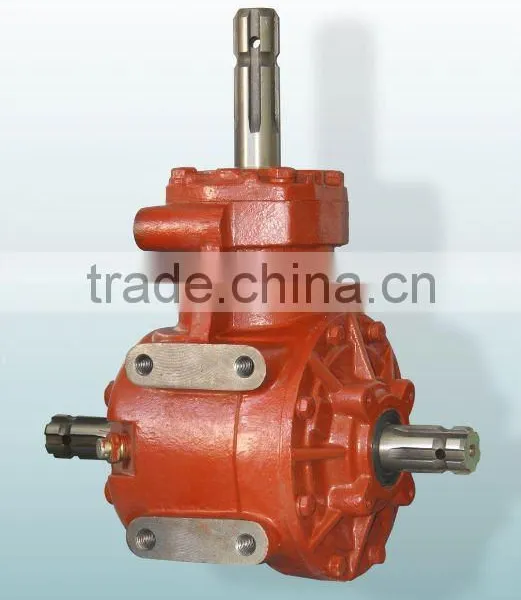

This type of gearbox is applied on rotary cutters and rotary slashers for the purpose of power divider, which is able to drive two shafts on the oposite direction.
For ratio 1.21:1 and 1.46:1, the applied power is ranging 110-125HP at 1000 RPM.
For ratio 1:1.21, 1:1.46 and 1:1.93, the applied power is ranging 65-75HP at 540RPM.
This Model is quite equivalent to the code RC61T which is popular in American market.
The design and manufacture as per cusromer's request are available.
The most prices and terms from Chinese suppliers.

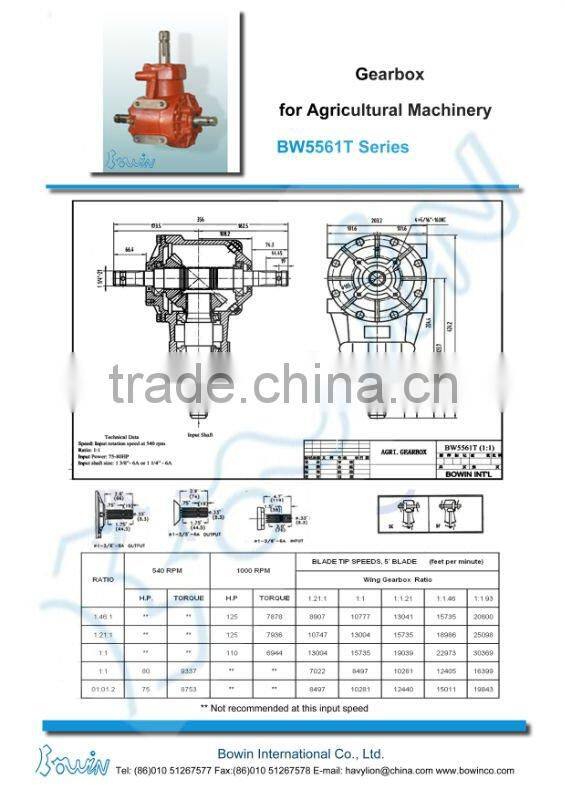

For overall dimension in details, please refer to the following sketch:
Send Inquiry to This Supplier
