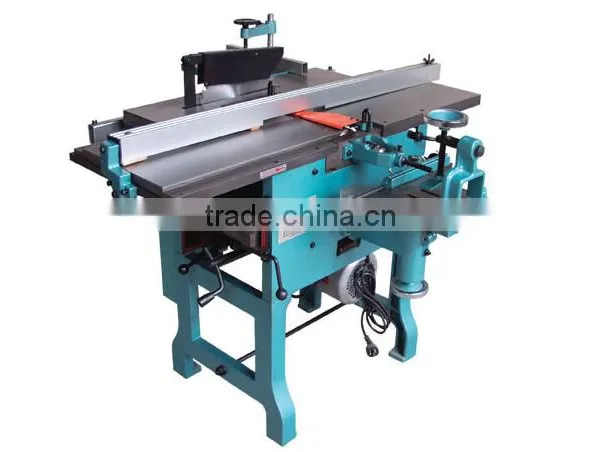

Combined woodworking machine ML393A

Specifications

Model ML393A

Maximum planing width(mm):...........................300

Maximum planing depth(mm):..............................3

Scale of thickness of press-planing(mm):..........6-120

Minimum length of press-planing(mm):...............150

Maximum sawing thickness(mm):........................85

Maximum rabbeting depth(mm):.........................10

Maximum drilling diameter(mm):..........................13

Maximum drilling depth(mm):..................60×2=120

Maximum width of square mortise(mm):..............16

Maximum width of the tenon cut (mm):..............16

Rotational speed of planer tool spindle(r/min):...3500

Motor power:..........2.2kW(220V 50Hz; 380V 50Hz)

Feeding speed(m/min):....................................6.5

Packing size(mm):...............................1246×1620×1030

Net/Gross weight(kg):..............................260/310
