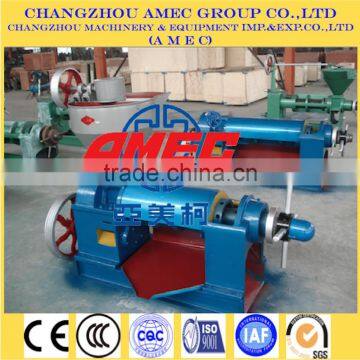

Main Structure:
This machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand, etc. The detail drawing are seen as below:
Working Principle:
The screw oil expeller utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Owing to the sprial helical pitch of screws becomes shorter and the sprial depth of screw. Becomes shallower, in the chamber the volumes between screws and pressing ring inner is smaller, pressure produced from curve saw -tooth of pressing ring inner, which oil is separated out. Oil releases from the gaps between bars and oil slots between pressing rings. Cookie release from the cookie release state.
Main Advantages:
Oil press(Model 6YL-95A, ZX10)have wide application that make use of screw-Driving force to squeeze oil from plant seeds. These oil presses, after more than ten years’ improvement and modification, are concise in construction, easy to operate, and similar in performance to the advanced kindred oil presses.
Technical Parameters:
Model | Capacity | Power | Weight | Outline Dimension |
6YL-95A | 3.5-5T/24hrs | 7.5-11kw | 565kg | 1600*700*1350mm3 |
ZX10 |
NO. | ITEMS | PARAMETERS | |
1 | Matched power | 7.5-11kw | |
2 | Grinding shaft rotational speed | 27-35r/min | |
3 | Motor triangular belt wheel | B type 3×φ160 | |
4 | Triangular belt wheel | B type 3×φ500 | |
5 | Gear reduction ratio | 55/13*34/15=9.59 | |
6 | Pressing time | About 45-50seconds | |
7 | Ratio of residual | Rape seed | ≤6.5% |
Cotton seed | ≤6% | ||
Peanut seed | About 7% | ||
