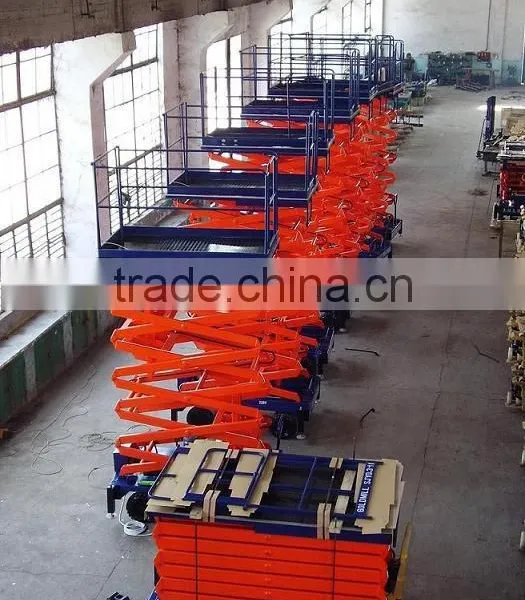

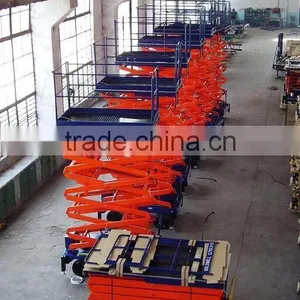

SJY Series Mobile Scissor Lift

Specifications

SJY series Mobile Scissor Lift Plateform
Fit for: installing, repairing, decorating in high place and other jobs.

Lifting capacity (kg): 300kg-2000kg

Maximum lifting height (m): 3- 11 meter

Overall dimensions (m): 2.0 x 1.2 x 2.1

working desktop dimensions (m): 1.8-2.1X1.0

Power of electric (kW): 1.1 - 3

Electric power source: 380V, three phase /220V, two phase

Self weight (kg): 1100-1800kg

Function:

1. SJY series scissor lift applicable in a lot of fields, e.g. for overhead equipment installation, maintenance and decoration, freights delivery, loading and manufactured according to JG/T5100-1998 Scissor Type Aloft Work Platform.

2. This platform lifting oil cylinder has set with unloading limiting valve, on rising to the highest state, when hydraulic system has occurred leakage, it can also stably be lowered.

3. This platform has set up double control electric lifting switch; both personnel on the ground and lifting personnel with the platform can control the rising and lowering pf the platform.

4. This platform can be equipped with (select the component) manual operated oil pump, enable it to be used without power supply.

5. This platform cant be used at the location with combustible gas and other easy combustible and explosive substances. If there is demand for the use in place with easy combustible and explosive substances, then it can only use manual operation oil pump.

 SJY0.3-11 Scissor Lift
