Specifications
Stationary Scissor Lift Platform, also can be installed on truck chassis.Scissor lift height: 5m or more
Rated load: 300kg

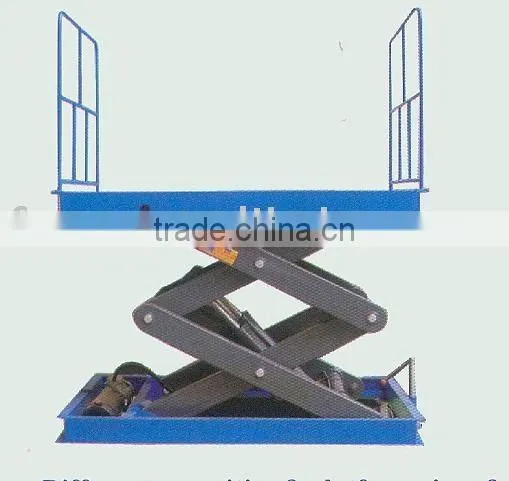

Stationary Scissor Lift Platform, Scissor Lift
Stationary Scissor lift, Stationary Hydraulic Lift Tables are prototypes of all hydraulic lifts. With more smart designs they will provide more of what you demand and more of what you expect in various applications, so you will be able to work with more efficiency on the job. This series is perfect for the production lines, assembly workshop, and automobile repairing, and so on. Besides, tell us what you specific needs, we will meet your demands as soon as possible with great efficiency.
Advantages:
(1) Excellent stability for lifting and lowering
(2) Compact design, easy to use and maintain
(3) Large capability with great efficiency
(4) More versatility
(5) No emission and low noise, environment friendly
SPECIFICATIONS (Stationary Hydraulic Lift Tables) | ||||||||||
No | Model | Capacity | Stowed Height (m) | Lifting Stroke (m) | Platform Height (m) | Platform Size (m) | Lifting Time (s) | Motor Power (kw) | Gross Weight (kg) | Power Source |
1 | SJG0.3-0.6 | 300 | 0.20 | 0.60 | 0.80 | 1.20*0.90 | 8 | 0.75 | 360 | AC-380V |
2 | SJG0.3-0.74 | 300 | 0.12 | 0.74 | 0.86 | 1.50*1.50 | 25 | 0.75 | 400 | AC-380V |
3 | SJG0.5-0.5 | 500 | 0.20 | 0.50 | 0.70 | 1.05*0.80 | 10 | 0.75 | 420 | AC-380V |
4 | SJG0.8-0.55 | 800 | 0.20 | 0.55 | 0.75 | 1.40*0.55 | 13 | 0.75 | 450 | AC-380V |
5 | SJG1-1 | 1,000 | 0.24 | 1.00 | 1.24 | 1.50*1.50 | 22 | 1.5 | 650 | AC-380V |
6 | SJG2-1 | 2,000 | 0.24 | 1.00 | 1.24 | 2.00*1.50 | 40 | 1.5 | 950 | AC-380V |
7 | SJG2-1.22 | 2,000 | 0.23 | 1.22 | 1.45 | 1.80*0.78 | 43 | 1.5 | 730 | AC-380V |
8 | SJG2-1.6 | 2,000 | 0.24 | 1.60 | 1.84 | 2.40*1.80 | 30 | 3 | 1,250 | AC-380V |
9 | SJG2.65-1.32 | 2,650 | 0.23 | 1.32 | 1.55 | 2.00*1.00 | 30 | 3 | 900 | AC-380V |
10 | SJG3-1 | 3,000 | 0.34 | 1.00 | 1.34 | 2.50*1.20 | 20 | 4 | 1,250 | AC-380V |
11 | SJG5-1.4 | 5,000 | 0.48 | 1.40 | 1.88 | 2.50*2.50 | 30 | 4 | 2,300 | AC-380V |
