Help CenterGate Valve
Related Products
Specifications
1. Gate Valve resilient-seated2. Valve size: DN50-DN600
3. Pressure rating: PN10/16/25
4. Applicable temperature: -10~100

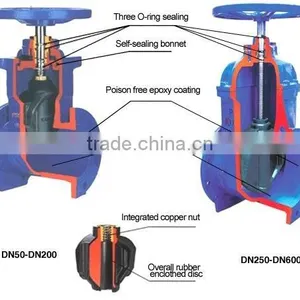

Gate valve Feature:
1. Structure design complies with BS 5163 A type, other design available.
2. Flange connection:
Acc. BS4504, Section3.2, ANSI B16.1 CLASS 125/150, B16.2 Class 250;
DIN 2532 PN10, DIN2533 PN16, DIN2534 PN25;
JIS2212, 2213, 2214.
3. Overall rubber enclothed disc.
Completely isolates metal disc from medium. Corrosive-resistant
4. Integrated copper nut provides long service life.
5. Flat bottom seat
Straight and full flow area, Reliable sealing
6. Unique bonnet structure
Simple sealing design
Self-sealing bonnet (Only available for valve size under DN250).
7. Unique stem sealing
Reliable three o-rings sealing
On-line replaceable o-ring at any position
Low operation torque
8. Compact design
Shorter Max. operation height,Light weight
9. Poison free Epoxy coating (acc. BS6920)
complies with BS 6755, Part1, 1986.
Specification:
Valve size (mm) |
DN50-DN600 |
|||
Pressure ratingMPa |
PN10/16/25 |
|||
Applicable temperature |
-10-100 |
|||
Applicable medium |
Clean water, sewage, raw waterEPDM), oilNBR |
|||
pressure |
|
|
|
|
Pressure rating |
PN10 |
PN16 |
PN25 |
|
Body |
1.5 |
2.4 |
3.75 |
|
Seat |
1.1 |
1.76 |
2.75 |
|
