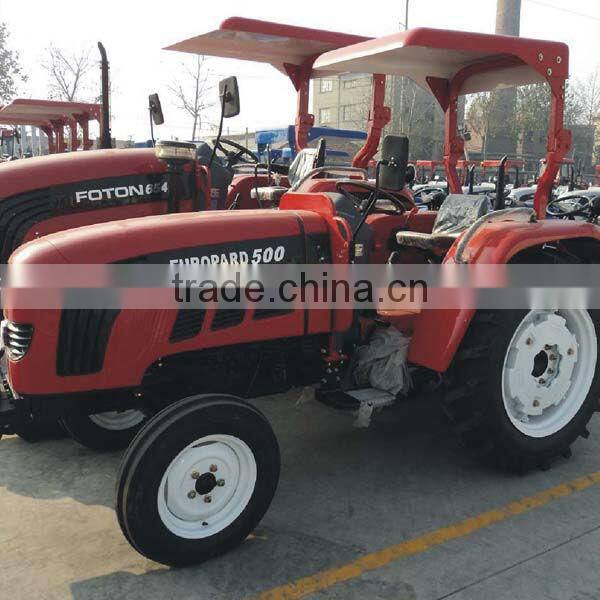

Foton FT500 New Tractor

Technical parameters

Drive type

4*2

Overall dimension(L * W * H)

3980*1650*(2130/2500)

Wheelbase (mm)

1966

Track(front/rear)

1150-1450/1200-1500

Track(front/rear) regulating method

Step/stepless

Min.Ground clearance(mm)

400

Min.operating weight (with cab)(kg)

2210

Min.operating weight (without cab)(kg)

2030

Counterweight (max)(front/rear)

144/360

Gears(forward/reverse/creeper)

8+4/8+8/16+8

Theoretical speed of each gear(forward/reverse)

2.65-37.78/2.33-30.49;2.46-32.73/2.15-28.69;0.43-5.7/0.65-1.97;2.24-29.91/1.97-26.22

Engine

Engine type

4-cylinder

Intake mode

Natural intake

Number of cylinders

4

Bore

98

Stroke

105

Displacement(L)

3.168

Engine rated power kW@rpm

36.8

Rated speed

2400

Type of air cleaner

Dry or wet type

Type of cooling system

Forced water-cooled

Max. Torque@ revolving speed (rpm)

186@1600~1800

Specific fuel consumption rate at rated conditions (g/kW.h)

≤248

Fuel tank capacity (L)

38

Steering brake system

Type of steering system

Hydraulic/mechanical

Type of steering gear

Cycloid orbitrol steering gear

Type of braking system

Disc type

Transmission system

Clutch type

Single-action/double action

Gearbox type

Two-axis mechanical gearbox

Gearbox shift mode

Shift sleeve

Type of central transmission

Spiral bevel gear type

Final transmission mode (front/rear)

Planetary gear type

Walking system

Frame type

Frameless

Tire Model (front/rear)

6.0-16/12.4-28

Working device

Type of hydraulic suspension system

Open-center, semi-separated type

Type of linkage

Three point rear linkage

Linkage classes

Class II

Lift capacity(610mm point))kN

9.1

Regulating mode

Force or position independent control

Type of PTO shaft

Rear semi-detached type

The number of PTO shaft splines

6 splines/8splines

Outer diameter of PTO shaft spline

φ35/φ38

PTO shaft speed

540/1000

Hydraulic system

Hydraulic output flow (L/min)

23
