Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > TZ04D Front End Loader With Wood Grapple

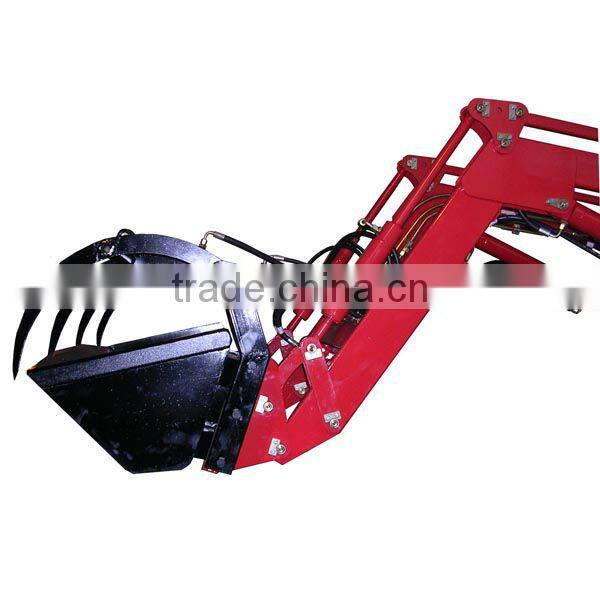

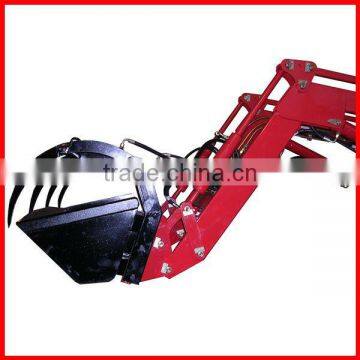

TZ04D Front End Loader With Wood Grapple

Name: TZ04D Front End Loader With Wood Grapple
Brand: FOTMA
SKU: 140839566
Availability: InStock

Hubei Fotma Machinery Co., Ltd. Gold Verified Supplier

5Yrs

TZ04D Front End Loader With Wood Grapple thumbnail-1

TZ04D Front End Loader With Wood Grapple photo-1

US$ 1,700 - 3,500 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

FOTMA

Model Number:

TZ04

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name FOTMA

Model Number TZ04

Place of Origin Hubei, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 2.2*1.1*2.1m

Rated Load 400kg

Certification no

Warranty 1 year

After-sales Service Provided Overseas third-party support available

Specifications

TZ04 front end loader with wood grapple
Matched Horsepower 30-40hp;
Rated lift capacity 400kg;
Digging depth 120mm;
SGS.

TZ04D front bucket loader

Used in Shoveling, Stacking or Short-distance transportation of loose material like mud, sand, stone or garbage.

Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service

Different work devices are optional, such as combined bucket, grating cover bucket, pallet handler, timer grab and bale fork, etc. so as to accomplish different kinds of work successfully.

Specifications for front loader

Model	TZ04D
Matched Horsepower	30-40hp
Rated lift capacity	400kg
Max dump height	2000mm
Digging depth	120mm
Bucket capacity	0.3 m3
Dump angle	42-45º
Weight	500-680kg
