Home > Products > Tractor Implements > 3 point rotary tiller
3 point rotary tiller
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Other, PTO driven rotary tiller | Power(W) | 15-40hp | |
| Certification | CE certificate, CE | Warranty | 1 year | |
| Use | Farm or Garden | Place of Origin | Hubei, China | |
| Brand Name | Fotma | Model Number | TL-85~TL-135 | |
| Weight | 200-520kgs | Dimension(L*W*H) | 900*1050*950mm | |
| After-sales Service Provided | Overseas third-party support available |
By Iron crate
Product Description
Specifications
pto Rotary Tiller 1GQN features:-Tractor PTO type.
-Fit 12-80Hp tractor, Working depth:12-20cm
-with CE certificate
SGS,ISO
1GQN series pto rotary tiller specifications:
1GQN rotary cultivator is a plowing machine matched with the tractor with 12-80 horse power. Thanks to its wide plowing breadth and symmetric mounting, the rotary tiller`s wheel mark fully covers the field. The Rotary Tiller is suitable for operations in the dry land and paddy field with reliable quality and excellent performance. The machine has the advantages of time and labor conservation, high operational quality, low cost, etc.
1. All models come with CE certificate for European market.
2. The new type PTO clutch can help to protect the blades of the rotary tiller when it hits on a hard stone.
3. Heavy duty or Light Duty type are for your choice.
Specifications for 1GQN Rotary tiller
Modle | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | ||
1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | |||
(hp) Matched power | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80~120 | ||
(cm)Working width | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | ||
(cm) Working depth | Dry land | 12-16 | 12-18 | |||||||||
paddy field | 14-16 | 14~20 | ||||||||||
NO. of blades | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 76 | ||
Type of blade | IT225 | IT245 | ||||||||||
(kg)Total weight | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | ||
192 | 210 | 220 | 230 | 248 | 405 | 420 | 435 | 450 | 450 | |||
(mm)Overal Dimension | (L) | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
(W) | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | ||
(H) | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
Linkage | (Standard three-point mounted) | |||||||||||

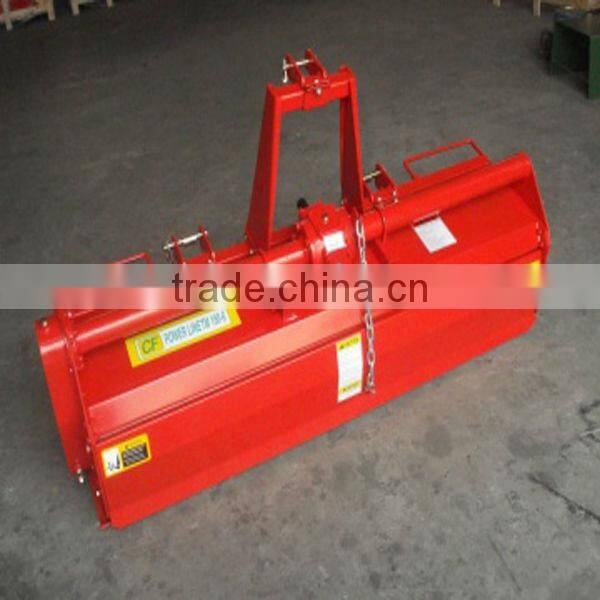

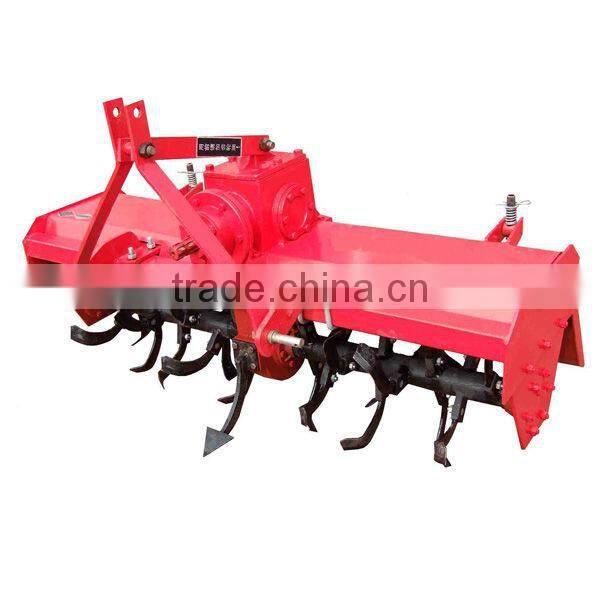

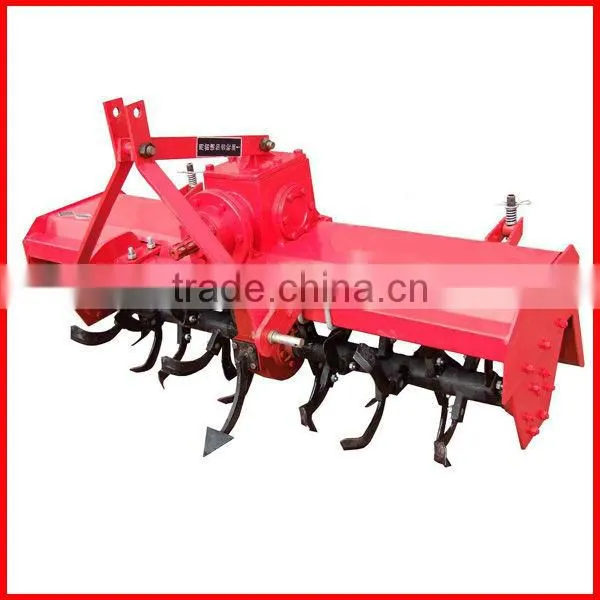

Photo for 1GQN Rotary tiller:
Photos for other rotary tillers:
TMZ rotary tiller
If there is any question about the oil press, please send emial to fotmasale01#, or fotmasale01#. Please change # to @ when sending the email.
Company Profile
Hubei Fotma Machinery Co., Ltd. is a professional manufacturer and supplier of industrial products especially in the field of farm machinery and construction equipment. Our annual turnover is over 20 million US dollars. We have highly qualified staff, including both senior employees who have more than 20 years' import/export experience and new employees who have just graduated from foreign trade colleges. "Quality First, Price Best, Service Foremost" is our business principle. We can also process the goods according to your individual needs. Featuring high quality standards, rigorous management measures and advanced technology, we have built up a fine reputation among both domestic and overseas customers. We have traded in over 100 countries in the world. We will be glad to work with worldwide new partners.
