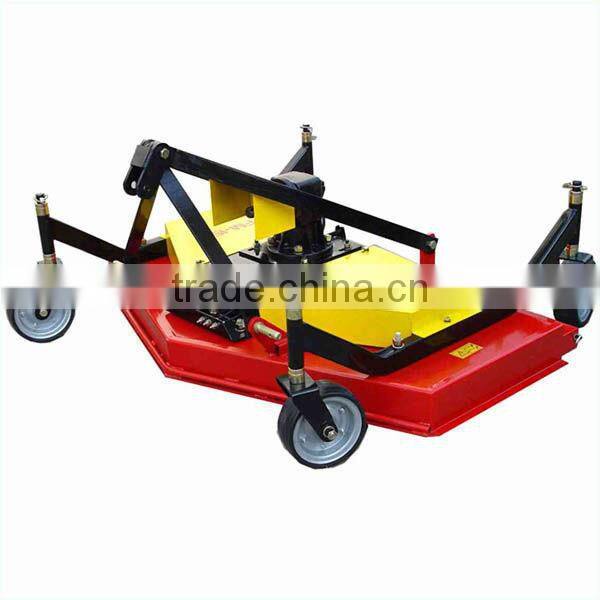

Height Adjustable FM150 Finish Mower

Name: Height Adjustable FM150 Finish Mower
Brand: FOTMA
SKU: 140839458
Availability: InStock

Hubei Fotma Machinery Co., Ltd. Gold Verified Supplier

5Yrs

US$ 600 - 850 MOQ: 1 Unit

Key Specifications

Brand Name:

FOTMA

Model Number:

FM150

Power Type:

Other, driven by tractor 3 point hitch

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name FOTMA

Model Number FM150

Power Type Other, driven by tractor 3 point hitch

Type Other, Finish mower

Feature Height Adjustable Handles

Certification CE

Forward Speed 0.3-0.6m/s

Cutting Width 150cm(60")

Specifications

Height Adjustable Finish Mower
Cutting width:120cm~180cm
For 15-70hp farm tractor
Warranty: one year;
CE, ISO9001:2008, SGS.

Height Adjustable FM150 Finish Mower

Specifications for Finish Mowers

MODELS	FM-120	FM-150	FM -180
CUTTING WIDTH(INCHES)	120cm(48")	150cm(60")	180cm(72")
DIMENSIONS	1330x860x480mm	1640x995x480mm	1930x1180x480mm
CUTTING HEIGHT(INCHES)	25-100mm (1"-4")	25-100mm (1"-4")	25-100mm (1"-4")
WORKING EFFICIENCY	4000-10000m 2	4500-12000m 2	5000-15000m 2
TRACTOR POWER	15-30hp	25-50hp	40-70hp
WHEELS SIZES	Solid Rubber Tires with ball bearings 210 x 80 mm (8" x 3")
No.OF TRANSMISSION SHAFTS	4	4	4
No.OF BLADES	3	3	3
BLADE MATERIAL	Spring Steel
BLADE SIZES LENGTHxWIDTHxTHICKNESS	422x60x6mm	522x60x6mm	623x60x8mm
BLADE SPEED	3375rpm 4470m/s	2700rpm 4425m/min	2250rpm 4401m/s
3-POINT CATEGORY HITCH	I	I or II	I or II
PTO.POWER REQUIRED	10~16kw 13~21hp	12~24kw 16~33hp	25~32kw 21~43hp
OPTIMUM P.T.O.	540rpm	540rpm	540rpm
P.T.O SPINE	6x6x900mm	6x6x900mm	6x6x900mm
MACHINE WEIGHT	195kg	215 kg	265kg
OIL TYPE	EP SAE 80W – 90
OIL AMOUNT	0.9 L (Gal. 0.20)
DISCHARGE	R-rear; S-side(left); RC-rear discharge with chain. Example: FM-150RC, Cutting 150cm rear discharge with chain
