Specifications
Disc PloughPlow model:1LY,1LYX,1LY(SX),1LYQ,1LY(T);
Number of discs:2~6;
Working depth:180~300mm;
Working width:0,4~1.5m
Disc Plough
Fetures for disc plough:
The disc plough was used for tillage on dry cultivated or fallow land, especially on high yield's manure and virgin land. Good passability and penetration, complete inversion and coverage. Small draft resistance. easy operation and adjustment All these satisfy the agricultural requirements of fine cultivation
Model |
unit |
1LYQ(T)-220 |
1LYQ(T)-315 |
1LYQ(T)-320 |
1LY(T)-325 |
1LY(T)-330 |
1LY(T)-425 |
1LY(T)-525 |
1LY(T)-625 |
Working width |
mm |
0.4 |
0.45 |
0.6 |
0.75 |
0.90 |
1.0 |
1.25 |
1.5 |
Working depth |
mm |
200 |
180 |
200 |
250 |
300 |
250 |
250 |
250 |
Discdiameter |
mm |
500 |
450 |
500(510) |
650(710) |
710 |
650(710) |
650(710) |
650(710) |
Q'ty of discs |
|
2 |
3 |
3 |
3 |
3 |
4 |
5 |
6 |
Total Weight |
kg |
150 |
180 |
190(200) |
420(430) |
470 |
480(490) |
530(560) |
570(600) |
Matched power |
hp |
>18 |
>25 |
25~40 |
>50 |
70 |
80~100 |
100~120 |
120~160 |
Linkage |
|
(Standard three-point mounted) |
|||||||

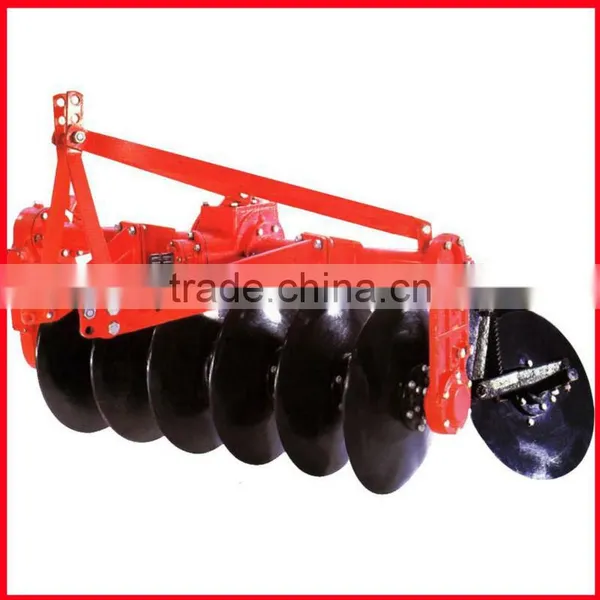

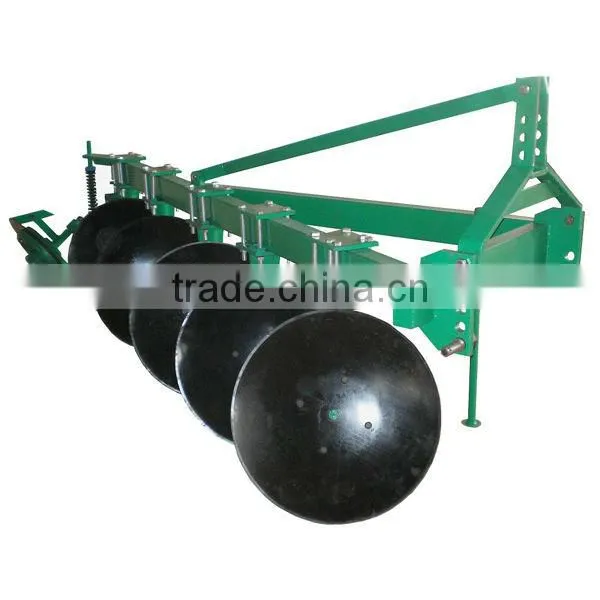

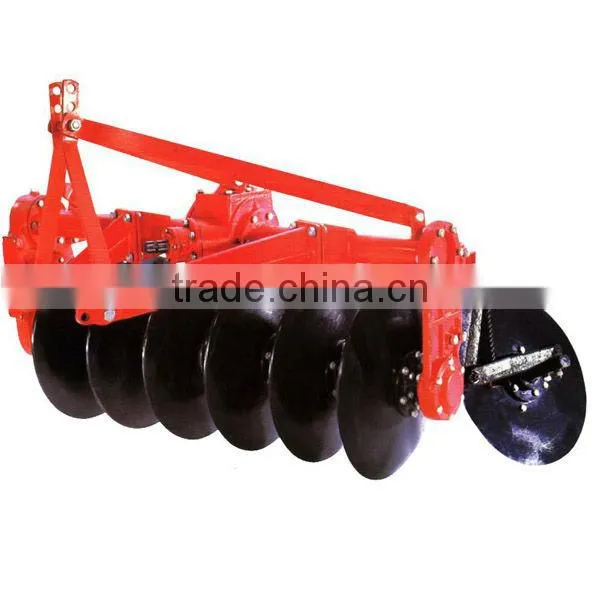

Photo for disc Plough:
