Specifications

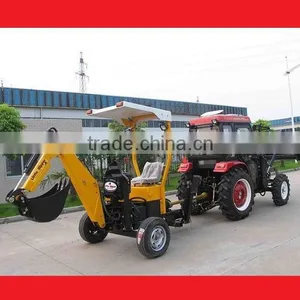

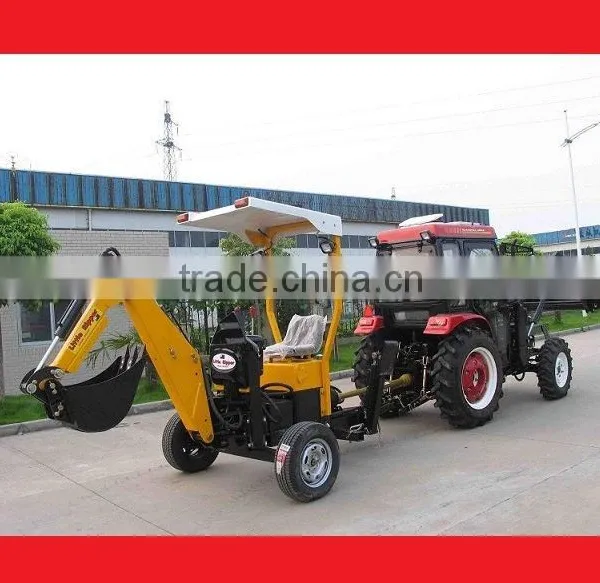

Towable backhoe:1.Powered by 11.5/13HP engine or PTO
2.Accessory: backfill blade, ripper, thumb
3.Good excavating machine
FMTB-001 towable backhoe specifications:
Modle | FMTB-001 towable backhoe | ||
Transport Overrall dimension(L×W×H/mm) | 3200x1540x2050 | ||
Net weight(kg) |
| ||
Working pressure(Mpa) | 20 | ||
Towable backhoe engine | Modle | diesel engine | |
Type | Single-cylinder4-strokeWater cooling | ||
Power(Kw/Hp) | 8.5/11.5 | ||
Speed(r/min) | 2400 | ||
Net weight(kg) | 600 | ||
Displacement | 0.598 | ||
Ignition | Transistor electronic | ||
Certificate | EPA/CE | ||
Digger specifications | Max.digger depth(mm) | 2200 | |
Max.digger hight mm | 2700 | ||
Max.digger power(kg) | 800 | ||
Max.unload hight(mm) | 1600 | ||
Transport height(mm) | 1900 | ||
Max.digger radius(mm) | 3100 | ||
Loading reach(mm) | 1400 | ||
Bucket rotation(°) | 150 | ||
Arm swing arc(°) | 140 | ||
Bucket Size | 200 | ||
Bucket Capacity | 0.03 | ||
Pump | Modle | CBN-G310 | |
Displacement volumeml/r) | 10-14 | ||
Rated pressure(Mpa) | 16-20 | ||
Rated Speed(r/min) | 2000 | ||
FMTB-002 towable backhoe specifications:
Modle | FMTB-002 towable backhoe | |||
Transport overrall dimension(L×W×H)(mm) | 3200x1540x2050 | |||
Net weight(kg) |
| |||
Working pressure(Mpa) | 20 | |||
Towable backhoe engine | Modle | Pertrol engine(JF390) | ||
Type | single-cylinder4-stroke | |||
Rated power(Kw/Hp) | 9.6/13 | |||
Rated speed(rpm) | 2500 | |||
Net weight(kg) | 31 | |||
Displacement volume(L) |
| |||
Ignition | Transistor electronic | |||
Certificate | EPA/CE | |||
Digger specifications | Max.digger depth(mm) | 2200 | ||
Max.digger hight mm | 2700 | |||
Max.digger power(kg) | 800 | |||
Max.unload hight(mm) | 1600 | |||
Transport height(mm) | 1900 | |||
Max.digger radius(mm) | 3100 | |||
Loading reach(mm) | 1400 | |||
Bucket rotation(°) | 140 | |||
Arm swing arc(°) | 150 | |||
Bucket Size | 200 | 300 | 400 | |
Bucket Capacity | 0.03 | 0.04 | 0.05 | |
Pump | Modle | CBN-G310 | ||
Displacement volume(ml/r) | 10-14 | |||
Rated pressure(Mpa) | 16-20 | |||
Rated speed(r/min) | 2000 | |||
FMTB-003 towable backhoe: driven by tractor PTO system.
With low price and high quality, our towable backhoes are very good sold in Australia, USA, South Africa, etc for earth moving, hole digging, ditch cleaning and many other applications. This excavating machine is very easy to be operated and with very less maintenance requirement. It brings big convenience to your garden work.
Using our towable backhoe, sparing your time, enjoying your life!
