Specifications
Common rail injector testerTest: Bosch, Delphi, Denso injectors
Common Rail Injector Tester
The function of a Tester for CR injectors is to provide desired signal to drive the solenoid in the CR injector being tested. Testers of two models have been designed, one for driving single CR injector and the other for driving up to 6 injectors.
The tester has two working modes, continuous injection and single injection.
The Common Rail injector tester is applied for Common Rail system repair in two aspects:
(1) To test if the CR injector is still function
To connect a CR injector to a high-pressure fuel source by a high-pressure fuel line and to the CR tester by harness. The tester is set to continuous injection mode. The CR injector is in normal condition, if it is capable to inject fuel under the driving signals by the tester.
(2) To test injector spray atomization
To connect a CR injector to a high-pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to single injection mode to allow observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged.
2. Design Features
Modulated driving signal to ensure the safety of the solenoid of the CR injector
The frequency and the pulse width of the driving signal are user adjustable.
Short circuit protection for the output circuitry of the solenoid driving tester

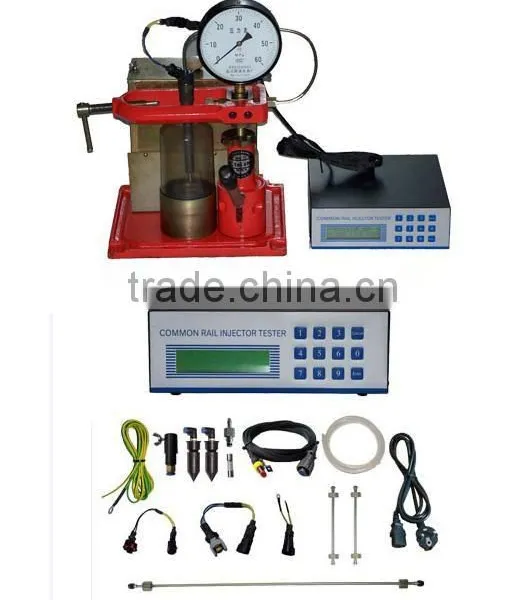

Common Rail Injector Tester with all accessories
