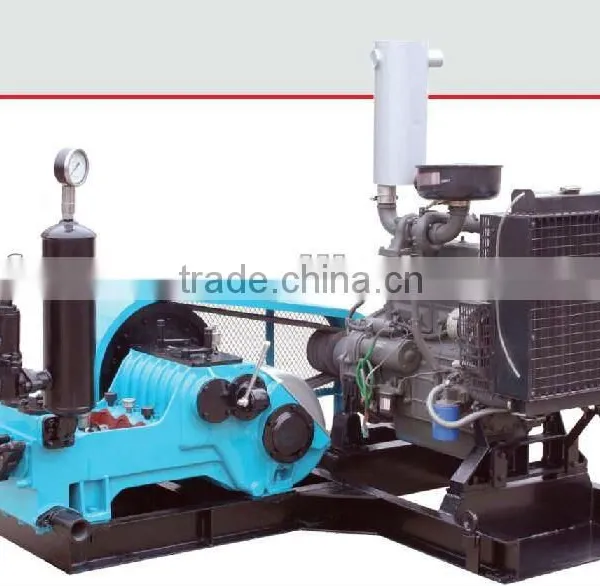

BW320 Mud Pump, 3-cylinder
US$ 10 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Bearing
Use:
Cultivators
Place of Origin:
Hubei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Bearing
Use
Cultivators
Place of Origin
Hubei, China
Brand Name
FOTMA
Model Number
BW320 mud pump, 3-cylinder
Specifications
BW320 mud pump, 3--cylinderFor hydraulic impact drilling, anger drilling, turbo drilling technology.
BW320 mud pump, 3-cylinder
| Technical Figure | ||||||||
| Type | Horizontal three cylinder single action reciprocating plunger pump | |||||||
| Travel(mm) | 110 | |||||||
| Cylinder Diameter(mm) | 80 | 60 | ||||||
| Pump Speed(min-1) | 214 | 153 | 109 | 78 | 214 | 153 | 109 | 76 |
| Displacement(L/min) | 320 | 230 | 165 | 118 | 180 | 130 | 92 | 66 |
| Pressure(MPa) | 4 | 5 | 6 | 8 | 6 | 8 | 9 | 10 |
| Volumetric Efficiency(%) | 90 | Total Enfficiency 78 | ||||||
| Power Needed(kW) | 30 | |||||||
| Large Belt Nodal Diameter(mm) | 480(C×5 | |||||||
| Speed Input(r/min) | 535 | Suctiong Height(m) 2.5 | ||||||
| Suction Pipe Diameter(mm) | 76 | Discharging Pipe Diameter 51 | ||||||
| Dimension(MM)(L×W×H) | Single Pump(Without Engine and Air Chamber) 1280×855×720 | |||||||
| Entire Pump(Without Engine and Air Chamber) 1905×1100×1200 | ||||||||
| Weight(kg) | Single Pump(Without Engine and Air Chamber) 630 | |||||||
| Entire Pump(Without Engine and Air Chamber) 1000 | ||||||||
