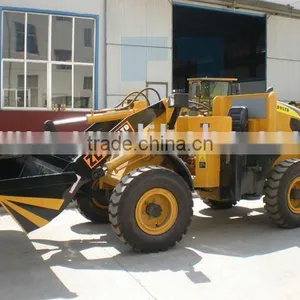

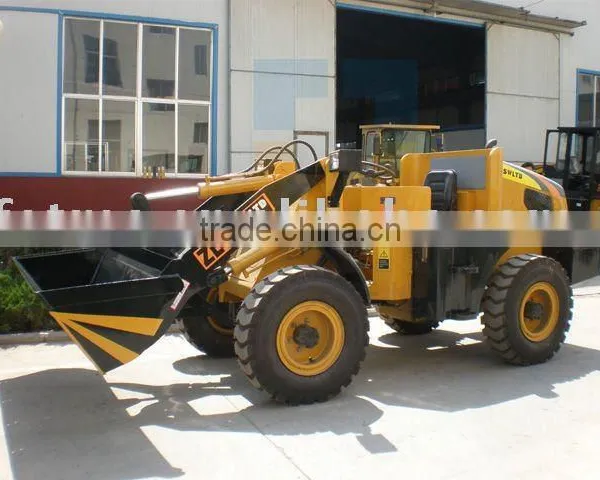

Help CenterZL18H WHEEL LOADER
Related Products
Specifications
ZL18 Wheel Loader CERate load: 1200KG
mini loader with EEC,EPA
Equipped with reliable Cummins engine
2 forward & 2 reverse power shift transmission
Combined seal cylinder obtains high seal performance and more reliability
Overall Dimension | ||
1 |
Length(with bucket on ground) |
5710(mm) |
2 |
Width(to outside of wheels) |
2010(mm) |
3 |
Bucket width |
2070(mm) |
4 |
Height(To the top of the cab) |
2975mm) |
5 |
Wheel base |
2300(mm) |
6 |
Tread |
1600(mm) |
7 |
Min. ground clearance |
342(mm) |
Main Technical Specification | ||
1 |
Rated load |
1800(Kg) |
2 |
Operating weight |
6550KG |
3 |
Rated bucket capacity |
1.0(m3) |
4 |
Max. breakout force |
57kN |
5 |
Max. dump clearance |
2520(mm) |
6 |
Dump reach |
960(mm) |
7 |
Dump angle at any position |
>450 |
8 |
Digging depth(with bucket bottom horizontal) |
146(mm) |
9 |
Min. turning radius |
|
(1) Outside of bucket |
4850(mm) |
|
(2)Center of rear wheel |
4420(mm) |
|
10 |
Pivot angle frame |
38+10 |
11 |
Oscillating angle of rear axle |
+11o |
12 |
Lifting time of bucket |
<5(sec.) |
13 |
Lowering time of bucket |
<3.2(sec.) |
14 |
Dumping time |
<2(sec.) |
15 |
Traveling speed(Km/h),2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse |
5.85 |
|
(3) 2nd gear reverse |
24 |
|
