Home > Products > Construction Machinery > LIUGONG ZL50C Wheel Loader

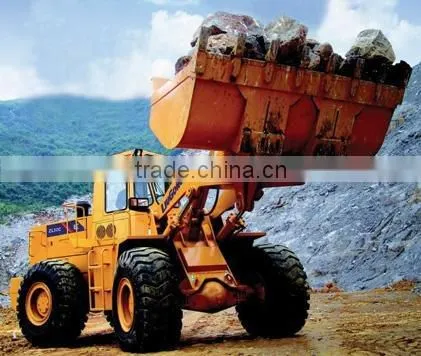

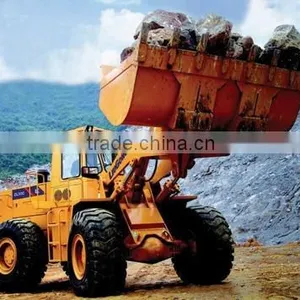

LIUGONG ZL50C Wheel Loader
- 200 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Brand Name | LIUGONG | |
| Model Number | ZL50C | Place of Origin | Guangxi, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Rated Load | 5000KG | Certification | CE | |
| Warranty | One year |
Bulk or as required
Product Description
Specifications
LIUGONG ZL50C Wheel LoaderRated load:5T
Loader bucket:2.5M3
Engine:WD615.67G-36/D6114ZGB
Model | ZL50C | |||||
Engine | Model | WD615.67G-36 | D6114ZGB | |||
Type | Water-cooled, I-arrangement, direct injection, turbocharger, 4-stroke diesel engine | |||||
Number of cylinder | 6 | 6 | ||||
Bore*stroke | 126*130mm | 114*135mm | ||||
Displacement | 9.726L | 8.27L | ||||
Rated power | 162kw(217hp) | 160kw(215HP) | ||||
Rated turn speed | 2200r/min | 2200r/min | ||||
Max. Torque | 843N.m, 1400~1500rpm | 850N.m, 1300~1450rpm | ||||
Fuel consumption | 231g/kw.h | 222g/kw.h | ||||
Starting motor | 24V, 7.5kw | 24V, 7.5kw | ||||
Alternator | 1.5kw | 1kw | ||||
Governor | Centrifugal, all speed governor | |||||
Cooling system | Forced circulation by centrifugal pump, pusher type fan | |||||
Driving system | Torque converter | Type | Double Turbine | |||
Torque ratio | 4 | |||||
Transmission | Type | Planetary type, clutch with multiple disc, full power shift, force to lubricate | ||||
Pressure of transmission | 1.1~1.5MPa | |||||
Driving axle | Major reducer | Type | Spiral bevel, 1-stage reduction | |||
Speed ratio | 4.625 | |||||
Final reducer | Type | 1-stage planetary reduction | ||||
Speed ratio | 4.875 | |||||
Speed (kw/h) | Gear 1 | Gear 2 | ||||
Forward | 0~10 | 0~34 | ||||
Reverse | 0~13 | |||||
Steering | Type | Articulated frame, full hydraulic power with flow amplified system, full-flow filtering | ||||
Steering angle | 35' | |||||
Setting pressure | 12MPa | |||||
Flow | 135.4L/min, 1680rpm | |||||
Brake | Driving brake | Caliper discs, air-hydraulic on all four wheel | ||||
Parking brake | Shoe-brake, applied by manual/air control | |||||
Emergency brake | Using parking brake, applied by air pressure control | |||||
Max. oil pressure | 12.3MPa | |||||
Air pressure | 0.71~0.784MPa | |||||
Hydraulic system | Working pump | CBZb3160 | ||||
Displacement of working pump | 160ml/r | |||||
Control valve | FPF32 | |||||
Type | Double valve | |||||
Setting pressure | 17.0MPa | |||||
Hydraulic cycle time (s) | ||||||
Raise | Dump | Lower (empty, float down) | Total | |||
6.5 | 1.5 | 3.5 | 11.5 | |||
