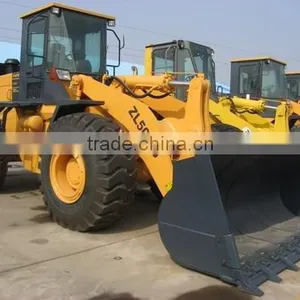

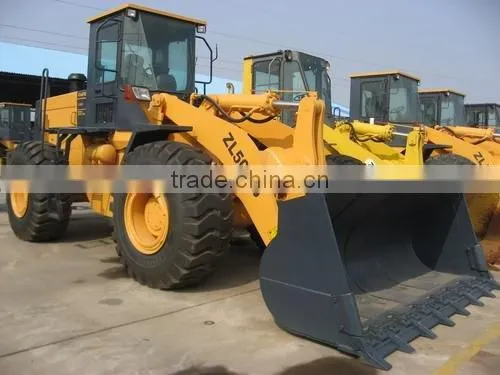

CHANGLIN ZL50G-6 Wheel Loader

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	CHANGLIN
Model Number	ZL50G-6	Type	Front Loader
Moving Type	Wheel Loader	Rated Load	5000KG

Product Description

Specifications

CHANGLIN ZL50G-6 Wheel Loader
Rated load:5T
Loader bucket:3M3
Engine:ShangChai C6121 engine

Overall Dimension

Length (with bucket on ground)

8215(mm)

Width (to outside of wheels)

2800(mm)

Bucket width

2946(mm)

Height (To the top of the cab)

3450(mm)

Wheel base

3350(mm)

Tread

2200(mm)

Min. ground clearance

450(mm)

Main Technical Specification

Rated load

5000(Kg)

Operating weight

16300KG

Rated bucket capacity

3.0(m³)

Max. Breakout force

160kN

Max. Traction

150kN

Max. Gradient ability

30⁰

Max. dump clearance

3050(mm)

Dump reach

1107(mm)

Dump angle at any position

>45⁰

Digging depth(with bucket bottom horizontal)

165(mm)

Min. turning radius

(1) Outside of bucket

6675(mm)

(2) Outside of rear wheel

5879(mm)

Pivot angle frame

40⁰

Oscillating angle of rear axle

+13^o

Lifting time of bucket

<5.8(sec.)

Lowering time of bucket

<3.8(sec.)

Dumping time

<1.2(sec.)

Traveling speed(Km/h),4 forward and 3 reverse

(1) 1st gea

6.7/6.7

(2) 2nd gear (F/R)

12.2/12.2

(3) 3rd gear (F/R)

25.6/25.6

(4) 4rd gear(F)

Diesel engine

Model

ShangChai C6121 engine

Type

Direct injection. Turbocharge. Water cooling

Rated output

158 (kW)

Inter-bore of cylinder/stroke

121/152(mm)

Total exhaust of cylinder

9.7260(L)

Model of starting motor

KB-24V

Power of start motor

7.5(KW)

Voltage of starting motor

24(V)

Rated speed

2200(r/min.)

Max. Torque

>843(N.m)

Starting type

Electric

Min. specific fuel consumption

<235(g/Kw.h)

Engine specific oil consumption

0.95-1.77(g/Kw.h)

Net weight

960(Kg)
