Home > Industrial Equipment & Components > Compressor > Compressor Unit > Pisiton Type Compressor Mini Compressor Air Mining Compressor
Pisiton Type Compressor Mini Compressor Air Mining Compressor
US$ 1,140 - 1,290
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Portable
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lower Noise Level Mining Mobile Air CompressorUS$ 1,140 - 1,290MOQ: 1 Set -
Cost Efficiency, Mining Diesel Mobile Screw 20 Bar Air CompressorUS$ 1,140 - 1,290MOQ: 1 Set
-
Exquisite Workmanship Mining Piston Air Compressor 20 BarUS$ 1,140 - 1,290MOQ: 1 Set
-
Portable Mining Piston 25KW Air Compressors 35HPUS$ 1,140 - 1,290MOQ: 1 Set
-
Belt--driven Air Compressor With 11kw/15HP,mining Air CompressorUS$ 1,140 - 1,290MOQ: 1 Set
Condition
New
Type
Piston
Configuration
Portable
Power Source
Diesel
Lubrication Style
Lubricated
Mute
No
Place of Origin
Zhejiang, China
Brand Name
KAISHAN
Model Number
W-2.6/7;W-3/5;W-1.8/5...
Voltage
380v/3ph/50hz(or Customized)
Dimension(L*W*H)
1800*870*1235mm
Weight
480KG
Certification
IAF; GC
Warranty
1year
After-sales Service Provided
No overseas service provided
KAISHAN digging,construction,mining air compressor,diesel portable piston air compressor
Diesel-engine Portable Mining Piston Air Compressor
Main Features:
-Value plate and spring strip: Made of special steel from Sweden and after special treatment; high efficient and reliable.
-Piston ring:Special design, integral casting; excellent flexibility, lowest lubricating oil consumption.
-Cylinder:Made of boron cast iron; wear resistant; special suitable for dust condition.
-Cylinder cover: Extrution process adopted; streamlined external appearance; good heat emission performance
-Crankshaft: Made from ductile cast iron, rare magnesium alloy after heat treatment and surface quenching; excellent performance.
The specification of Diesel-engine Portable Mining Piston Air Compressor
| Model | Working pressure | Capacity | Motor power | Cylinder Dia.φ * Qty | Air tank | Weight | Dimension | |
| bar | m³/min | kw | hp | mm * pcs | L | kg | mm | |
| W-1.8/5-J | 5 | 1.80 | 15 (S1100) | φ100*3 | 75 | 300 | 1700*710*1000 | |
| W-1.8/5 | 5 | 1.80 | 15 (S1100) | φ100*3 | 100 | 320 | 1700*710*1000 | |
| W-2/5 | 5 | 2.00 | 15 (S1100) | φ115*3 | 140 | 450 | 1700*810*1050 | |
| W-2.6/5 | 5 | 2.60 | 20 (S1110) | φ115*3 | 140 | 490 | 1780*870*1235 | |
| W-2.8/5 | 5 | 2.80 | 22 (S1115) | φ115*3 | 200 | 550 | 1780*870*1235 | |
| W-2.8/5G-D | 5 | 2.80 | 15 | φ115*3 | 200 | 550 | 1780*870*1235 | |
| W-2.8/5G-ZD | 5 | 2.80 | 15 | φ115*3 | 200 | 550 | 1780*870*1235 | |
| W-3/5 | 5 | 3.00 | 22 (S1115) | φ125*3 | 220 | 600 | 1800*900*1300 | |
| 2V-3.5/5 | 5 | 3.50 | 25 (S1125) | φ115*4 | 240 | 650 | 1800*950*1300 | |
| 2V-3.5/5-ZD | 5 | 3.50 | 18.5 | φ115*3 | 240 | 650 | 1800*950*1300 | |
| 2V-4/5 | 5 | 4.00 | 25 (S1125) | φ120*4 | 240 | 700 | 1800*950*1300 | |
| 2V-4/5-ZD | 5 | 4.00 | 18.5/22 | φ120*4 | 240 | 700 | 1800*950*1300 | |
| W-3.2/7-ZD | 7 | 3.20 | 18.5 | φ125*3 | 230 | 550 | 1920*960*1350 | |
| W-3.2/7-D1 (single vessel) | 7 | 3.20 | 18.5 | φ125*3 | 230 | 550 | 1960*800*1390 | |
| W-1.8/7 | 7 | 1.80 | 15 (S1100) | φ100*3 | 140 | 450 | 1100*820*1100 | |
| W-1.8/7-D | 7 | 1.80 | 11 | φ100*3 | 140 | 450 | 1100*820*1100 | |
| W-2.6/7 | 7 | 2.60 | 22 (S1115) | φ125*3 | 200 | 480 | 1800*870*1235 | |
| W-2.6/7-D | 7 | 2.60 | 15 | φ125*3 | 200 | 480 | 1800*870*1235 | |

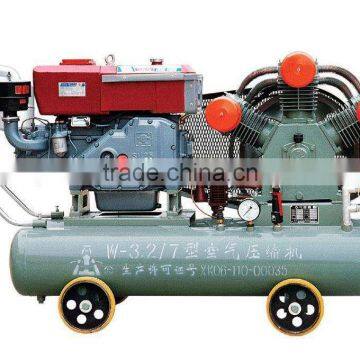

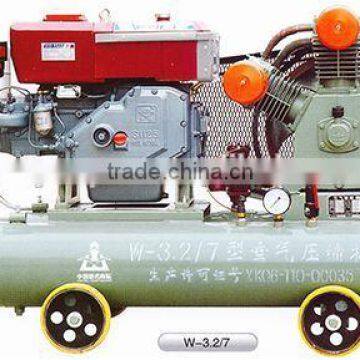

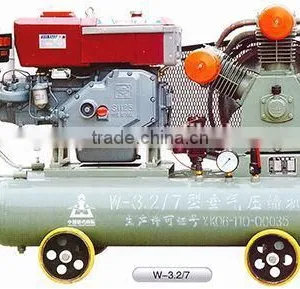

| W-3.2/7 | 7 | 3.20 | 25 (S1125) | φ125*3 | 230 | 550 | 1920*960*1350 | |
| W-3.2/7-D | 7 | 3.20 | 18.5 | φ125*3 | 230 | 550 | 1920*960*1350 | |
Detailed Photoes:
Application:
For more details, pls contact me.
