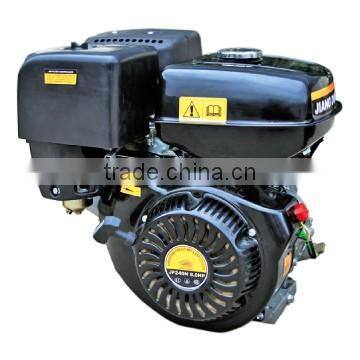

Home > Products > Engine > Hot Sell Gasoline Engine - JF240N JF270N (8.0/3600 4-stroke 25 degree inclined single cylinder with Air-cooled)
Hot Sell Gasoline Engine - JF240N JF270N (8.0/3600 4-stroke 25 degree inclined single cylinder with Air-cooled)
- Guangzhou
- Credit Card
You May Like
Product Details
| Condition | New | Usage | Other, Boat/Automobile/other | |
| Fuel | Gasoline | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Other, Recoil and hand-operated/Electric | Brand Name | Jiangdong | |
| Model Number | JF240N JF270N | Dimension(L*W*H) | 460*400*445 | |
| Weight | 25~26kg | Certification | CE, EPA, CARB, ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot Sell Gasoline Engine - JF240N JF270N (8.0hp/3600rpm 4-stroke 25 degree inclined single cylinder with Air-cooled)
Specification | ||
Model | JF240/E | JF270/E |
Engine type | 4-stroke, 25°inclined, single cylinder with Air-cooled | |
Bore x Stroke (mm/inch) | 73×58/2.87×2.28 | 77×58/3.03×2.28 |
Displacement (ml) | 242 | 270 |
Compression ratio | 8.2:1 | |
Starting output (HP/rpm) | 8.0/3600 | 9.0/3600 |
Max. torque (N.m/rpm) | 16.7/2500 | 19/2500 |
Ignition system | Non-contact transistorized ignition (T.C.I.) | |
Start mode | Recoil and hand-operated/Electric start | |
Air cleaner | Semi-dry, oil bath, dual, double silent and cyclone type | |
Fuel tank capacity (L/gal) | 6/1.6 | |
Fuel consumption (g/HP-hour) | 290 | |
Engine oil capacity (L/gal) | 1.1/0.29 | |
Dimensions (L × W × H) (mm/inch) | 460×400×445/18.1×15.7×17.5 | |
Net weight (kg/lbs) | 25/55 | 26/57.2 |
Gross Weight (kg/lbs) | 27/59.4 | 28/61.6 |
20/40FT unit | 360/720 | 360/720 |
Gasoline engine
- Long service life of engine, maintenance frequency reduced and noise reduction
- Reasonable gasoline engine to ensure more complete combustion and stronger power output
- Reasonable air-fuel ratio of carburetor
- CAE-analyzed high strength engine components to ensure 800h failure-free operation
Our Group:
JD GROUP (JIANG DONG GROUP) is an enterprise group established in 1945, publicly-traded company, famous for the design, development and production of small and medium diesel and gasoline engines, along with numerous products equipped with these engines such as tractors, portable generators and high volume water pumps.
Currently, JD provides products and services to over 80 countries and regions through its sales and service networks. Domestically, JD’s strong manufacturing capability, along with its cooperation with many other Chinese manufacturers, has allowed it to become a highly successful trading company exporting products throughout the world.
