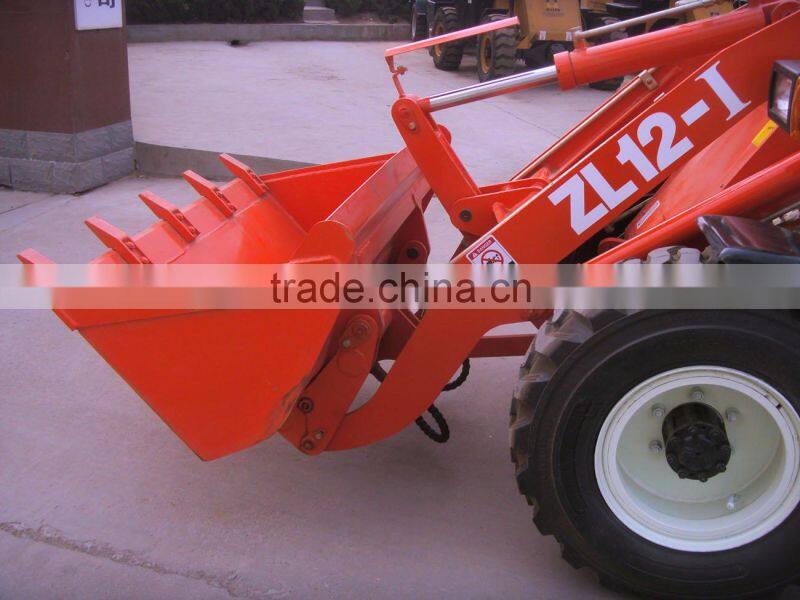

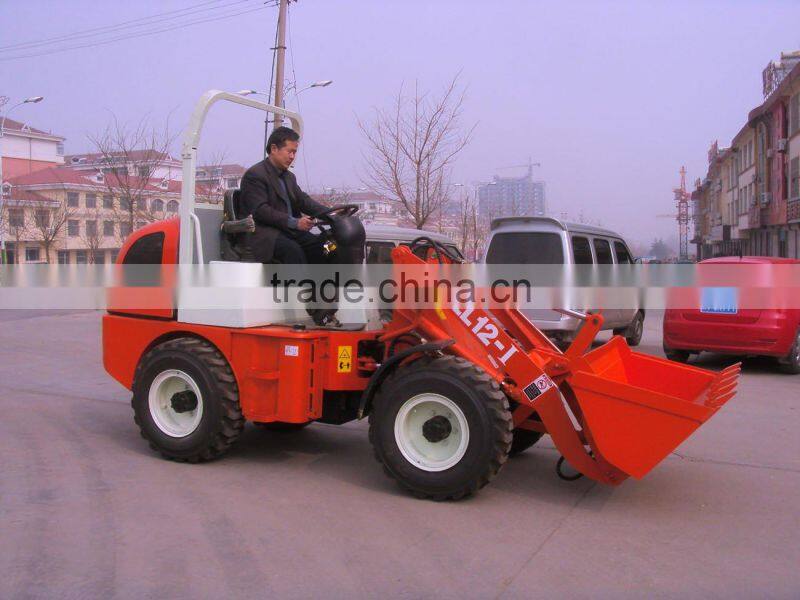

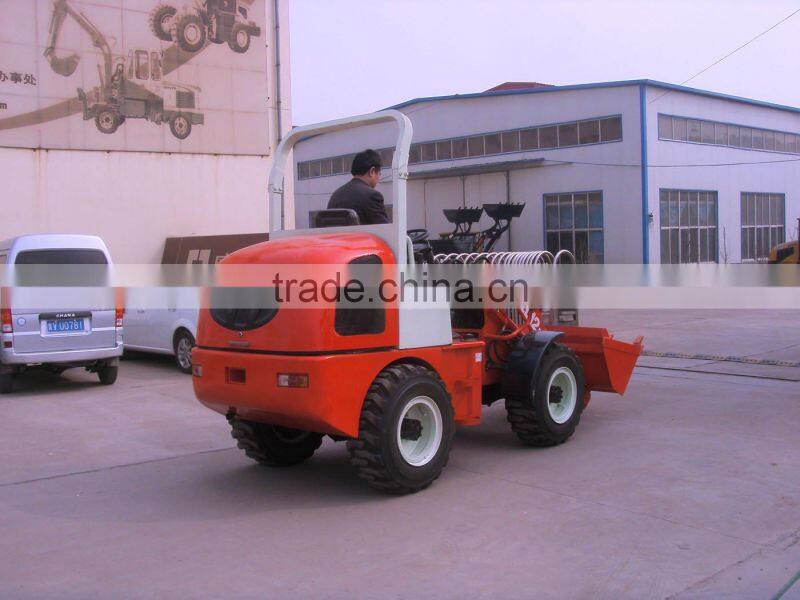

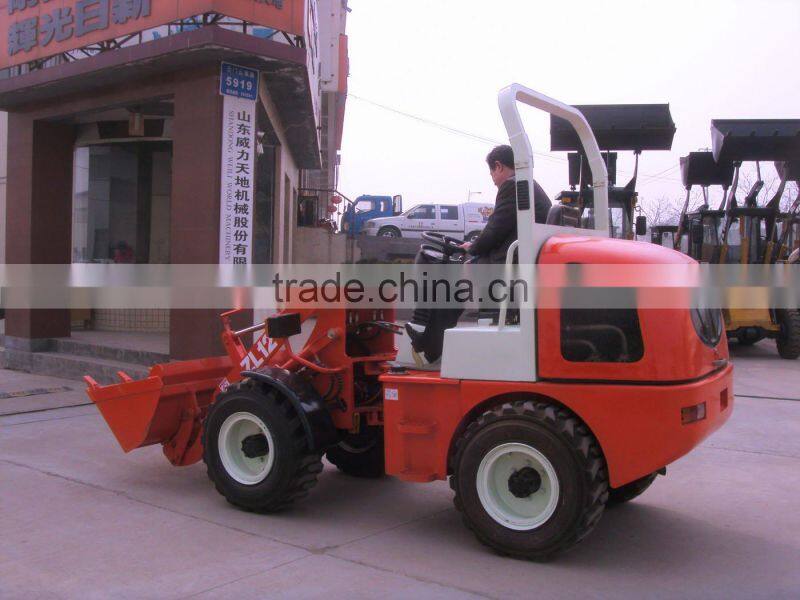

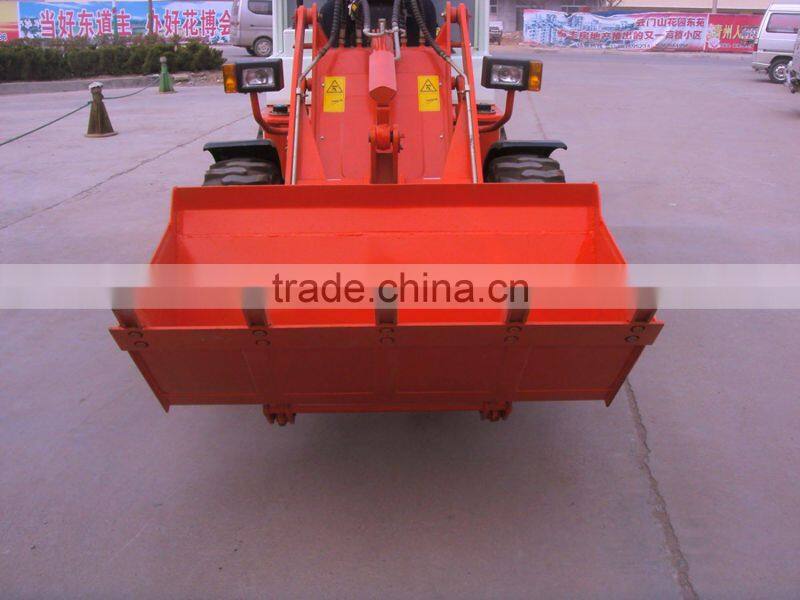

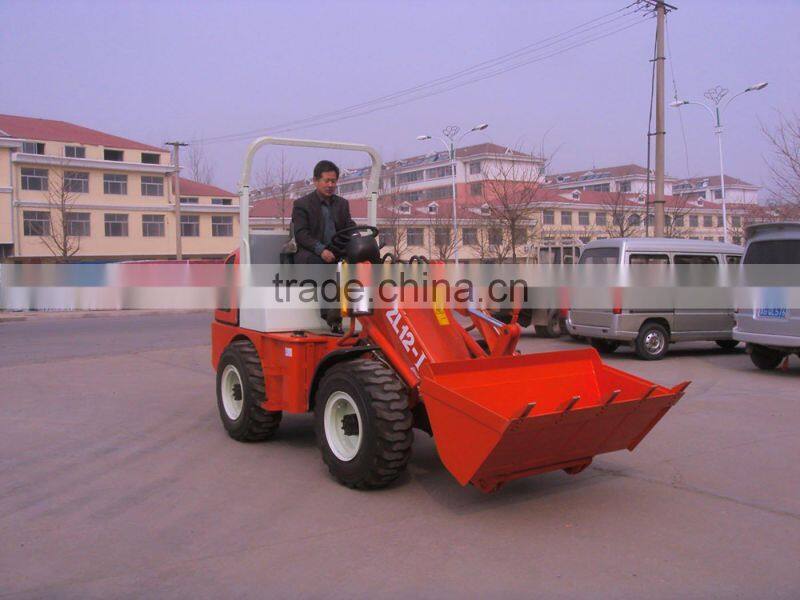

ZL12-I Mini Loader With CE

Specifications

mini loader

ZL12-I is our new model , Our engineer and workers had pay more attention for the quality.

Control system, have much higher cost performance, used important Japanese YANMAR engine, CE standard , design novel and unique.

ZL12-I wheel loader Specifications:

Rate load (kg):1200

Bucket capacity: 0.6

Wheel Distance (mm):1170

Axle-base(mm):1790

Loader clearance radius (mm):4450

Min Base to the ground (mm):240

Dump height: (mm):2300

Distance acc to the height (mm):1080

Time of Raise(s):4

Hydraulic cycle time(s):9

Turns to pick the strength most greatly (KN):32

Drive Means: Four Wheel Drive

Operating weight (kg):2500

Overall dimensions(Length*width*height)(mm):4530*1500*2500

Biggest deflection angle°:35°

 Engine Model: YANMAR 404D-22

Engine Rated power (k w):35.7

Engine Rated output t (rpm):2600
