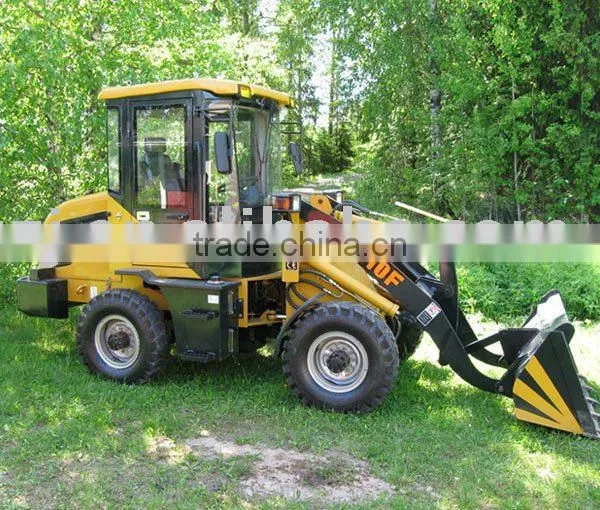

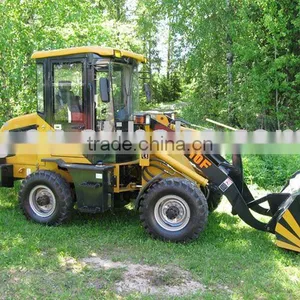

Help CenterMini Wheel Loader 10F With CE
Related Products
Specifications
Mini wheel loader1) CE,EPA;
2) Pilot control
3) Engine: Xinchai, Changchai; Weichai
4) can be choice CE engine or e3 engine
Mini wheel loader
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Specifications of ZL10A Wheel Loader:
1.0 Engine Details
Specifications of ZL10F Wheel Loader
1. Rated Load Capacity: 1000kg
2. Bucket Capacity: 0.5 m3
3. Wheel Distance: 1400mm
4. Axle-base: 1580mm
5. Min. Radius: 3890mm
6. Min. Base to the Ground: 230mm
7. Dumping Height: 2200mm
8. Distance according to the height: 850mm
9. Raising Time: 4 second
10. Hydraulic Cycle Time: 9 second
11. Max. Breakout Force: 3KN
12. Driving Means: Four Wheel Driving
13. Driving System: Static Hydraulic Driving
14. Overall Dimensions: 4750mm*1720mm*2380mm
15. Engine Model: Changcai 4L68
16. Engine Power: 37 KW
17. Engine Rated Output: 2200rpm
18. Tyre Size: 18cm(horizontal width)/ 17cm( upright width)/ 78cm(diameter)
