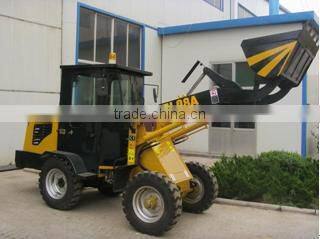

ZL08A Front Loader With CE Mark

Specifications

front loader

1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

Specification of ZL08A Wheel Loader

1.0 Engine Details

(1) Model: Changcai L22

(2) Engine type: In-line arrangement, water-cooled, one-cycle diesel Engine

(3) Rated Power: 15.5KW (21.08 HP)

(4) Rated Speed: 2200 r/min (rpm)

2.0 Steering System

(1) Cycloid full hydraulic steering system: BZZ-80

(2) System Pressure: 10MPa

3.0 Bucket

(1) Bucket Capacity: 0.4 m3

(2) Bucket width: 1300mm

(3) Max. Breakout Force: 21KN

(4) Rated Load: 800kg

(5) Operating Weight: 2000kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4480mm

(2) Overall Height

(a) Ground to Cab Top: 2200mm

(b) Ground to exhaust pipe: It is below from the top of cabin

(3) Overall Width: 1400mm

5.0 Operating Specifications

(1) Drive Means: Rear-wheel drive

(2) Min Turning Radius: 3000mm

(3) Driving System: mechanical

(4) Dumping Height: 2300mm

(5) Dumping Reach at max height: 900mm

(6) Min the ground distance: 220mm

(7) Time of raise: 4.5sec.

(8) Hydraulic cycle time: 9second.

6.0 Brake System

(1) Service Brake: Mechanical brake

(2) Parking Brake: Hand operated

7.0 Tyre

(1) Model: 7.50-16 (2) Width: 18cm (3) Diameter: 78cm

8.0 Wheelbase: 1620mm

9.0 Track: 1160mm
