Specifications
with CE certification
FFFeatures

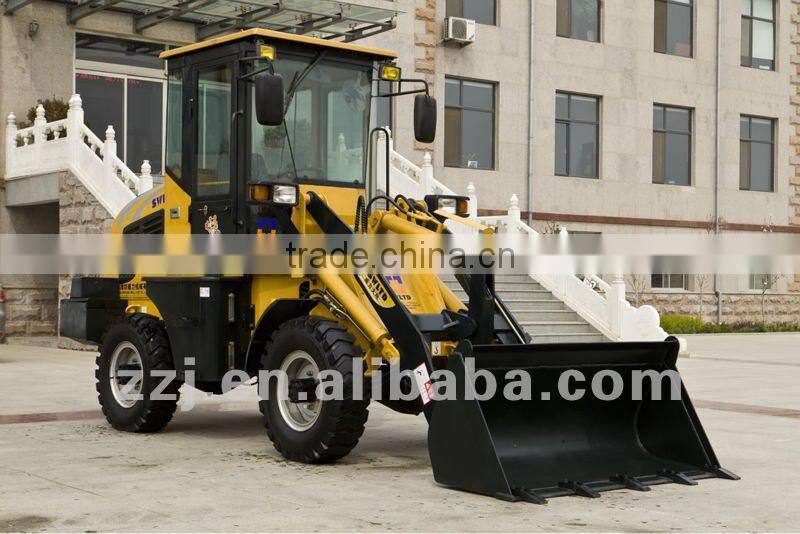

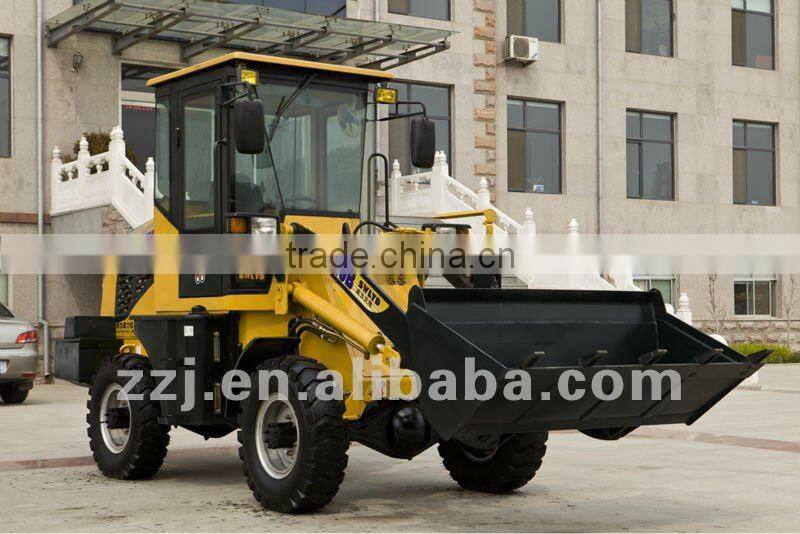

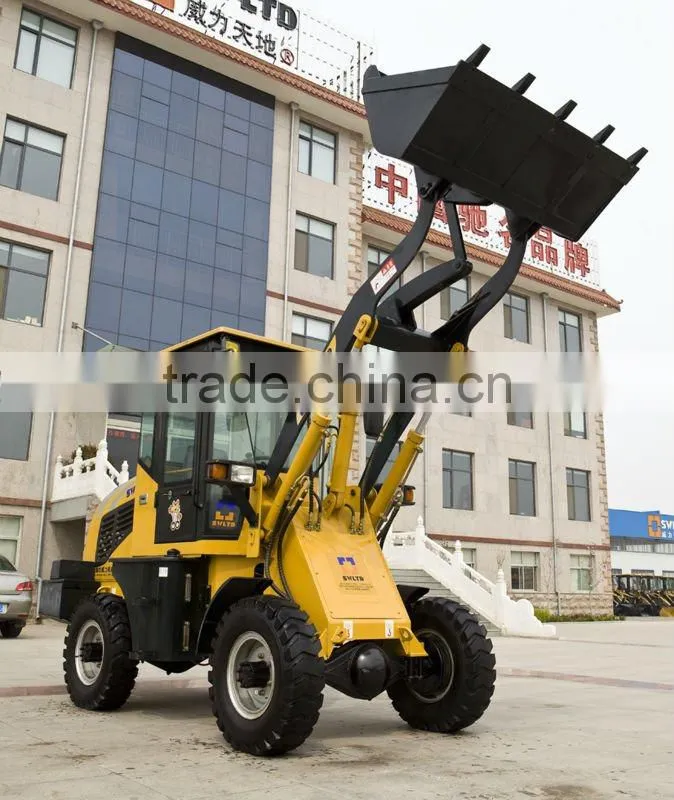

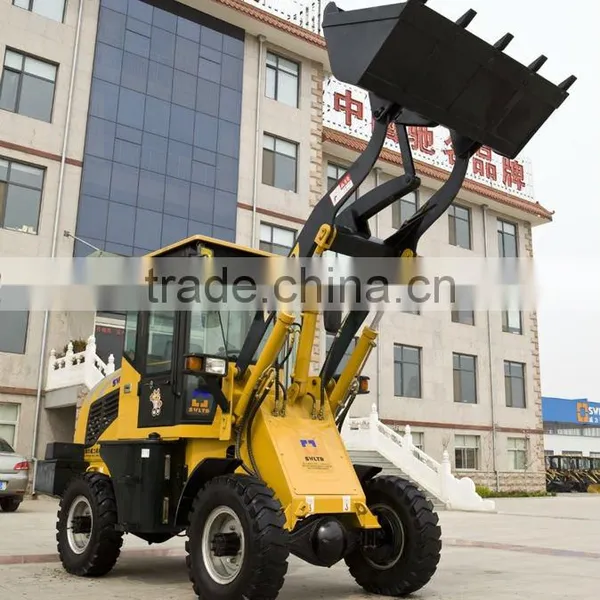

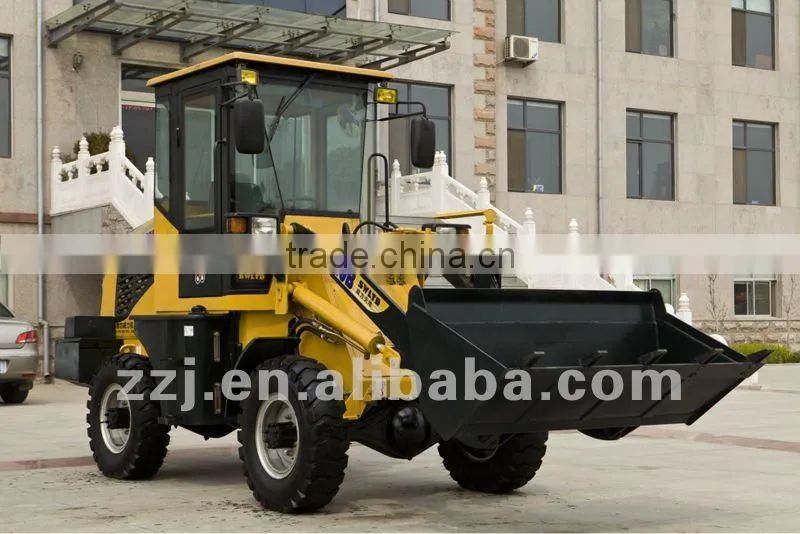

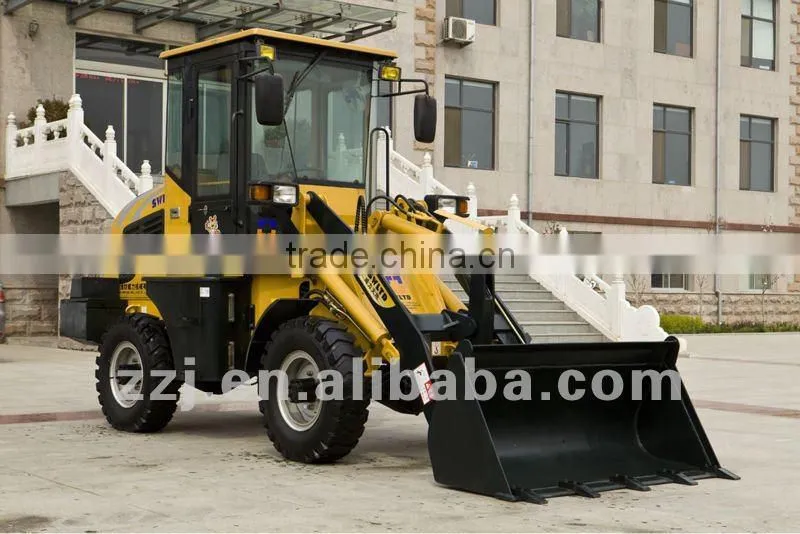

1.The ZL10B wheel loader has a high-reliability torque converter,gearbox,drive axle and brake system.
2.Wth the high-reliability engine,the wheel loader can lower the oil consumption,noise and emissions.
3.The wheel loader uses the hard structural parts and powerful working device to strengthen the excavating force.
4.The wheel loader uses an advanced hydraulic systerm and rigid steel structure.
5.Adjusting the swinging angle of high and rear axle,the wheel loader can smooth the operations in narrow spaces or on rugged sits and so on.
Cab
The cab of our wheel loader has the advantages of large space, low noise,comfort and safety,easy operation,dustproof,sound insulation,vibration reduction,UV protection and so on.It is equipped with a full rear -view mirror.It has the molding and high-quality seats made by professional manufacturing technology and featured damping suspension.
Main technical parameter
| Item | Parameter | Note |
| Rated load(kg) | 1000 | |
| Bucket capacity(m3) | 0.5 | |
| Wheel tread(mm) | 1320 | |
| Wheel base(mm) | 2020 | |
| Min turning raduis(mm) | 4200 | |
| Min ground clearance(mm) | 220 | |
| Dumping height(mm) | 2450 | |
| Corresponding dumping reach(mm) | 1050 | |
| Lifting time(s) | 4.5 | |
| Hydraulic cycle time(s) | 9 | |
| Maximum excavating force(KN) | 24 | |
| Drive mode | Four-wheel drive | |
| Machine weight(kg) | 2880 | |
| Overall dimensions(mm)(Length*width*hight) | 4930*1600*2570 | |
| Engine model | Changchai ZN485Q | |
| Rated power of engine(kw) | 26 | |
| Rated speed of engine(rpm) | 2200 |
Weili World is a China-based wheel loader manufacturer and supplier .Since our inception,we have been manufacturing rim,vehicle frame and loader bucket,etc.for American Caterpillar Company(CAT).We offer high quality wheel loaders,forklifts,four drive cross-country forlifts,rims,and so on.Our high quality products are offered at competitive prices.We can complete the full chain of manufacturing rim,wheel loader part,etc.right hear in China.Our lower manufacturing cost can save your purchasing cost.
